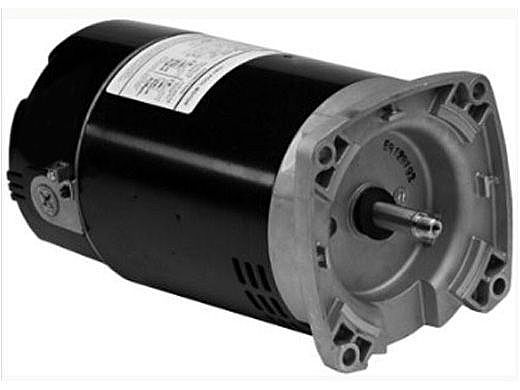

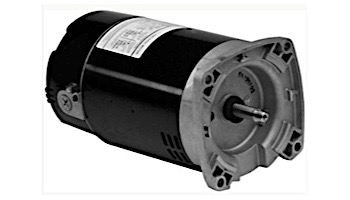

Home Replacement Square Flange Pool Motor 1.5HP | 230V 56 Frame Full-Rated | Two Speed Energy Efficient Switch Design B983 | EB983

Replacement Square Flange Pool Motor 1.5HP | 230V 56 Frame Full-Rated | Two Speed Energy Efficient Switch Design B983 | EB983

Call us to order.
Replacement Square Flange Pool Motor 1.5HP | 230V 56 Frame Full-Rated | Two Speed Energy Efficient Switch Design B983 | EB983
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Triple Bearing Protection
  • Continuous Duty
  • Sealed Ball Bearings
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 13.05
  • Weight: 42



NOTE:  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
