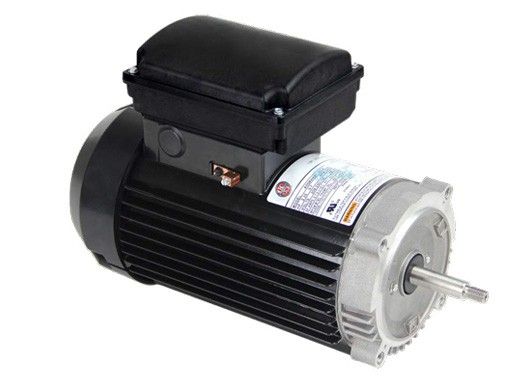

Home Nidec Motor Corp Aqua Shield Pro TEFC C-Flange Threaded Pool & Spa Motor | Premium High Efficiency | 1.65 THP 115/208-230 V 56J Frame | TET165

Nidec Motor Corp Aqua Shield Pro TEFC C-Flange Threaded Pool & Spa Motor | Premium High Efficiency | 1.65 THP 115/208-230 V 56J Frame | TET165

$262.43
Nidec Motor Corp Aqua Shield Pro TEFC C-Flange Threaded Pool & Spa Motor | Premium High Efficiency | 1.65 THP 115/208-230 V 56J Frame | TET165
Nidec Motor Corp Aqua Shield Pro TEFC C-Flange Threaded Pool & Spa Motor | Premium High Efficiency | 1.65 THP 115/208-230 V 56J Frame | TET165
What benefits does the Aqua-Shield PRO™'s IPX5 enclosure provide your customers? First, the aluminum fin construction provides additional corrosion resistance and helps dissipate heat which promotes cooler running motors. Second, this product line of motors is designed and tested and is protected against low pressure water jets hitting the motor from any direction. This motor prevents the intrusion of moisture from getting inside the motor near the electrical components and this helps reduce winding failures even in the most extreme environments. If your customers have pumps and motors operating in wet, humid environments, the AQUA-SHIELD PRO® pump motor is what you need.

Features:
  • Shaft threads – (square flange) 1/2-20 UNC-2A or (C-flange) 7/16-20 UNF-2A
  • 50°C ambient
  • 1081 design
  • Continuous duty
  • Class B insulated
  • Totally enclosed, fan cooled, IPX5 enclosure
  • 300 series stainless steel shaft
  • Thermally protected
  • 5.5" diameter frame
  • Triple bearing protection

Top mounted conduit box: Easy to access wiring compartment make install easier than ever

Premium powder coating: Provides a longer lasting finish for corrosive environments

208 voltage rated: Rated to operate during voltage sags and in low voltage and rural areas

Finned aluminum frame: Aluminum fins are naturally corrosion resistant and help dissipate heat promoting cooler operation

Voltage selection switch: Easily switch voltage on dual voltage models

Totally enclosed construction: Prevents the intrusion of outside air, debris, and moisture which can help reduce winding failures which is the #1 cause of motor failure

Total HP rated: Ratings in THP make finding the direct replacement motor easy

Run Capacitor Design: Removes the start switch which is the leading cause of a no start condition

Specifications:
Model No Total
Horsepower
RPM Volts Frequency THP Amps Motor Frame Length
Less Shaft
Weight
TET125 1.25 3450 115/208-230V 60 5.9-5.5/11.0 56J 12.84 26.50
TET165 1.65 3450 115/208-230V 60 8.1-7.2/14.4 56J 12.84 29
TET225 2.25 3450 115/208-230V 60 10.5-9.4/18.8 56J 12.84 31


Brand: US MOTORS
