Home Pool Replacement Pump Motors Threaded Shaft 56 Round Frame Motors Replacement Threaded Shaft Pool Motor 1HP | 230V 56 Round Frame Full-Rated | Two Speed with Timer B2975T | EB2975T
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

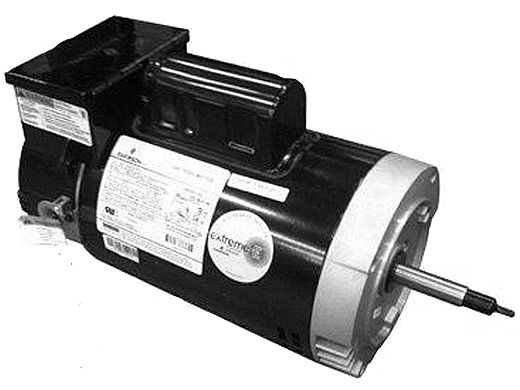

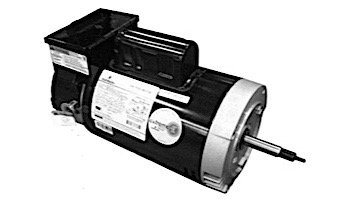

Replacement Threaded Shaft Pool Motor 1HP | 230V 56 Round Frame Full-Rated | Two Speed with Timer B2975T | EB2975T

Replacement Threaded Shaft Pool Motor 1HP | 230V 56 Round Frame Full-Rated | Two Speed with Timer B2975T | EB2975T
$319.61

Quantity:
Shipping Flat Rate Shipping $24.95
  • Premium Energy Efficient, Full Service Factor, C-Flange Motor
  • Only Minor Programming Required
  • Includes Freeze Sensor
  • Meets Applicable Legislative Regulations
  • Designed for Quiet Operation
  • 56 Frame Available in Square Flange & C-Face Mounting Configurations
OVERVIEW
This motor and timer is an easy-to-install two-speed pool pump motor with an integrated programmable timer, designed to achieve maximum energy efficiency and utility dollar savings.

Easy Installation
Drop-in design allows for fast replacement of your existing pool motor.

Easy Programming
Supplied with default speed settings - Just set the time and day of the week and the timer does the rest! To customize your speed settings, provide on and off times for Low and High speeds.

Energy Efficient
The timer mounted on the motor makes it easy to program operating times and flow rates for maximum energy savings.

Motor Features:
  • Two Compartment
  • Shaft Threads - (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Open Drip-Proof
  • Sealed Ball Bearings
  • Switchless Design
  • 303 Stainless Steel Shaft
  • Thermally Protected
  • 6.5" Diameter Frame
  • Fully Integrated Motor Control
  • Program for Low & High Speeds
  • Two Settings - Mon-Fri & Sat/Sun
  • High/Low Speed Override
  • Freeze Sensor
  • Single Phase Motor
  • Meets Title 20 Legislation
  • Frequency: 60
  • Length Less Shaft: 12.27
  • Weight: 33



NOTE:
  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.




Brand: EMERSON
SPECIFICATIONS
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Great pump
Convenient built in timer.
2-speed provides big electricity savings.
Easy install.
May 3, 2021
Purchased
