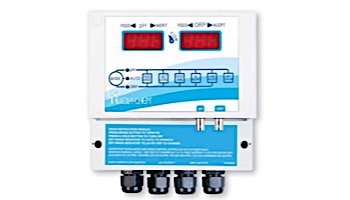

Digital pH/ORP Controller
The controller is a microprocessor-based chemical automation system, which continuously monitors and maintains the pH balance and sanitizer level in a swimming pool or spa.

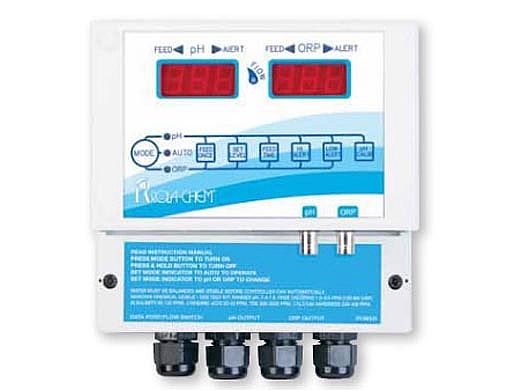

The pH and sanitizer level (ORP) are displayed using sun-bright seven-segment light emitting diodes. The pH and ORP levels are continuously monitored and displayed on the controller’s front panel. The ORP/pH controller has been designed to be user friendly. One MODE button and six SET buttons allow the operator to easily set parameters.
Includes: Controller, flow cell with flow switch, probes, 3/8" tubing and fittings.
- Digital readouts
- ORP technology
- Redox sensor
- Proportional feed or continuous feed
- Dip switch programmable settings
- Lockout security feature
- Built-in out-of-range safety timeouts
- pH calibration
- Acid or base feed
- Microprocessor logic
- Globe flow cell with flow switch
- Compatible with most peristaltic pumps
- Can also be used with erosion feeder/solenoid applications
- Manufactured in the USA
Technical Specifications:
|
pH |
ORP |
Feed Cycle |
• Factory Setting: |
7.4 |
650 mV |
.6 sec. |
• Display Range: |
6.8 – 8.2 |
0 – 995 mV |
• Setpoint Range: |
7.0 – 8.0 |
400 – 900 mV |
• Feed Cycles: |
.6 to 900 sec with 5-minute analyzation periods |
• Power: |
120V corded (input/output) |
• Feed: |
Timed or Continous
|
• Maximum Amps: |
5 Amps |
One-year limited warranty on Controller electronics and probes
NOTE: It is recommended that an in-line filter system (part number 550591) be used before the flow cell.
