Santa Barbara Controls PC2100 Chemtrol® PC2100 with Optional PPM Sensor - A Fully Programmable Controller

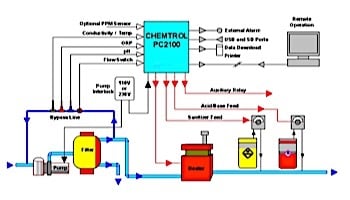

The CHEMTROL® PC2100 controller is a simple and reliable programmable controllers that features automatic maintenance of water chemistry (pH and ORP) with acid or base feed, programmable superchlorination and chemicals savings cycles and display of the Langelier Saturation Index.

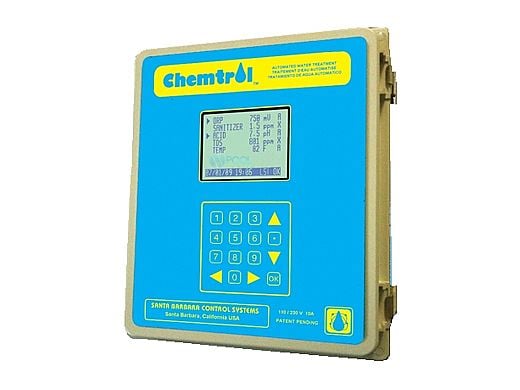

The Main Screen on the 8-line display enables the operator to supervise all process functions at a glance and to quickly respond to any changing condition.
The CHEMTROL® PC2100 controller operates like a computer with multi-line screen displays and direct access to all menus and submenus. The front panel keypad is used to move up and down each menu and enter or exit the submenus. All operating functions can be easily modified from the keypad, including sensor calibration, control setpoints, alarm levels and the programs for superchlorination and chemical savings.
Features & Specifications:
Feed Control |
Manual, ON/OFF, Proportional Feed, Timer |
Calibration |
1, 2 or 3 points |
Langelier Index |
Scaling and corrosion alert |
Shock Program |
Superchlorination |
Savings |
Chemical saver programs |
Failure Analysis |
Dynamic Probe Testing with sensor failure warning for ORP and pH |
Data Logging |
On-board memory for 1,000 tests |
Data Printing |
Real-time with data logging or downloading from storage memory |
Languages |
English, French and Spanish menus |
Units |
US and metric systems |
Passwords |
Security protection with ten 5-digit codes with 3 different access levels |
Clock |
24-hour universal clock/calendar |
Battery |
Maintains all settings in case of power shutdown |
Warranty |
Five (5) years warranty on PC boards |
Technical Specifications:
- ORP readout in millivolts with programmable oxidizer feed control
- pH readout with programmable acid and base feed controls
- Temperature readout in degrees Fahrenheit or Celsius
- Remote alarm (hot or dry contacts)
- Safety Flow Switch
- USB and Micro SD ports for program updates and data logging
- Rain and splatter proof NEMA Type 3R fiberglass cabinet (11x9")
Options:
- Free Chlorine sensor with replaceable membrane and 2-year warranty
- Data Communications Modem and CHEMCOM® remote computer software for Windows
- Flow Cell Assembly with clear cover, two control valves and sampling valve
