Home Speck Badu Block 100/250 Multi Series Pump | TEFC Motor | 15HP 460V 3 Phase 1740 RPM | BB705-1015F-000

Speck Badu Block 100/250 Multi Series Pump | TEFC Motor | 15HP 460V 3 Phase 1740 RPM | BB705-1015F-000

Name: Speck Badu Block 100/250 Multi Series Pump | TEFC Motor | 15HP 460V 3 Phase 1740 RPM | BB705-1015F-000
Brand: Speck Pumps
SKU: 199488
Availability: InStock

$14,322.00

Speck Badu Block 100/250 Multi Series Pump | TEFC Motor | 15HP 460V 3 Phase 1740 RPM | BB705-1015F-000

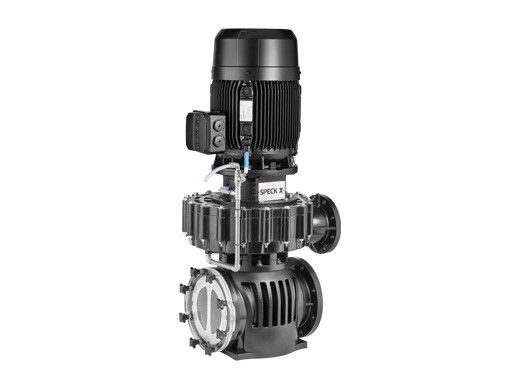

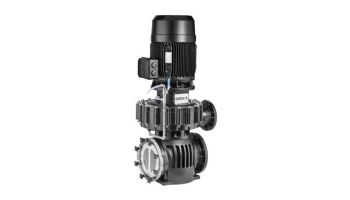

Badu Block Multi Series - Adding an Intelligent Twist to the Normblock's Versatile Design

When space is of the essence, the BADU Block Multi is the perfect fit. Vertical design and adjustable discharge allow the tightest possible fit.

Features:

Available in 7.5, 10, 15, 20, 25 & 30 HP Models
Superior slow (1750 rpm) running design reduces vibrations resulting in quiet operation.
Before installation, the discharge connection can be rotated freely. (A major advantage at the construction site.)
The housing is made of high performance, corrosion resistant polyurethane
Heavy duty energy efficient totally enclosed fan cooled (TEFC) motor, Class F insulation, protection class IP 55. Sealed ball bearings need no lubrication
Shaft coupling allows motor to be replaced without replacing mechanical seal
A high wear, rugged Carbon/SiC – EPDM mechanical seal allows for a long life and long maintenance intervals. (Special application seals available upon request.)
All plastic strainer tank comes with a stainless steel basket. (Optional PVC basket available)
Each pump is equipped with outside circulation and air bleed line that extends the life of the mechanical seal
Optional: Intergrated NEMA 4X Speck / Vacon VFD
Impeller shaves available for exact duty points with minimal turnaround time
Every pump is tested to factory & customer's specifications, with comprehensive individualized test results

Important Notice: The noise level from both the motor and pump are greatly influenced by how they are installed. Consideration should be given to minimize vibration and noise transmission.
