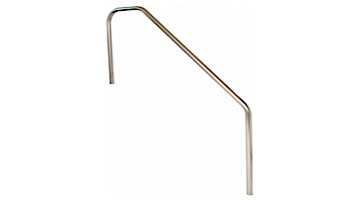

The 3-Bend Heavy Duty Commercial Stair Rail is a standard height rail made of polished type 304 stainless steel. The handrail is designed to run generally parallel with an angle typical of pool steps, come in a wide variety of lengths to accommodate almost any pool. Constructed of stainless steel, these rails can also be powder coated for additional protection.
Application
With proper anchoring The 3-Bend Heavy Duty Stair Rail is suitable for use on stairs and slopes on poured concrete, shotcrete, fiberglass, and vinyl commercial pools and spas as well as for other applications in most geographic areas.
Specifications

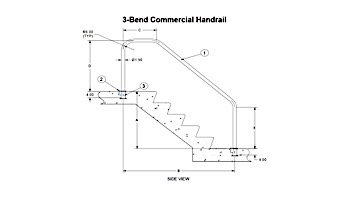

The handrail is made of 1.90" O.D (48.3mm) type 304 polished stainless steel tube and all bends are a nominal 6" (152.4mm) radius. The Heavy Duty Stair Rails are available in wall thicknesses of .065", .109, or .145 (1.65mm, 2.77, or 3.68).
-
Tubing: 1.50" or 1.90" OD
- Wall Thickness: .065"
- Stainless Steel: 304
- Bends: 6" Radius
- Options: Powder-coating and SealedSteel Salt Friendly available.
- Recommended anchors: AS-200B for 1.50" and AS-100B for 1.90" (order separately)
- Recommended escutcheons: EP-150 for 1.50" EP-100F for 190" (order separately)
