Home Pool Pool & Spa Lights SR Smith Lighting formerly Fiberstars SR Smith 6004 Series Metal Halide Illuminator, 4 Position Color Wheel | 6004
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

SR Smith 6004 Series Metal Halide Illuminator, 4 Position Color Wheel | 6004

SR Smith 6004 Series Metal Halide Illuminator, 4 Position Color Wheel | 6004
$1,155.74

Quantity:
Platinum Preferred Manufacturer
  • 450 Strand Port Capacity
  • 120 VAC 60Hz, 200W
  • Lamp life: 6000 hrs average
RELATED ITEMS

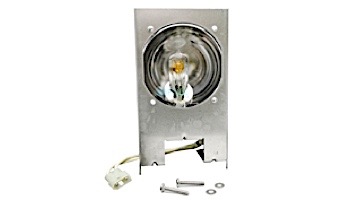

  • SR Smith Lamp Assembly For 6000 Illuminator Models | Y20-6000
    SR Smith Lamp Assembly For 6000 Illuminator Models | Y20-6000

    $226.43
  • SR Smith Wireless Remote Control for 6004 Illuminator | RM6000
    SR Smith Wireless Remote Control for 6004 Illuminator | RM6000

    $259.19
OVERVIEW
Fiber Optic Lighting - Metal Halide Illuminator

A multi-color 4-position color wheel (White, Blue, Green and Magenta), metal halide fiber optic illuminator for underwater lighting and fiber optic water features. If multiple units are required, use 6004 AS.

Product Specifications

Construction
  • Enclosure: High-Impact Outdoor Grade Polycarbonate
  • Ventilation: 110 ft3 /min.
  • Acoustic Rating: 50dB (A)
  • Weight: 20 lbs.
  • Maximim Fiber Capacity: 450 strand capacity
  • Add our optional Constant Color System to increase to
  • 600 strands
Electrical
  • Voltage Requirement: 120 VAC, 60 Hz
  • Power Consumption: 200 Watts max
  • Start Current Load: 4.4 amps
  • Run Current Load: 1.8 amps
Lamp
  • Type: Metal-Halide H.I.D., Proprietary Design
  • Life: 6000 Hours Average
  • Cool Down/Restrike Period: 2-3 minutes
  • Replacement Lamp Assembly No.: Y20-6000
  • Color Temperature: 4300 K


Brand: S.R.Smith
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
S.R.Smith, LLC warrants to the original retail purchaser that products manufactured by S.R.Smith, when properly assembled and installed in accordance with S.R.Smith's assembly and installation instructions, and properly used and maintained, shall be free from defects in materials and workmanship for the warranty period of three (3) years from the date of retail purchase except for the following items set forth below:
  • Game Accessories (ball, pump, net): Ninety Days
  • WetDek: One Year
  • Resin Transfer Molded (RTM) Slides, Seats, Loungers, and Tables: One Year
  • Aquatic Lift System Frames (excluding the powder coated finish, which may become scratched with normal use): Five Years
  • Aquatic Lift System Electronic and Motor Components (excluding batteries): Two Years
  • Aquatic Lift batteries: One year prorated as follows: 100% of cost during the first ninety days of ownership and 50 percent of cost after ninety days and prior to expiration of one-year period. Normal maintenance and care of the unit, including charge of the battery when not in use is recommended.
  • Lighting:
Product Parts
Labor
LED Lighting - Mod-Lite, Micro, Kelo, Treo, Fiberglass, Color Light Stream
3-Years 1-Year
PoolLUX Controls- Power, Plus, Plus2, Premier
2-Years 1-Year
PT- Series
2-Years 1-Year
Wiretran Control
1-Year 1-Year
TX-30 Control
1-Year 1-Year
WPC Controls
1-Year 1-Year
Fiber Optic Illuminators - 6004 Series
3-Years 1-Year
Fiber Optic Cable
1-Year n/a
Water Features
1-Year n/a
To register your S.R.Smith product, visit the Product Registration page at: www.srsmith.com.

This information was updated on 10/07/19. For the most current information and full warranty policy please visit www.srsmith.com.
