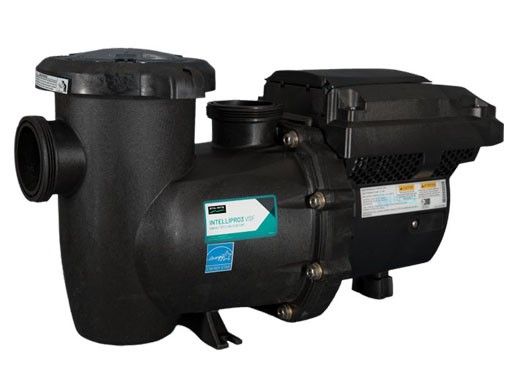

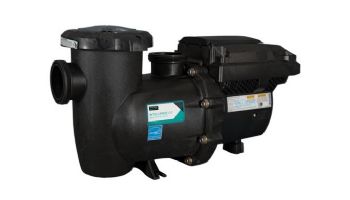

Sta-Rite IntelliPro3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3HP 208-230V 2590W | 013076

Sta-Rite IntelliPro3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3HP 208-230V 2590W | 013076
Sta-Rite IntelliPro3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3HP 208-230V 2590W | 013076
Sta-Rite IntelliPro3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3HP 208-230V 2590W | 013076
Sta-Rite IntelliPro3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3HP 208-230V 2590W | 013076
Sta-Rite IntelliPro3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3HP 208-230V 2590W | 013076
IntelliPro3 VSF Variable Speed & Flow Pool Pumps

Specifications:
  • Pump with relay board
  • Input Voltage Nominal: 208–230VAC
  • Input Current: 12.4/11.2 Amps
  • Input Frequency: Single phase, L1-L2 or L-N, 50 or 60Hz
  • Maximum Input Watts: 2590W
  • Maximum Shaft Horsepower: 3.0HP
  • Speed Range: 1–100% (450–3450 RPM)
  • Environmental Enclosure Rating: NEMA type 3/ IPX5
  • Ambient Condition Range:
    • Storage -40°C to +60°C (-40°F–140°F)
    • Operating 0 to 50°C (32-122°F)
    • Humidity Relative 0-95% non-condensing
Touchscreen Operation
If you prefer to control your pump directly from the equipment pad, a touchscreen controller allows you to adjust pump settings and program run schedules via a touchscreen mounted directly onto the pump drive. The following sections provide instructions for using your touchscreen controller.

Some pump models do not include a touchscreen controller out-of-box, but a touchscreen can be added to any IntelliFlo3 VSF or IntelliPro3 VSF pump. If you would like to add a touchscreen to your pump, Pentair offers a Touchscreen Controller Kit, part numbers 356159Z (almond) and 356348Z (black).

*Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool.


Brand: Pentair
