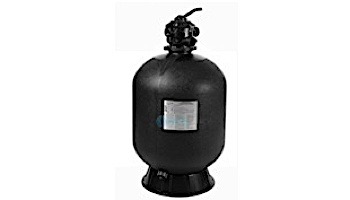

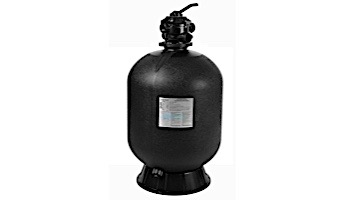

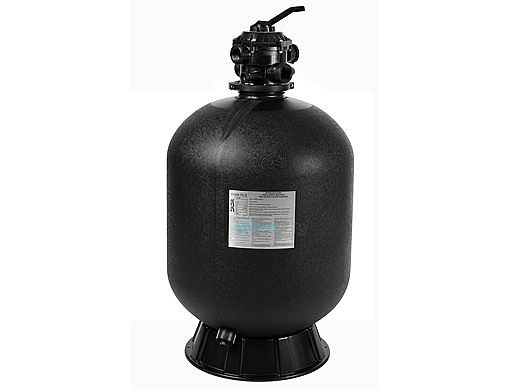

Sta-Rite Cristal-Flo II 16" Top Mount High Rate Sand Filter with 1.5" Multi-Port Valve | 1.4 Sq. Ft. | 145359

Call (888) 836-6025 or contact us for pricing and to purchase.

High Rate Sand Filters

For residential inground or aboveground swimming pools requiring turnover through 59,000 gallons, at flow rates up to 20 GPM for 8 to 10 hours. Permanent media high rate sand filters in 15", 17", 20", 24" and 30" diameter models accommodate large and small pools, offering the best combination of economy, performance, durability and ease of maintenance. Corrosion resistant, one-piece, extra-thick molded polyethylene tank assures long service life. Top-mounted, corrosion-resistant multiport selector valve included. Also includes a convenient tank winterizing drain and continuous air relief system.

Features

Durable one-piece extra-thick molded polyethylene tank
Six-position valve allows you to perform all necessary water movement functions (transparent sight-glass adapter included)
Large drain plug is easy to access for removing and installing by hand or with tools, if required
Contemporary style with a textured black finish that provides superior performance in all weather conditions
Innovative, integrated, continuous High Flow Internal Air Relief*

*Max Operating Temp 95OF

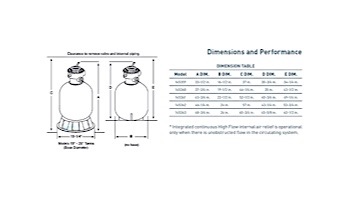

Specifications:

				Turnover Capacity (In Gallons)
Product	Effective Filtration Area (Sq Ft)	Max Pressure (PSI)	Flow Rate (GPM)	8 Hour	10 Hour	12 Hour	All Sand Required (Lbs)
14539	1.4	30	35	16,800	21,000	25,200	100
145360	1.8	35	40	19,200	24,000	28,000	150
145361	2.3	40	60	28,800	36,000	43,200	250
145362	3.15	50	70	33,600	42,000	50,400	300
145363	3.5	50	75	36,000	45,000	54,000	350

Brand: Pentair

REVIEWS

Q&A

PARTS

Sta-Rite Cristal-Flo II 16" Top Mount High Rate Sand Filter with 1.5" Multi-Port Valve | 1.4 Sq. Ft. | 145359

Call (888) 836-6025 or contact us for pricing and to purchase.

Parts Available

Platinum Preferred Manufacturer

Proposition 65 Warning

Purchase options

Related items

Suggested alternative(s)

Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

Pentair Tagelus Fiberglass Sand Filter 24 inch | TA60D EC-145241
$719.00

Product description

Features and details

Specifications

Resources

Warranty

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
