Home Pool Swimming Pool & Spa Pumps Sta-Rite Pool & Spa Pumps Sta-Rite D-Series 3HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHH-169
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

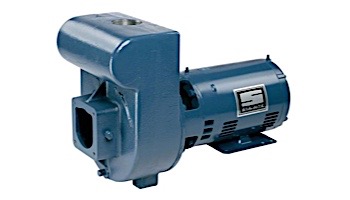

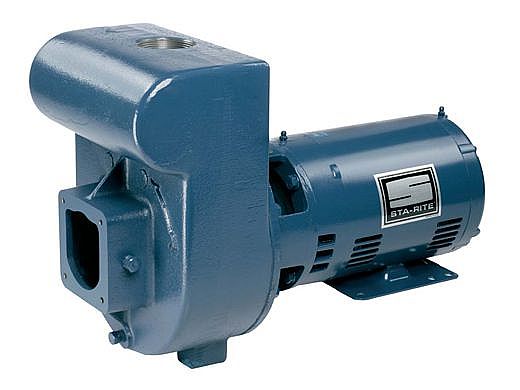

Sta-Rite D-Series 3HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHH-169

Sta-Rite D-Series 3HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHH-169 Sta-Rite D-Series 3HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHH-169 Sta-Rite D-Series 3HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHH-169
$1,466.05

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Back pull-out design allows entire motor to be removed for servicing impeller, seal or motor without disturbing plumbing
  • Suitable for outdoor installation
  • Precision cast and machined bronze impeller is dynamically balanced for long seal life and quiet operation
  • Single-phase motors: Automatic reset
  • NEMA® Listed, JM construction
OVERVIEW
D Series™ pumps are especially designed for commercial and public swimming pools and spas, aquatic facilities, water parks and fountain applications where high performance and self-priming characteristics are desired. These centrifugal pumps are available in high head and medium head models with motors from 3-5 HP to provide a complete range of performance characteristics. Motors are open drip-proof, continuous duty rated at 3450 RPM. A self-priming, high performance pump for semi-commercial and commercial swimming pools and spas.

Features:
  • Back pull-out design allows entire motor to be removed for servicing impeller, seal or motor without disturbing plumbing
  • Suitable for outdoor installation
  • Precision cast and machined bronze impeller is dynamically balanced for long seal life and quiet operation. Non-overloading
  • 200 Volt models available
  • 2", 21⁄2" or 3" suction port and 11⁄2", 2" or 21⁄2" discharge port
  • Carbon steel inside a 300 Series stainless steel sealed removable shaft sleeve
  • NEMA® Listed, JM construction
  • Single-phase motors: Automatic reset






Brand: Pentair
SPECIFICATIONS
Horse Power
3 HP
Speed
1 Speed
Voltage
230V
Pipe Size
1.5"
Color
Blue
Phase
Single Phase
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions
do you have this pump in stock ? Sta-Rite D-Series 3HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHH-169
Greg K on Sep 20, 2021
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Instruction Manual

Register your Pentair product online at www.pentair.com.

WARRANTY
  • LIMITED WARRANTY: Pentair warrants its products to be free from defects in material and/or workmanship for a period of sixty (60) days (parts only) from the original date of purchase and/or installation. Customer agrees to prepay all shipping charges to Pentair.
  • EXTENDED WARRANTY: To receive a product extended warranty (longer than 60 days from the original date of installation), customer must:
  1. Register the product;
  2. Provide a copy of the sales receipt; and
  3. Provide a copy of the installation invoice, provided by the qualified installer, within 60 days of installation (if required). Certain products do not require qualified installation but still require product registration and copy of the sales receipt to receive the extended warranty.
  • TRADEGRADE WARRANTY: TradeGrade products must be purchased from a retail store (brick and mortar), pool builder or pool service company. If purchased online (via internet) the product will only receive a sixty (60) day limited warranty. View the list of TradeGrade products here.
  • ECOMMERCE (EC) WARRANTY: Products purchased from an Authorized Pentair Online Reseller receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty. To receive an eCommerce warranty, customer must:
  1. Register the product, and
  2. Provide a copy of the sales receipt

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 04/05/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
