Home Sta-Rite D-Series 5HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHJ-170
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into mid-2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

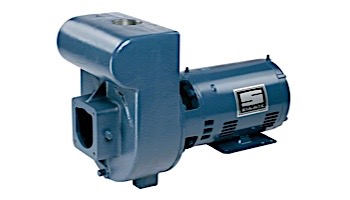

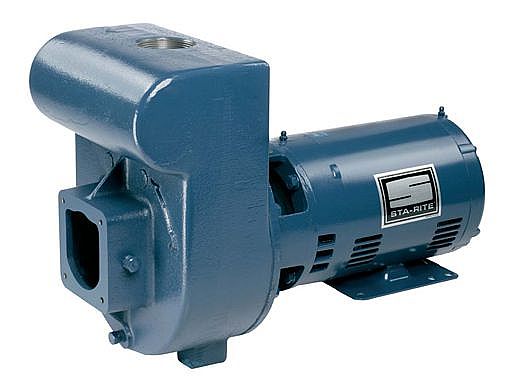

Sta-Rite D-Series 5HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHJ-170

Sta-Rite D-Series 5HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHJ-170 Sta-Rite D-Series 5HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHJ-170 Sta-Rite D-Series 5HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DHJ-170
$1,705.75

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Back pull-out design allows entire motor to be removed for servicing impeller, seal or motor without disturbing plumbing
  • Suitable for outdoor installation
  • Precision cast and machined bronze impeller is dynamically balanced for long seal life and quiet operation
  • Single-phase motors: Automatic reset
  • NEMA® Listed, JM construction
OVERVIEW
D Series™ pumps are especially designed for commercial and public swimming pools and spas, aquatic facilities, water parks and fountain applications where high performance and self-priming characteristics are desired. These centrifugal pumps are available in high head and medium head models with motors from 3-5 HP to provide a complete range of performance characteristics. Motors are open drip-proof, continuous duty rated at 3450 RPM. A self-priming, high performance pump for semi-commercial and commercial swimming pools and spas.

Features:
  • Back pull-out design allows entire motor to be removed for servicing impeller, seal or motor without disturbing plumbing
  • Suitable for outdoor installation
  • Precision cast and machined bronze impeller is dynamically balanced for long seal life and quiet operation. Non-overloading
  • 200 Volt models available
  • 2", 21⁄2" or 3" suction port and 11⁄2", 2" or 21⁄2" discharge port
  • Carbon steel inside a 300 Series stainless steel sealed removable shaft sleeve
  • NEMA® Listed, JM construction
  • Single-phase motors: Automatic reset






Brand: Pentair
SPECIFICATIONS
Horse Power
5 HP
Speed
1 Speed
Voltage
230V
Pipe Size
2"
Color
Blue
Phase
Single Phase
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions
what is the power requirements for this pump, we are going to operate it with a generator?
chuck on Sep 23, 2017
where is the drain plug or port located?
A shopper on Jun 12, 2021
Can you tell me if this pump is compatible to boost an irrigation system? It looks identical to the one I am currently using!
Maintenance on Jan 17, 2022
REVIEWS
There are no reviews for this item. Write Review
WARRANTY
You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
