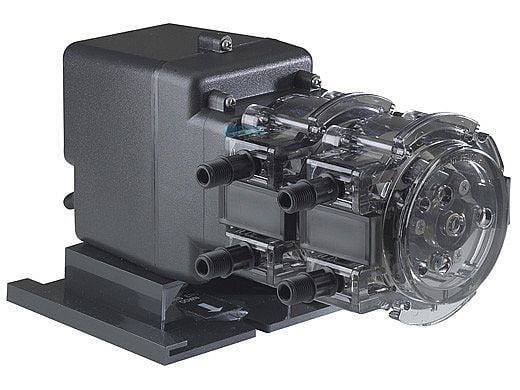

Double Head Fixed Output



The fixed rate pump does not have an output adjustment. The output is determined by three factors; the rpm of the motor gears and the pump tubes in both heads. The motor’s output shaft rotates at a fixed rpm which drives the roller assembly within the pump head.



100 Series Fixed Output

• 26 rpm
• 6, 20 gpd up to 100 psi (22.7, 75.7 lpd up to 6.9 bar)
• 6, 20, 44, 70 gpd or 100 up to 25 psi (22.7, 75.7, 166.5, 265.0 or 378.5 lpd up to 1.7 bar)

• 3-point roller design assists in anti-siphon protection
• Pump head requires no valves, allows for easy maintenance
• Self-priming against maximum working pressure, foot valve not required
• Pump does not lose prime or vapor lock
• Pumps off-gassing solutions and can run dry
• Output volume is not affected by back pressure
• Injection check valve included with models rated up to 100 psi (6.9 bar)
• Easy to change pump tube; lubrication is not required
• Pump tubes and pump heads interchange between models
• Models (Santoprene® only) tested by Water Quality Association to conform to ANSI/NSF STD 61
• Adjustable models (Santoprene® only) tested by ETL to conform to ANSI/NSF STD 50

• Maximum Operating Temperature 125°F (52°C)
• Maximum Suction Lift 25 ft (7.6 m) vertical lift, based on water
• Motor Type 1/30 HP, shaded pole, class B
• Duty Cycle Continuous
• Motor Voltage (Amp Draw)
  • 120V 60Hz 1PH (1.7)
  • 220V 60Hz 1PH (0.9)
  • 230V 50Hz 1PH (0.9) INTERNATIONAL
  • 250V 50Hz 1PH (0.9) INTERNATIONAL
• Power Cord Type SJTOW
• Power Cord Plug End
  • 120V 60Hz NEMA 5/15
  • 220V 60Hz NEMA 6/15
  • 230V 50Hz CEE 7/VII
  • 250V 50Hz CEE 7/VII
