Home Stenner Classic Series 45MHP10 Pump | Single Head Adjustable Output | 10GPD 120V 60Hz USA .25" UV Black 100PSI | 45MJH2A2S
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

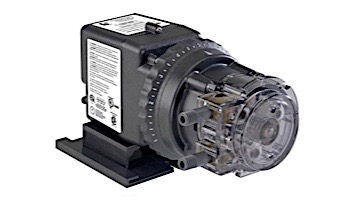

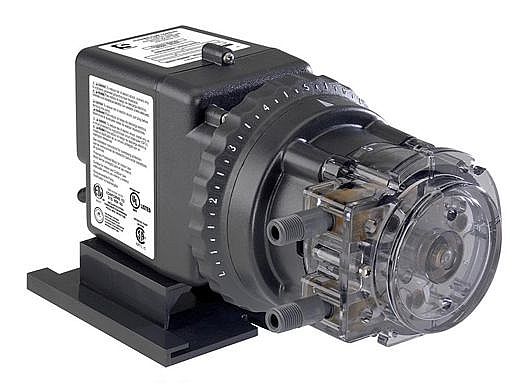

Stenner Classic Series 45MHP10 Pump | Single Head Adjustable Output | 10GPD 120V 60Hz USA .25" UV Black 100PSI | 45MJH2A2S

Stenner Classic Series 45MHP10 Pump | Single Head Adjustable Output | 10GPD 120V 60Hz USA .25" UV Black 100PSI | 45MJH2A2S
$398.77

Quantity:
  • Self-priming up to 25 feet and does not lose prime
  • Subassemblies fit together without tools; easy service or conversion to another model
  • Can run dry without damage
  • Will not clog from dirt or debris
  • Adjustable feed rate control from 5%-100% in 2.5% increments
  • Pump tubes accept a variety of chemicals
OVERVIEW
Q & A
REVIEWS
FOR YOU
OVERVIEW
SINGLE HEAD ADJUSTABLE OUTPUT PUMP

How It Works

Stenner’s adjustable metering pump is built with three detachable components: the motor, feed rate control, and pump head. Outputs are dependent upon three factors: the rpm of the motor gears, the percentage setting on the feed rate control, and the size of the peristaltic pump tube. All Stenner metering pumps have a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime.

The motor shaft rotates at a fixed rpm which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump head. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet pressure.

45 SERIES
0.2 to 22.0 gpd up to 100 psi
0.2 to 50.0 gpd up to 25 psi
  • 26 rpm
  • Adjustable output 5%-100%, 2.5% increments
Features
  • 3-point roller design assists in anti-siphon protection
  • Pump head requires no valves, allows for easy maintenance
  • Self-priming against maximum working pressure, foot valve not required
  • Pump does not lose prime or vapor lock
  • Pumps off-gassing solutions and can run dry
  • Output volume is not affected by back pressure
  • Easy to change pump tube; lubrication is not required
  • Pump tubes and pump heads interchange between models
Accessory Kit Shipped With Each Pump
  • 3 connecting nuts 1/4" or 3/8"
  • 3 ferrules 1/4" or 6 mm EUROPE OR 2 ferrules 3/8"
  • 1 injection check valve 100 psi (6.9 bar) OR 1 injection fitting 25 psi (1.7 bar)
  • 1 weighted suction line strainer 1/4", 3/8" or 6 mm EUROPE
  • 1 20' roll suction/discharge tubing 1/4" or 3/8",white or UV black
  • OR 6 mm white EUROPE
  • 1 additional pump tube
  • 2 additional latches
  • 1 mounting bracket
  • 1 manual
SPECIFICATIONS
Maximum Operating Temperature 125° F (52° C)
Maximum Suction Lift 25 ft (7.6 m) vertical lift, based on water
Motor Type 1/30 HP, shaded pole, class B
Duty Cycle Continuous
Motor Voltage (Amp Draw)
120V 60Hz 1PH (1.7)
220V 60Hz 1PH (0.9)
230V 50Hz 1PH (0.9) INTERNATIONAL
250V 50Hz 1PH (0.9) INTERNATIONAL
Power Cord Type SJTOW
Power Cord Plug End
120V 60Hz NEMA 5/15
220V 60Hz NEMA 6/15
230V 50Hz CEE 7/VII
250V 50Hz CEE 7/VII

MATERIALS OF CONSTRUCTION
All Housings Polycarbonate
Pump Tube & Check Valve Duckbill Santoprene®*, optional Tygothane®** #1, #2 & #5 tubes, FDA approved
CV Duckbill with Tygothane®** Tube Pellathane®†
Pump Head Rollers HDPE
Roller Bushings Oil impregnated sintered bronze
Suction/Discharge Tubing, Ferrules 1/4" & 6 mm
Polyethylene, FDA approved
Tube Fittings, Check Valve Fittings Gray fittings: Type 1 Rigid PVC, NSF listed Black fittings: PP, NSF listed
Connecting Nuts PP or Type 1 Rigid PVC
3/8" Adapter Type 1 Rigid PVC, NSF listed
Suction Line Strainer PP or Type 1 Rigid PVC body with Type 1 Rigid PVC cap, NSF listed; ceramic weight
All Fasteners Stainless steel
Pump Head Latches Polypropylene

AGENCY LISTINGS
  • Models tested by Water Quality Association to conform to ANSI/NSF STD 61 (Santoprene® only)
  • Adjustable models tested by ETL to conform to ANSI/NSF STD 50 (Santoprene® only)
  • Listings vary by model




Brand: Stenner Pumps
