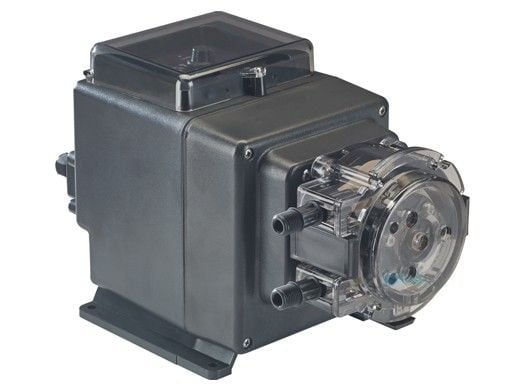

Stenner Peristaltic Metering Pumps S Variable Series | 5 GPD 120V/60Hz USA .25" White Tubing 100 PSI | S3V01AA101N

$888.65

S Variable Series Pumps

The S Variable Series are peristaltic pumps with practical functions such as backup pump capability, leak detection and remote operation for industrial, water, wastewater, and commercial swimming pool applications.

The Variable models run at the factory set speed when power is applied or the standby input is removed; they do not have an on/off switch. Both series have LED performance indicators and three output relays for indication from the pump to a separate device, like a process control system.

The pumps have a durable totally enclosed housing with NEMA 4X rating. The brushless DC motor is equipped with ball bearing support and the switch power mode offers energy efficiency. The splined shaft in the pump head and roller assembly allows smooth installation and replacement. Tube replacement does not require tools with the patented pump S4 QuickPro® pump head.

Maximum Flow Rate Outputs:

150 gpd/25 psi (567 lpd/1.7 bar)
60 gpd/100 psi (227 lpd/6.9 bar)

Key Features:

Backup pump capability
Leak detection
LED Indicators
Three output relays
Enclosed housing, NEMA 4X
Tube replacement without tools

Leak Detect Jumper

The pump includes a factory installed Leak Detect Jumper to stop the pump if a leak is detected. The jumper may be removed to allow the pump to continue to run when a leak is detected.

Three Dedicated Output Relays

Leak Detect: Sends relay to indicate a leak is detected.

Run: Sends relay to indicate pump is operating.

Transfer: Sends relay from the primary pump to transfer operation to a back-up pump, if a leak is detected, or if there is a loss of power or if a drive fault occurs.

Standby Input

The Standby Input can receive a dry contact signal to remotely stop or start the pump. The standby input is also utilized with the transfer relay to set the primary pump to transfer operation to a back-up pump.

Stenner Peristaltic Pump Advantages

Self-priming against max. working pressure; foot valve not required
Solutions do not contact moving parts
Pump head requires no valves, allows for easy maintenance
Does not lose prime or vapor lock
Pumps off-gassing solutions and can run dry.
Output volume is not affected by back pressure.
Simple tube replacement without tools

Flow Rate Outputs

S3V and S4V Models

Item No. Prefix

Pump Tube

Turndown Ratio

Gallons / Day

Gallons / Hour

Ounces / Hour

Ounces / Minute

Liters / Day

Liters / Hour

Milliliters / Hour

Milliliters / Minute

25 psi (1.7 bar) max.

Approximate Output @ 50/60Hz

S3V03

20:1

2.0-40.0

0.8-1.67

10.7-213.0

0.18-3.56

7.6-151.0

0.32-6.31

315.5-6309.0

5.3-05.0

S3V04

20:1

3.0-60.0

0.13-2.50

16.0-320.0

0.27-5.33

11.4-227.0

0.47-9.46

473.2-9464.0

7.9-158.0

S3V05

20:1

4.3-85.0

0.18-3.54

22.7-453.0

0.38-7.56

16.1-322.0

0.67-13.41

670.3-13407.0

11.2-223.0

S4V5X

20:1

7.5-150.0

0.31-6.25

40.0-800.0

0.67-13.33

28.4-568.0

1.18-23.66

1182.9-23659.0

19.7-394.0

100 psi (6.9 bar) max.

Approximate Output @ 50/60Hz

S3V01

20:1

0.3-o5.0

0.01- .21

1.3-27.0

0.02-0.44

1.0-19.0

0.04-0.79

39.4-789.0

0.7-13.0

S3V02

20:1

0.8-17.0

0.03-0.71

4.5-91.0

0.07-1.51

3.2-64.0

0.13-2.68

134.1-2681.0

2.2-45.0

S3V07

20:1

2.0-40.0

0.08-1.67

10.7-213.0

0.18-3.56

7.6-151.0

0.32-6.31

315.5-6309.0

5.3-105.0

S4V7X

20:1

3.0-60.0

0.13-2.50

16.0-320.0

0.27-5.33

11.4-227.0

0.47-9.46

473.2-9464.0

7.9-158.0

*Important Notice: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under
a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field
calibration by means of analytical testing to confirm their outputs.
