Home T10004RT3 Control Panel w/Transformer 120V/300W
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

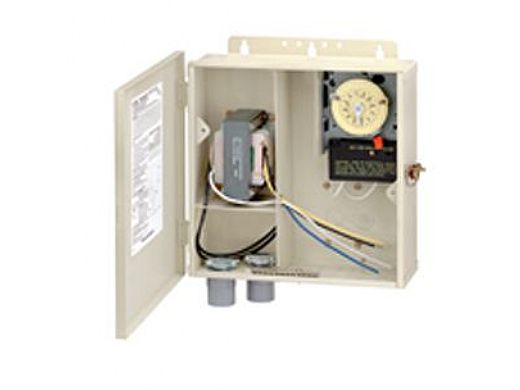

T10004RT3 Control Panel w/Transformer 120V/300W

T10004RT3 Control Panel w/Transformer 120V/300W
$267.47

Quantity:
  • Steel with electrostatically applied light beige finish
  • Inside are the time switch, the transformer and other components needed for the completion of this installation
  • Accepts additional Intermatic mechanisms
    and/or components

  • Easy to wire and extremely cost effective
OVERVIEW
Q & A
REVIEWS
WARRANTY
FOR YOU
OVERVIEW
Pool Panels with Transformer

These Panels with Transformer offer an all-in-one, easy to wire and extremely cost effective electrical control center for any pool or spa installation. Inside the enclosure are the time switch, the transformer and other components needed for the completion of this installation. The T40000RT Series panels will accept additional Intermatic mechanisms and/or components.

Specifications

T10000RT Series
  • Case: 12" (30.5 cm) H x 12" (30.5 cm) W x 4-1/4" (10.8 cm) D, 0.048" steel with electros3;tatically applied light beige finish
  • Knockouts: Five combination 1/2"-3/4" and two combination 3/4"-1" knockouts on the bottom. One combination 1/2"-3/4" on the left side and one combination 3/4"-1" on the back. One knockout 1-3/4" x 2-3/4" on the right side for mounting switches or GFCI
  • Center Rating: 92 Amp per leg, 168 Amp Max. 120-240 VAC or 120-208 VAC single phase -0Hz
  • Shipping Weight: 20lbs
T40000RT Series
  • Case: 20-3/4" (52.7 cm) high x 12-3/4" (32.4 cm) wide x 4-1/4" (10.8 cm) deep, 0.048" steel with electrostatically applied light beige finish
  • Knockouts: Seven combination 1/2"-3/4" and three combination 3/4"-1" knockouts on the bottom. Five combination 1/2"-3/4" on the left side. One 1-3/4" x 2-3/4" knockout on the right side for mounting switches and GFCI
  • Panel Rating: T40000RT Series - 100 Amp 120-240 VAC or 120-208 VAC single phase - 60 HZ
  • Time Switch Rating: T40000R Series
  • Transformer Rating: See table
  • Shipping Weight: 20 lbs


Brand: INTERMATIC
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
can I purchase the transformer only? my timer clock and box are fine.
Donald J on Mar 24, 2020
REVIEWS
There are no reviews for this item. Write Review
WARRANTY
Register your product online at www.intermatic.com.
