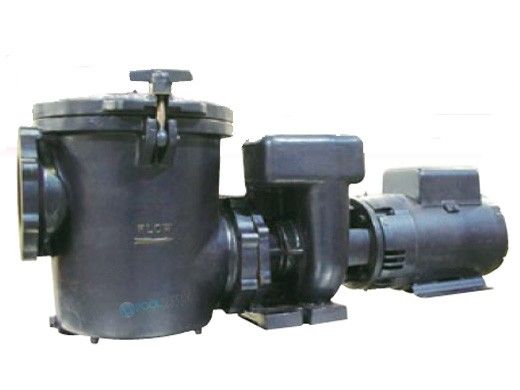

Home Waterco Hydro5000 20HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05003
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

Waterco Hydro5000 20HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05003

Waterco Hydro5000 20HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05003 Waterco Hydro5000 20HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05003 Waterco Hydro5000 20HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05003
$2,907.31

Quantity:
Platinum Preferred Manufacturer
  • Pump Strainer Must be Ordered Separately
  • Designed for Aquatic Facilities, Water Parks, and Large Commercial Swimming Pools
  • All Bronze Impeller
  • Standard 4in Discharge and 6in Suction A.N.S.I. Flanges
  • Available in 50Hz. Upon Request
  • Quiet Operation and Excellent Flow
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
OVERVIEW
Hydro5000 is a High Performance Self-Priming Pump

Hydro5000 Series pumps are Especially designed for aquatic facilities, water parks and large commercial swimming pools, the Hydro 5000 series pump is offered in four sizes. The pump has an enclosed bronze impeller which allows for quiet operation and excellent flow. All pumps have standard 6in x 4in A.N.S.I. flange connections. All models are epoxy coated inside and out. Strainers must be ordered seperately from pump.

Features:
  • Pump Strainer Must be Ordered Separately
  • Self-Priming Feature
  • All Bronze Impeller
  • Standard 4in Discharge and 6" Suction A.N.S.I. Flanges
  • Available with 7.5, 10, 15, and 20 HP Motors
  • Supplied with 1/8 in tk. Neoprene gaskets
  • Available in 50Hz. upon request
  • All items are Epoxy Coated for superior corrosion resistant
Commercial Pump
Waterco commercial pump incorporate the latest technology in design and construction to produce a high performance, energy saving pump ideal for any situation that demands maximum output.

Hydro5000 pumps are high performance corrosion resistant thermoplastic pumps , purpose built for commercial swimming pools, aquatic facilities and water parks.

The pump's unique construction offers several advantages in comparison with custom made steel strainers. Glass reinforced thermoplastic possesses superior mechanical and chemical resistance compared to steel. Fibreglass thermoplastic does not rust or corrode and able to withstand damage from many types of water treatment chemicals.

Specifications:
Model Inlet/Outlet Size (in.) Volts SF. AMPS Motor Frame RPM
7.5HP 6 x 4 208-230/460 17.40 184JM 3450
10HP 6 x 4 208-230/460 15.20 213JM 3450
15HP 6 x 4 208-230/460 16.20 215JM 3450
20 6 x 4 208-230/460 20.00 254JM 3450


SPECIFICATIONS
Horse Power
20 HP
Speed
1 Speed
Voltage
208–230/460V
Pipe Size
6"
Phase
Three Phase
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
WARRANTY COVER
If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.

WARRANTY PERIOD
All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

SCHEDULE OF PARTS WARRANTY PERIODS
All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.

Product Warranty Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends 3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser 2 Years
• Motor mechanical seal & capacitor 1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps 2 Years
• ¹Fulflo pressure pump 2 Years
FILTER
• ¹Thermoplastic filter tank 5 Years 5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank 10 Years Not applicable
• ¹Cartridge / Bag filter tank 5 Years 5 Years (Refer Column A)
• ¹DE / Pearlite filter tank 3 Years 2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra 3 Years
¹Except: All internal parts including fittings, valves,
gauges, cartridge elements, DE / Pearlite grids.
1 Year
• All multiport valves used on media (granular) or
DE / Pearlite
1 Year
CHEMFLO PLUS
• Controller / Feeder 3 Years
• Sensor 1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell 3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack 3 Years
¹&²HEAT PUMPS 3 Years
• ¹Compressor 3 Years
• ²Titanium Heat Exchanger 10 Years
• All other components 2 Years
GAS HEATER 2 Years
DIGIHEAT 2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights 2 Years
• Litestream LED Pool Lights 1 Year
• Light Transformers 1 Year
AUTOMATION PRODUCTS
• Waterco Controllers 2 Years
• Waterco Temperature Sensor 1 Year

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 10/10/19. For the most current information and full warranty policy please visit www.waterco.us.
