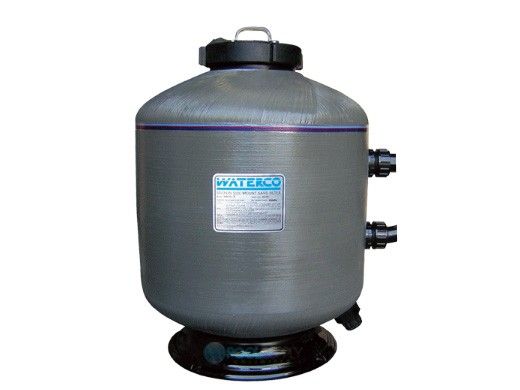

Waterco Micron SM-Series SM500 20" Side Mount Floating Bead Filter | No Valve | 2.12 Sq. Ft. 42 GPM | 220008204BD-NV

$692.52
Waterco Micron SM-Series SM500 20" Side Mount Floating Bead Filter | No Valve | 2.12 Sq. Ft. 42 GPM | 220008204BD-NV
Waterco Micron SM-Series SM500 20" Side Mount Floating Bead Filter | No Valve | 2.12 Sq. Ft. 42 GPM | 220008204BD-NV
Waterco Micron SM-Series SM500 20" Side Mount Floating Bead Filter | No Valve | 2.12 Sq. Ft. 42 GPM | 220008204BD-NV
Waterco Micron SM-Series SM500 20" Side Mount Floating Bead Filter | No Valve | 2.12 Sq. Ft. 42 GPM | 220008204BD-NV
Waterco fibreglass filters embody the latest in fibreglass winding technology. Waterco fibreglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fibreglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fibreglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

The Micron Series filters are constructed from anti-corrosive, nontoxic materials and are engineered to withstand the high flow and pressures of today's pool and industrial systems.

Features
  • Hydraulically balanced laterals to maximize water flow and filtration
  • Media Sold Separately
  • Large filter base for stable floor mounting
  • Fibreglass wound tank, UV and Corrosion Resistant
  • Pressure gauge
  • Inflow diffuser for even distribution of water flow across the filter bed
  • Manual Drain
  • Multiport valve sold separately
Micron Fibreglass Filters
Micron filters operate on the basis of "depth filtration"; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter's laterals and exit via the filter's Multiport valve.

Filament Wound Filters
Micron fibreglass filters embody the latest in fibreglass winding technology. Micron fibreglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fibreglass filament. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of high quality fibreglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Simple Maintenance
The effectiveness and efficiency of the filter is impaired by excessive build up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter's Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

Specifications:
Model No. Valve Size
(in.)
Bed Depth
(in.)
Inner Dia.
(in.)
Filter Area
(Sq. Ft.)
Max Flow
(gpm)
Max Pool Size
(gal.)
Backwash Flow
Rate
(gpm)
Media
Volume
(cubic ft.)
Sand
16/30
0.6-12
(lb.)
Glass Pearl
0.6-0.8
(lb)
Zeoplus
1-2.2
(lb)
SM500 1.5 11.4 19.7 2.12 42 15,200 32-42 2.3 225 240 163.14
SM600 2.0 14.2 23.6 3.05 61 21,900 46-61 4 400 450 253.53
SM750 2.0 15.7 29.6 4.76 96 34,200 71-95 6.9 700 750 381.4
SM900 2.0 17.3 35.5 7.01 140 50,500 103-140 10.6 1,050 1,175 840
