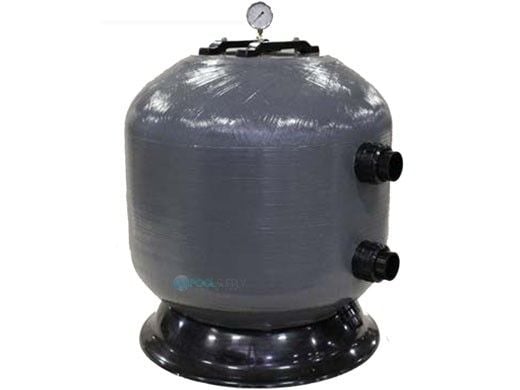

Manufactured from the highest grade of non corrosive materials and employing the latest in fibreglass winding technology, Micron fibreglass filters are designed and built for many years of trouble free operation.



Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.



Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels.

Conventional laterals are not suitable for larger sized commercial filters. "Dead legs" exist between the laterals and water flow is not optimised through the filter bed. Waterco's "Fish Tail" lateral configuration eliminates any "dead legs" by improving water flow distribution through the filter bed.



Waterco are the first to introduce the benefits of the "easy reach" air bleed system for commercial filters. Located directly under the sight glass, a valve may be fitted to the tank, which is connected directly to an internal air bleed system allowing any air to be simply bleed from the filter without the need to manually bleed the air from filter lid or to use additional plumbing.



Model	Port Size (in)	Bed Depth (in)	Inner Dia. (in)	Filter Area (sq ft)	Flow Rates gpm/sq ft 5      10      15      20				Media Volume (gallons)	Gravel 1.2-2.4 (lbs)	Sand 0.6-1.2 (lbs)
SM1050	3.0	18.50	41.40	9.62	48	96	144	192	112	150	1,350
SM1200	3.0	22.8	47.3	12.56	63	126	188	251	187	250	2,250
SM1400	4.0	26.4	55.2	16.49	82	165	247	330	300	450	3,550
SM1600	4.0	26.4	63	21.64	108	216	325	433	393	600	4,650
SM1600	6.0	26.4	63	21.64	108	216	325	433	393	600	4,650
SM1800	6.0	26.4	70.86	27.50	138	275	413	550	505	850	5,900
SM2000	6.0	26.4	78.8	34.00	170	340	510	680	618	1,030	7,230

WARRANTY COVER

If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.



WARRANTY PERIOD

All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.



All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.



Product	Warranty	Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends	3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser	2 Years
• Motor mechanical seal & capacitor	1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps	2 Years
• ¹Fulflo pressure pump	2 Years
FILTER
• ¹Thermoplastic filter tank	5 Years	5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank	10 Years	Not applicable
• ¹Cartridge / Bag filter tank	5 Years	5 Years (Refer Column A)
• ¹DE / Pearlite filter tank	3 Years	2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra	3 Years
¹Except: All internal parts including fittings, valves, gauges, cartridge elements, DE / Pearlite grids.	1 Year
• All multiport valves used on media (granular) or DE / Pearlite	1 Year
CHEMFLO PLUS
• Controller / Feeder	3 Years
• Sensor	1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell	3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack	3 Years
¹&²HEAT PUMPS	3 Years
• ¹Compressor	3 Years
• ²Titanium Heat Exchanger	10 Years
• All other components	2 Years
GAS HEATER	2 Years
DIGIHEAT	2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights	2 Years
• Litestream LED Pool Lights	1 Year
• Light Transformers	1 Year
AUTOMATION PRODUCTS
• Waterco Controllers	2 Years
• Waterco Temperature Sensor	1 Year
