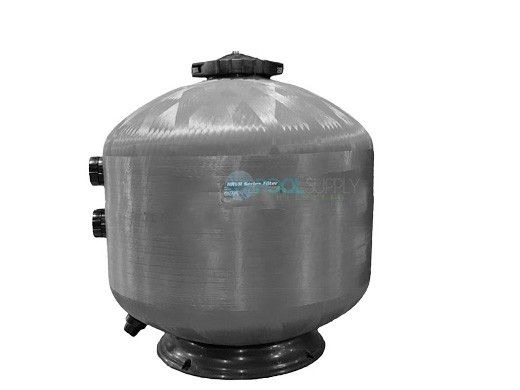

Waterco HRVR Fiberglass 24" Side Mount Sand Filters with 2" Bulkhead Connector and 7.5" Port Spacing | 3.1 Sq. Ft. | 22207248R

$894.93

Waterco HRVR Fiberglass 24" Side Mount Sand Filters with 2" Bulkhead Connector and 7.5" Port Spacing | 3.1 Sq. Ft. | 22207248R

HRVR Series Side Mount Sand Filters

Waterco fiberglass filters embody the latest in fiberglass winding technology. The filters are constructed from anti-corrosive, nontoxic materials and are engineered to withstand the high flow and pressures of today's demanding installations. With the reinforced neck ring and solid lid closure this filter is the best for today's most demanding projects.

Features:

Maximum operating pressure: 58PSI
Internal Bulkhead Wall reinforced for superior structural integrity
Retro Fit Design with 7.5" port spacing for direct replacement for Pentair's Triton
Positive 8" clamping design for larger internal access
2" Bulkhead connections
1.5" Drain assembly
Fishtail laterals for improved backwashing hydraulic efficiency
Saves up to 30% waste water

Best In Class Featuring Waterco's Fishtail Lateral System

Better coverage eliminates dead space
Engineered to improve backwash efficiency
Reduces filtration pressure loss
In combination with Waterco's Glass Pearls saves up to 30% of backwash water

Specifications:

Model	Port Size (in.)	Bed Depth (in.)	Inner Dia. (in.)	Filter Area (sq ft)	Max Flow (gpm)	Max Pool Size (gal.)	Backwash Flow Rate (gpm)	Media Volume (gal.)	Glass Pearl 0.6-0.8 (lb)	Sand 0.6-1.2
HRVR24	2	11	24	3.14	63	22,680	47-63	24	360	325
HRVR30	2	12	30	4.91	98	35,280	74-98	45	660	600
HRVR36	2	13	36	7.07	141	50,760	106-141	64	950	850

REVIEWS

Q&A

Waterco HRVR Fiberglass 24" Side Mount Sand Filters with 2" Bulkhead Connector and 7.5" Port Spacing | 3.1 Sq. Ft. | 22207248R

$894.93

Quantity

Platinum Preferred Manufacturer

Product description

HRVR Series Side Mount Sand Filters

Features:

Maximum operating pressure: 58PSI
Internal Bulkhead Wall reinforced for superior structural integrity
Retro Fit Design with 7.5" port spacing for direct replacement for Pentair's Triton
Positive 8" clamping design for larger internal access
2" Bulkhead connections
1.5" Drain assembly
Fishtail laterals for improved backwashing hydraulic efficiency
Saves up to 30% waste water

Best In Class Featuring Waterco's Fishtail Lateral System

Better coverage eliminates dead space
Engineered to improve backwash efficiency
Reduces filtration pressure loss
In combination with Waterco's Glass Pearls saves up to 30% of backwash water

Specifications:

Model	Port Size (in.)	Bed Depth (in.)	Inner Dia. (in.)	Filter Area (sq ft)	Max Flow (gpm)	Max Pool Size (gal.)	Backwash Flow Rate (gpm)	Media Volume (gal.)	Glass Pearl 0.6-0.8 (lb)	Sand 0.6-1.2
HRVR24	2	11	24	3.14	63	22,680	47-63	24	360	325
HRVR30	2	12	30	4.91	98	35,280	74-98	45	660	600
HRVR36	2	13	36	7.07	141	50,760	106-141	64	950	850

Features and details

Specifications

Resources

Warranty

SCHEDULE OF PARTS WARRANTY PERIODS

All products sold by Waterco are covered by a one year warranty with the exception of the products listed below.

Product	Full Warranty
PUMPS	1 Years
• Variable Speed Pumps	3 Years
FILTER
• Thermoplastic filter tank / Exotuf filter tank	2 Years
• Filament Wound	10 Years
•Trimline / Bag filter tank	5 Years
• DE / Tri-Cartridge filter	2 Years
• MultiCyclone, Plus / Ultra / XL	2 Years
*Except: All internal parts including fittings, valves, gauges, cartridge elements, DE grids.	1 Year
All multiport valves	2 Year

Commercial Applications: All products installed in a commercial application are covered by a one year warranty except commercial filament wound tanks

Product	Full Warranty
Comercial filament wound tanks	10 Years
Parts and Internals	1 Year
Commercial Pumps	1 Year

SUMMARY OF WARRANTY LIMITATIONS

The provisions of this warranty are not transferable from the original purchaser and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

Spare parts used in the repair of products are covered by a 12 month warranty and are not covered by the original warranty from date of purchase or installation.

The purchaser is responsible for any freight incurred. *** See Warranty Booklet for Full Terms & Conditions of Warranty ***

This warranty does not cover any failure in service caused by improper installation, or improper operation as a result of noncompliance with the maintenance and installation manual. Nor is any failure as a result of fire, wreckage, freezing, willful abuse, improper repackaging or damage incurred in transportation. Warranty will also not cover consequential damage resulting from any failure in service. Faulty parts will be replaced free of charge, after inspection by our Quality Control Department.

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 9/3/24. For the most current information and full warranty policy please visit www.waterco.us.
