Home Waterco 36" HRV Fiberglass Side Mount Sand Filter | 2" Connections & 2" Multiport Valve 2290590 | 22207368A
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Waterco 36" HRV Fiberglass Side Mount Sand Filter | 2" Connections & 2" Multiport Valve 2290590 | 22207368A

This item has been discontinued.
Waterco 36" HRV Fiberglass Side Mount Sand Filter | 2" Connections & 2" Multiport Valve 2290590 | 22207368A
Waterco 36" HRV Fiberglass Side Mount Sand Filter | 2" Connections & 2" Multiport Valve 2290590 | 22207368A
Waterco 36" HRV Fiberglass Side Mount Sand Filter | 2" Connections & 2" Multiport Valve 2290590 | 22207368A
Waterco 36" HRV Fiberglass Side Mount Sand Filter | 2" Connections & 2" Multiport Valve 2290590 | 22207368A

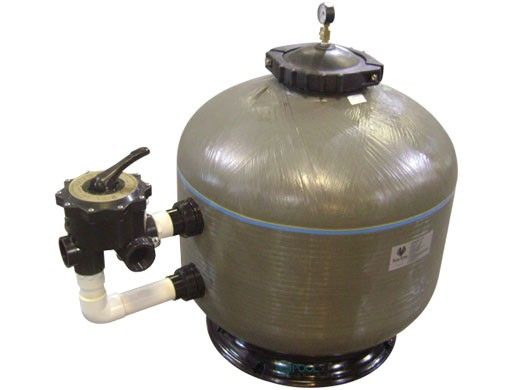

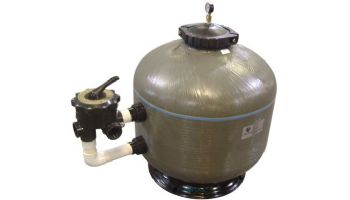

HRV Fiberglass Side Mount Sand Filter

Waterco HRV fiberglass filters embody the latest in the latest in fiberglass winding technology. The HRV series filters are constructed from anticorrosive, nontoxic materials and are engineered to withstand the high flow and pressures of todays pool and industrial systems.

Nozzle Plate
Micron SPDD filters are fitted with a plate and nozzle system, which ensures uniform flow for both filtering and backwashing. This ensures maximum performance through the media bed. The nozzle plate system also allows the introduction of pressurised air directly into the bottom of the filter media. Uniform introduction of air and water through the nozzle plate provides vigorous agitation and filter media expansion required for an effective air/water backwash leading to reduced backwashing times and reduced volumes of water. This saves up to 25% of backwash water.

Features
  • Fiberglass filament wound tank

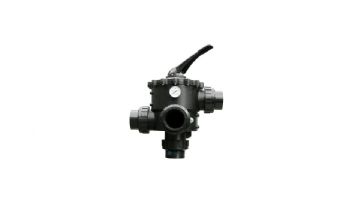

  • 2" Multiport Valve included - Part# 2290590
  • 2" bulkhead connections
  • 50 psi maximum operating pressure

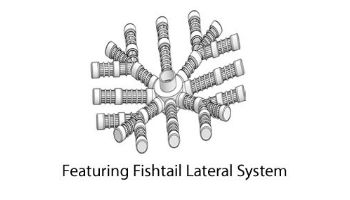

  • Exclusive "Fishtail" lateral underdrain system
  • NSF approved
Manufactured with high grade fibreglass and resins for durability, this filter will give you years of clean pool water. Depending on the choice of media, this medium filters out everything larger than 3 - 40 microns. Sand/media still remains the most popular choice on the market for their durability and simplicity in maintenance

Pros:
Durable and easy to clean, as it does not need to be disassembled like other types of filters
  • Filter's multiport valve to give you control of water flow through the filtration circuit
Cons:
Filter media needs to be replaced approximately every five years
  • Needs to be backwashed regularly, which can use a lot of water
  • Generally requires a larger installation space compared to other filter choices
Specifications:


Model

Valve Size
(in)
Bed Depth
(in)
Inner Dia.
(in)
Filter Area
(sq ft)
Max Flow
(gpm)
Max Pool
Size
(gal)
Backwash
Flow Rate
(gpm)
Media
Volume
(gal)
Glass Pearl
0.6-0.8
(lb)
Sand
16/30
(lb)
HRV18 2 14 20 2.2 43 15,480 21-43 13.5 200 180
HRV24 2 14 24 3.1 63 22,680 32-63 22.4 330 300
HRV30 2 14 30 4.9 98 35,280 49-98 37.4 550 500
HRV36 2 16 36 7.1 142 51,120 70-140 59.9 880 800
