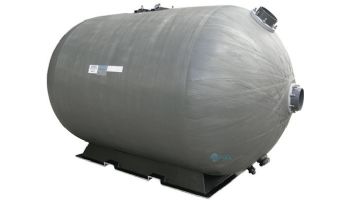

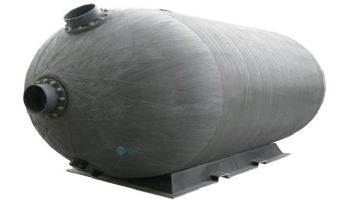

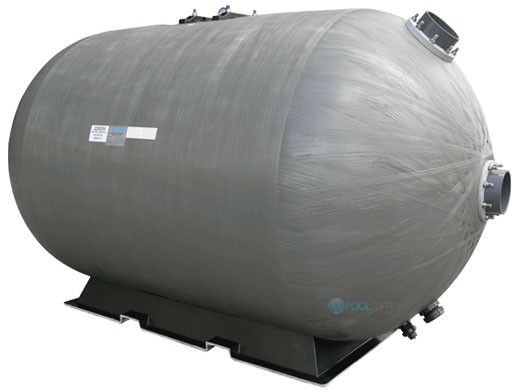

Waterco Micron Commercial Horizontal Sand Filter | 48" x 106" | Left - Manway Flange | 32.4 Square Foot | 22290106L

Waterco Micron Commercial Horizontal Sand Filter | 48" x 106" | Left - Manway Flange | 32.4 Square Foot | 22290106L Waterco Micron Commercial Horizontal Sand Filter | 48" x 106" | Left - Manway Flange | 32.4 Square Foot | 22290106L Waterco Micron Commercial Horizontal Sand Filter | 48" x 106" | Left - Manway Flange | 32.4 Square Foot | 22290106L Waterco Micron Commercial Horizontal Sand Filter | 48" x 106" | Left - Manway Flange | 32.4 Square Foot | 22290106L Waterco Micron Commercial Horizontal Sand Filter | 48" x 106" | Left - Manway Flange | 32.4 Square Foot | 22290106L
$9,632.90

Quantity:
Platinum Preferred Manufacturer

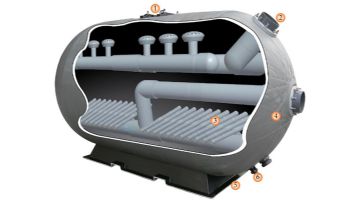

  • Elliptical Positive Sealing Manways
  • Large Stable Filter Base for Stable Floor Mounting
  • Fiberglass Wound Tank, UV and Corrosion Resistant
  • Hydraulically Balanced Distribution and Lateral System
  • Horizontal 6" Flange Port
OVERVIEW
Micron Fiberglass Commercial Filter - Proven Strength and Durability

The Micron horizontal filter is a space-saving high performer; its compact horizontal design allows installation with minimum waste of space. The shape of the Micron horizontal filter is both attractive and functional. The spherical ends are designed to give uniform flow from both inlet and outlet collection assemblies. Micron horizontal filters are available with a 500mm (M) filter media bed and a 1200mm (MD) filter media bed.

Waterco has vastly improved the hydraulic efficiency of its horizontal filter lateral system by looping its distributors and laterals. The new lateral configuration provides a more natural flow of water through the filter, ensures optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage, reducing the friction head loss of each lateral, further improving the filter's hydraulic efficiency.

Features:
  • Elliptical positive sealing manways
  • Flanged port of up to 10"
  • Hydraulically balanced distribution and lateral system
  • Fiberglass wound tank, UV and corrosion resistant
  • Large stable filter base for stable floor mounting
  • Manual drain
Micron fiberglass filters
Micron fiberglass filters embody the latest in fiberglass winding technology. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyze. Waterco's quality control procedures ensure that the structural requisites of the product are achieved at every stage of production. This results in a 100% compliance of the end product with the specifications.The design and the manufacturing process of the whole vessel, utilizing the latest filament winding machines, incorporation of non metallic fittings plus reinforced manhole openings with proprietary methods, is unique to Waterco.

Why fiberglass instead of steel?
Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels. Fiberglass vessels have a mechanical and chemical resistance superior to steel. Fiberglass tanks do not rust or corrode and are able to withstand damage from many types of water treatment chemicals.

Fiberglass vessels weigh only 1/3 the weight of steel vessels while maintaining the same level of strength. Their weight makes them easier to ship to the job site and easier to install.

Once installed there are virtually no maintenance or repairs required. Steel vessels require the anti-corrosive coating to be maintained periodically and certified welders to make repairs to the lining with expensive epoxy coating.

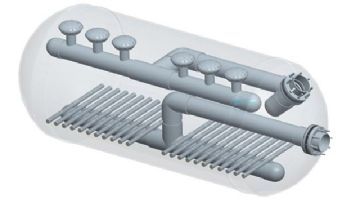

Hydraulically Balanced Lateral Configuration
Conventional lateral systems result in uneven fluidisation of the filter media bed. The beginning of the lateral system experiences a strong flow of water, which gradually decreases along the length of the lateral piping. Backwash flow also decreases towards the end of each lateral, resulting in nonuniform lifting of the filter media bed. Waterco's new lateral configuration provides a more natural flow of water through the filter, ensuring optimum water filtration and balanced fluidisation of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage to reduce the friction head loss of each lateral and further improve the filter's hydraulic efficiency. This reduces backwash run times, saves valuable water, and produces flatter, more uniform filter media bed after backwashing.

Specifications:


Model

Port Size
(in)
Bed Depth
(in)
Inner Dia.
(in)
Filter Area
(sq ft)
Flow Rates
gpm/sq ft
5      10      15      20
Media Volume
(gallons)
Gravel
1.2-2.4
(lbs)
Sand
0.6-1.2
(lbs)
42x75 4.0 14.1 42 19.6 98 196 294 392 183 450 2,000
42x91 6.0 11.8 42 24 120 240 360 480 232 900 2,200
42x106 6.0 11.8 42 28.2 141 282 423 564 277 1,000 2,600
42x120 6.0 11.8 42 32.2 161 322 483 644 322 1,300 3,000
48x75 4.0 13.6 48 22.1 111 221 332 442 175 850 2,250
48x91 6.0 13.6 48 27.6 138 276 414 552 295 1,100 2,850
48x106 6.0 13.6 48 32.4 162 324 486 648 355 1,350 3,400
48x120 6.0 13.6 48 37 185 370 555 740 411 1,600 3,900
Note: Minimum backwash flowrate 15 GPM / SQ. FT.


SPECIFICATIONS
Tank Diameter
48"
Valve Position
Side
ClearPro Technology
No
Square Foot
32.4
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
WARRANTY COVER
If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.

WARRANTY PERIOD
All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

SCHEDULE OF PARTS WARRANTY PERIODS
All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.

Product Warranty Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends 3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser 2 Years
• Motor mechanical seal & capacitor 1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps 2 Years
• ¹Fulflo pressure pump 2 Years
FILTER
• ¹Thermoplastic filter tank 5 Years 5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank 10 Years Not applicable
• ¹Cartridge / Bag filter tank 5 Years 5 Years (Refer Column A)
• ¹DE / Pearlite filter tank 3 Years 2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra 3 Years
¹Except: All internal parts including fittings, valves,
gauges, cartridge elements, DE / Pearlite grids.
1 Year
• All multiport valves used on media (granular) or
DE / Pearlite
1 Year
CHEMFLO PLUS
• Controller / Feeder 3 Years
• Sensor 1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell 3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack 3 Years
¹&²HEAT PUMPS 3 Years
• ¹Compressor 3 Years
• ²Titanium Heat Exchanger 10 Years
• All other components 2 Years
GAS HEATER 2 Years
DIGIHEAT 2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights 2 Years
• Litestream LED Pool Lights 1 Year
• Light Transformers 1 Year
AUTOMATION PRODUCTS
• Waterco Controllers 2 Years
• Waterco Temperature Sensor 1 Year

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 10/10/19. For the most current information and full warranty policy please visit www.waterco.us.
