Home Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount - 5-Way Valve | 102 PSI | 2280262
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

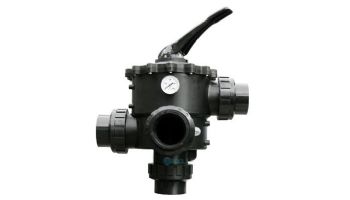

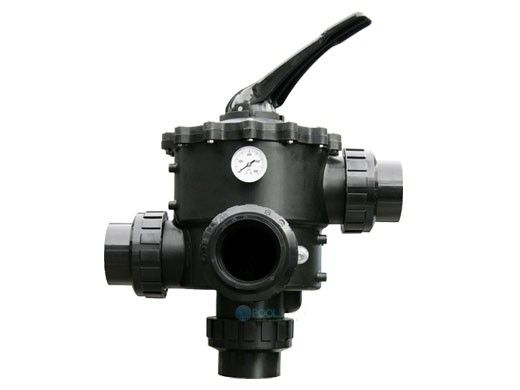

Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount - 5-Way Valve | 102 PSI | 2280262

$139.93
Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount - 5-Way Valve | 102 PSI | 2280262
Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount - 5-Way Valve | 102 PSI | 2280262
Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount - 5-Way Valve | 102 PSI | 2280262
Multiport Valves - Heavy Duty Construction

Constructed from heavy duty ABS and GFPP, Waterco Multiport valves are designed for high performance and working pressures.
Waterco's entire range of Multiport valves are engineered to withstand a working pressure of up to 400 kPa (58 psi) with a test pressure of 600 kPa (87 psi).

Cleansing a filter simply requires shifting the Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

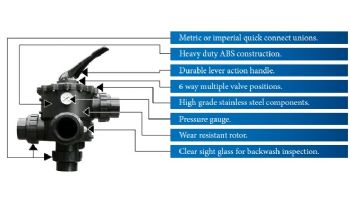

Features:
  • Constructed from heavy duty ABS and GFPP
  • Waterco Multiport valves are designed for high performance and working pressures
  • Durable lever action handle
  • High grade stainless steel components
  • 6 way multiple valve positions
  • Top and Side mount configurations
  • Available in 40mm, 50mm, 65mm, 80mm and 100mm port sizes
  • Rated at 400 kPa

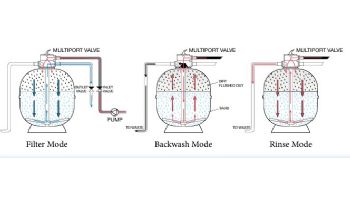

Multiport Valve Main Functions
  1. Filter downward flow through thefilter bed to outlet
  2. Backwash upward flow through the filterbed to waste
  3. Rinse downward flow through thefilter bed to waste
  4. Waste bypass the filter bed to waste
  5. Re-circulate bypass the filter bed to outlet
  6. Closed no flow to the filter
Specifications:
Max Flow Rate Body Lid Handle Rotor Hardware Union Nut Union Tail
1-1/2” MPV (40mm) 84 ABS ABS ABS GF Noryl SS304 ABS PVC
2” MPV (50mm) 135 ABS ABS ABS GF Noryl SS304 ABS PVC
2-1/2” MPV (65mm) 206 ABS GFPP ABS GF Noryl SS304 ABS PVC
3” MPV (80mm) 285 GFPP GFPP ABS GF Noryl SS304 ABS PVC
4” MPV (100mm) 310 GFPP GFPP ABS GF Noryl SS304 ABS PVC
