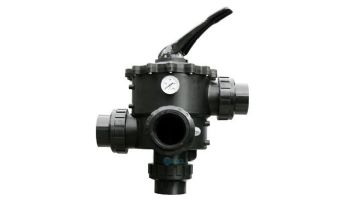

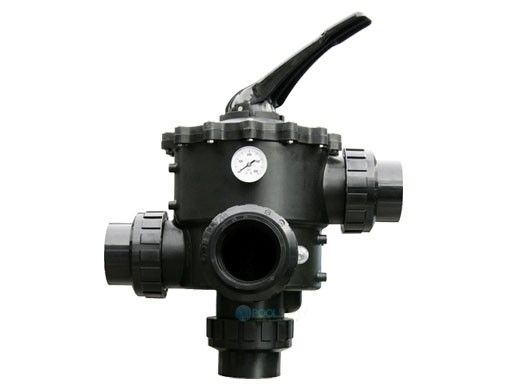

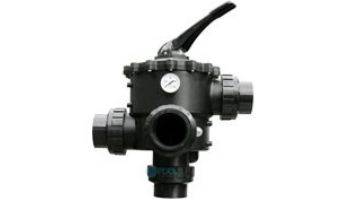

Home Pool Valves & Actuators Waterco Filter Backwash Valves Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492P | 2290492

Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492P | 2290492

$215.66
Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492P | 2290492
Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492P | 2290492
Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492P | 2290492
Multiport Valves - Heavy Duty Construction

Constructed from heavy duty ABS and GFPP, Waterco Multiport valves are designed for high performance and working pressures.
Waterco's entire range of Multiport valves are engineered to withstand a working pressure of up to 400 kPa (58 psi) with a test pressure of 600 kPa (87 psi).

Cleansing a filter simply requires shifting the Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

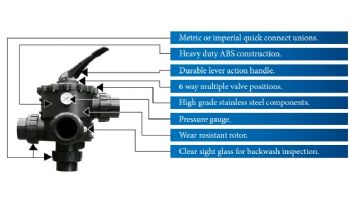

Features
  • Constructed from heavy duty ABS and GFPP
  • Waterco Multiport valves are designed for high performance and working pressures
  • Durable lever action handle
  • High grade stainless steel components
  • 6 way multiple valve positions
  • Top and Side mount configurations
  • Available in 40mm, 50mm, 65mm, 80mm and 100mm port sizes
  • Rated at 400 kPa

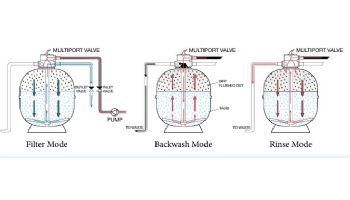

Multiport Valve Main Functions
  1. Filter - downward flow through the filter bed to outlet
  2. Backwash - upward flow through the filter bed to waste
  3. Rinse - downward flow through the filter bed to waste
  4. Waste - bypass the filter bed to waste
  5. Re-circulate - bypass the filter bed to outlet
  6. Closed - no flow to the filter
Suits filter model: Micron SM500, SM600, SMDD600 8" neck with 1.5" connections

Specifications:
Max Flow Rate Body Lid Handle Rotor Hardware Union Nut Union Tail
1-1/2” MPV (40mm) 84 ABS ABS ABS GF Noryl SS304 ABS PVC
2” MPV (50mm) 135 ABS ABS ABS GF Noryl SS304 ABS PVC
2-1/2” MPV (65mm) 206 ABS GFPP ABS GF Noryl SS304 ABS PVC
3” MPV (80mm) 285 GFPP GFPP ABS GF Noryl SS304 ABS PVC
4” MPV (100mm) 310 GFPP GFPP ABS GF Noryl SS304 ABS PVC
