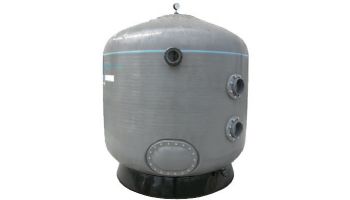

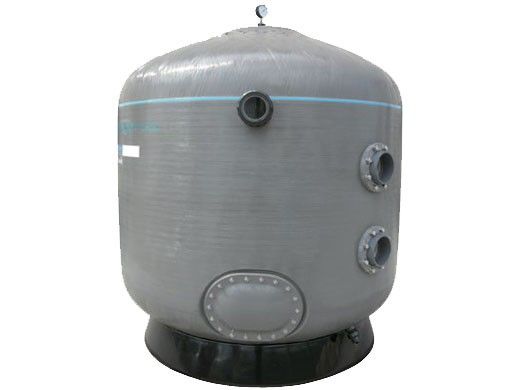

Home Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA

Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA

$21,569.13
Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA
Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA
Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA
Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA
Waterco Micron SMDD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connection 118 PSI | 27.50 Sq. Ft. 275 GPM | 22491808154NA | 30491808154NA
The effect of deep media bed improves the filtration efficiency over standard High-rate filters by providing enhanced in-depth filtration and increased dirt capacity. In addition, the greater bed depth permits efficient use of mixed bed filter media and water treatment media such as granular activated carbon. The filter's 1200mm media bed ensures that finer dirt particles and colloidal substances are retained to a far greater level than a filter with a shallower bed depth.

Features
  • Fiberglass wound tank, UV and corrosion resistant
  • Hydraulically balanced laterals to maximize water flow and filtration
  • Six position Multi-port valve with sight glass and quick connect half unions (sold separately)
  • Working pressure 250 kPa (36 psi)
  • Extra reinforcement to increase the working pressure rating to 400 kPa (58 psi) is available on request
  • Maximum working temperature of 50 C degrees (122 F degrees)
  • Optional sight glasses and lateral man holes
  • Optional fiberglass reinforced vinyl ester for improved chemical resistance
  • 3.9 ft bed depth
  • Ultra smooth bobbin finish
  • Available in 2.5, 4, 6, 8 and 10 bar pressure ratings
  • Vinylester resin coating available
  • 6" flange connections
  • Nozzle plate version (SPDD)
Filament Wound Construction
Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Why fiberglass instead of steel?
Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels.
  • Waterco's quality control procedures ensure that the structural requisites of the product are achieved at every stage of production. This results in a 100% compliance of the end product with the specifications.
  • The design and the manufacturing process of the whole vessel, utilizing the latest filament winding machines, incorporation of non metallic fittings plus reinforced manhole openings with proprietary methods, is unique to Waterco.
  • Fiberglass vessels weigh only 1/3 the weight of steel vessels while maintaining the same level of strength. Their weight makes them easier to ship to the job site and easier to install.
  • Once installed there are virtually no maintenance or repairs required. Steel vessels require the anti-corrosive coating to be maintained periodically and certified welders to make repairs to the lining with expensive epoxy coating.

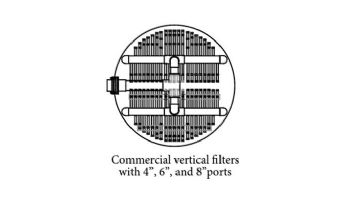

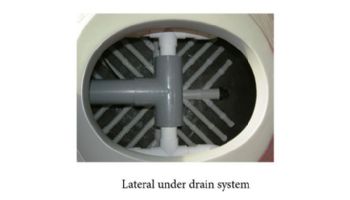

Micron "Fish Tail" Laterals
Conventional laterals are not suitable for larger sized commercial filters. "Dead legs" exist between the laterals and water flow is not optimised through the filter bed. Waterco's "Fish Tail" lateral configuration eliminates any "dead legs" by improving water flow distribution through the filter bed.

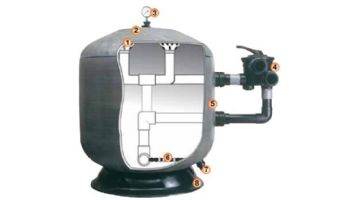

Easy Reach Air Release System
Waterco are the first to introduce the benefits of the "easy reach" air bleed system for commercial filters. Located directly under the sight glass, a valve may be fitted to the tank, which is connected directly to an internal air bleed system allowing any air to be simply bleed from the filter without the need to manually bleed the air from filter lid or to use additional plumbing.

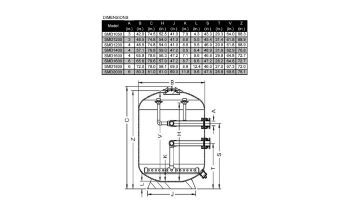

Specifications:


Model

Port Size
(in)
Bed Depth
(in)
Inner Dia.
(in)
Filter Area
(sq ft)
Flow Rates
gpm/sq ft
5      10      15      20
Media Volume
(gallons)
Gravel
1.2
(lbs)
Sand
0.6-1.2
(lbs)
SMDD1050 3.0 47.2 42.0 9.62 48 96 144 192 282 175 3,600
SMDD1200 3.0 47.2 47.3 12.56 63 126 188 251 370 250 4,700
SMDD1200 4.0 47.2 47.3 12.56 63 126 188 251 374 350 4,650
SMDD1400 4.0 47.2 55.2 16.49 82 165 247 330 512 500 6,350
SMDD1600 4.0 47.2 63.0 21.64 108 216 325 433 666 550 8,350
SMDD1600 6.0 47.2 63.0 21.64 108 216 325 433 666 550 8,350
SMDD1800 6.0 47.2 70.9 27.50 138 275 413 550 901 1,600 10,450
SMDD2000 6.0 47.2 78.8 34.00 170 340 510 680 1,103 1,750 13,000
SMDD2200 6.0 47.2 86.7 41.26 206 413 619 825 1,380 2,750 15,700
SMDD2350 6.0 47.2 93.0 46.72 234 467 701 934 1,533 2,550 17,950
SMDD2500 6.0 47.2 99.0 52.85 264 529 793 1,057 1,728 2,750 20,350
SMDD3000 8.0 47.2 118.1 76.10 381 761 1,142 1,522 2,592 5,500 29,150
