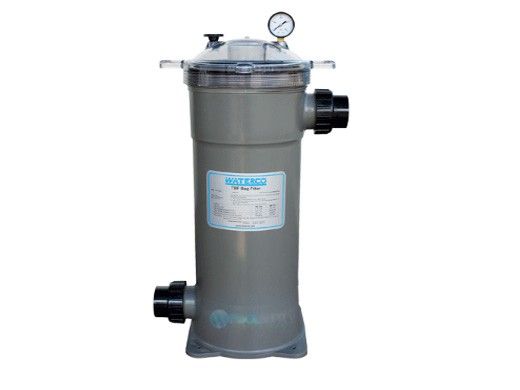

The Trimline Leaf Trapper incorporates a high quality and durable bag filter that enables high volume leaf and debris capture. The lid is clear for quick visual inspection of the Leaf Trapper's filter bag.



The Trimline Leaf Trapper is ideal for installation in areas of high leaf and debris collection prior to a pool's finer filtration system. It is compact and economical, perfect for negative edge pools and in floor cleaning systems.



The Leaf Trapper housings are constructed from high impact polypropylene and a clear polycarbonate lid provide a strong and durable filter. The design of the ergonomic screw down lid enables simple hand operation and quick filter cleaning or replacement.



Its large filter bag is made of high strength and durable nylon, plus it's easy to clean. The 800 micron bag allows a full flow of water with minimal resistance, and it has a holding capacity is approximately four-times the usual leaf and debris holding capacity of a standard pool skimmer leaf.



Leaf Trapper Specification
Max Flow Rate	340lmp	90gpm
Required Clearance for Servicing	530mm	20.9"
Maximum Pressure	350kPa	50psi
Maximum Temperature	40°C	100°F



Filter Bag Specifications
Suface Area	0.17m²	1.85ft²
Diameter	178mm	7"
Length	419mm	16.5"

WARRANTY COVER

If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.



WARRANTY PERIOD

All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.



All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.



Product	Warranty	Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends	3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser	2 Years
• Motor mechanical seal & capacitor	1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps	2 Years
• ¹Fulflo pressure pump	2 Years
FILTER
• ¹Thermoplastic filter tank	5 Years	5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank	10 Years	Not applicable
• ¹Cartridge / Bag filter tank	5 Years	5 Years (Refer Column A)
• ¹DE / Pearlite filter tank	3 Years	2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra	3 Years
¹Except: All internal parts including fittings, valves, gauges, cartridge elements, DE / Pearlite grids.	1 Year
• All multiport valves used on media (granular) or DE / Pearlite	1 Year
CHEMFLO PLUS
• Controller / Feeder	3 Years
• Sensor	1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell	3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack	3 Years
¹&²HEAT PUMPS	3 Years
• ¹Compressor	3 Years
• ²Titanium Heat Exchanger	10 Years
• All other components	2 Years
GAS HEATER	2 Years
DIGIHEAT	2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights	2 Years
• Litestream LED Pool Lights	1 Year
• Light Transformers	1 Year
AUTOMATION PRODUCTS
• Waterco Controllers	2 Years
• Waterco Temperature Sensor	1 Year
