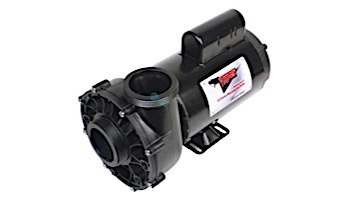

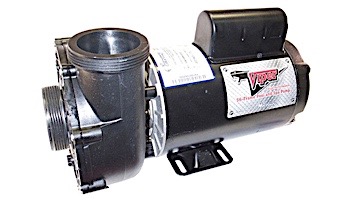

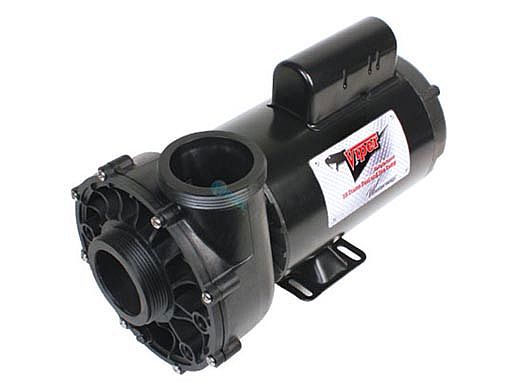

Waterway Viper Spa Pump | 2-Speed 5HP 230V 56-Frame | 3722021-1V

Waterway Viper Spa Pump | 2-Speed 5HP 230V 56-Frame | 3722021-1V Waterway Viper Spa Pump | 2-Speed 5HP 230V 56-Frame | 3722021-1V Waterway Viper Spa Pump | 2-Speed 5HP 230V 56-Frame | 3722021-1V
$463.15

Quantity:
Shipping Flat Rate Shipping $24.95
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • 5 Horse Power
  • 2 1/2" Intake - 2 1/2" Discharge
  • 230 Volts 60 Hz
  • 16.4 Amps High Speed - 4.8 Amps Low Speed
RELATED ITEMS
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
WARRANTY
FOR YOU
PARTS
RELATED ITEMS
  • Waterway 2.5" Union Nut with 2.5" Slip Tailpiece and O-Ring | 400-6010
    Waterway 2.5" Union Nut with 2.5" Slip Tailpiece and O-Ring | 400-6010

    $11.88
  • Waterway 2.5 inch Union Nut with 2 Inch Slip Tailpiece and O-Ring | 400-5990
    Waterway 2.5 inch Union Nut with 2 Inch Slip Tailpiece and O-Ring | 400-5990

    $12.15
OVERVIEW
Waterway's Viper wet end is designed specifically for 56-frame motors and has two double shielded ball bearings with moisture resistant grease for quieter operation and longer life.

Features
  • Two speed motors have four sets of insulated windings for increased efficiency
  • 56-frame motor for added strength, cooler operating temperature and longer motor life
  • Large 2.5" intake for improved flow perfomance and reduced noise
  • Large 8" diameter wet end for increased volume capacity
  • Split capacitor, (start and run) for less energy consumption
  • Thermally protected to extend life expetancy of motor
  • Highly versatile wet end can be rotated every 90
  • Viton seals

A = 11"


Brand: WATERWAY
SPECIFICATIONS
Horse Power
5 HP
Speed
2 Speed
Voltage
230 V
Inlet Size
2-1/2"
Outlet Size
2-1/2"
Flange
Thru Bolt
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
my intake or discharge is bigger than 2 1/2?
A shopper on Jan 3, 2016
BEST ANSWER: Make sure you measure the plumbing and not the ports on the pump. When it refers to size (2in or 2.5in) it's talking about the plumbing in the system and not the ports on the pump.
