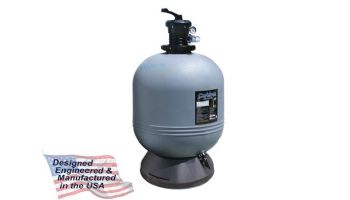

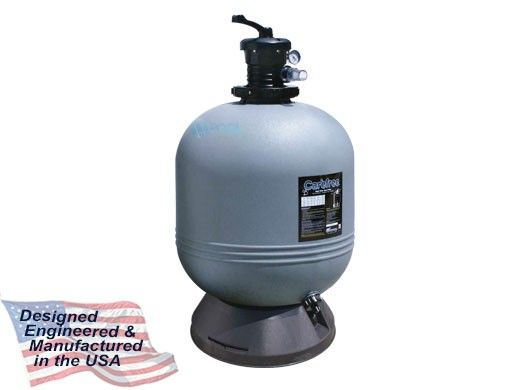

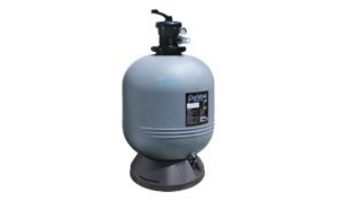

Waterway Carefree 16" Top Mount Sand Filter | 1.4 Sq. Ft. 35 GPM | FS01619

Waterway Carefree 16" Top Mount Sand Filter | 1.4 Sq. Ft. 35 GPM | FS01619 Waterway Carefree 16" Top Mount Sand Filter | 1.4 Sq. Ft. 35 GPM | FS01619 Waterway Carefree 16" Top Mount Sand Filter | 1.4 Sq. Ft. 35 GPM | FS01619
This item is currently out of stock.

Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Large Filter with Extra Sand-Holding Capacity
  • High Flow Internal Diffuser for Even Water Distribution
  • "Start/Service" Dial on Stainless Steel Pressure Gauge
  • 1-1/2" Drain Port Provides Easy Removal of Sand
  • 7-Position, Thread-On, Top Mount, 1-1/2" FPT Multi-Port Valve
  • Mounting base Included
RELATED ITEMS

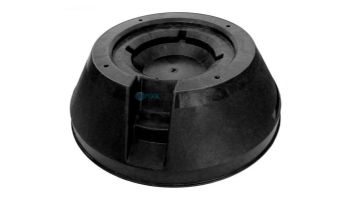

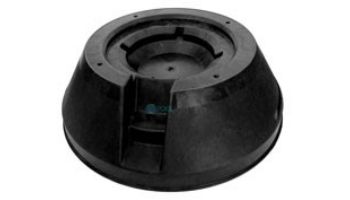

  • Waterway ClearWater/Carefree Modular Filter Base | 672-7211B
    Waterway ClearWater/Carefree Modular Filter Base | 672-7211B

    $45.59
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

    $295.00
  • Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B
    Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B

    $81.14
OVERVIEW
Carefree Top-Mount Sand Filters are designed for extra sand holding capacity. Made of corrosion-proof polymeric thermoplastic.

The Carefree Sand Filter offers the ideal combination of energy efficiency and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.

Carefree Sand Filters are designed and equipped to offer the ideal combination of trouble-free operation and crystal clear, sparkling water.

Features

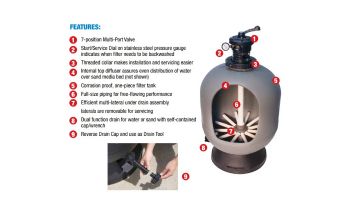

  • Large sand filter bodies for extra-long filtering cycles and heavy duty capacity
  • Fine-spray internal diffuser for even water distribution
  • 7-position, thread-on, top mount, 1-1/2" FPT Multi-Port Valve
  • 1-1/2" drain port provides easy removal of sand.
  • "Start/Service" Dial on stainless steel pressure gauge
  • Designed for fast, easy operation and maximum efficiency
  • 7- function Top-Mount 1-1/2" FPT Multi-Port Valve with Split-Nut Lock Union (WVS003)
  • Start/Service Dial on stainless steel pressure gauge indicates when filter needs to be backwashed
  • Threaded collar makes installation and servicing easier
  • Internal top diffuser assures even distribution of water over sand media bed (not shown)
  • Corrosion proof, one-piece filter tank
  • Full-size piping for free-flowing performance
  • Efficient multi-lateral under drain assembly laterals are removable for servicing
  • Dual function drain for water or sand with self-contained cap/wrench
  • Reverse Drain Cap and use as Drain Tool
Specifications:
  • Filter Type: High-rate Sand - No. 20 silica
  • Filter Tank: Molded polymeric
  • Under Drain: 360° self-cleaning slotted laterals threaded for ease of maintenance
  • Control Valve: 7-Position, top-mount, multi-port with lever-action handle
  • Valve Fastening: Split-nut thread design
  • Mounting Base: Molded thermoplastic

Pool Turnover
Multi-Port Valve Style Filtration Area Flow Rate 6 Hours 8 Hours 10 Hours Sand required
1 1/2" FPT Split-Nut 1.4 sq. ft. 35 GPM 12,600 16,800 21,000 100 lbs.



Brand: WATERWAY
SPECIFICATIONS
Tank Diameter
16"
Valve Position
Top
Square Foot
1.40
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
Register your product online at waterwayplastics.com.
