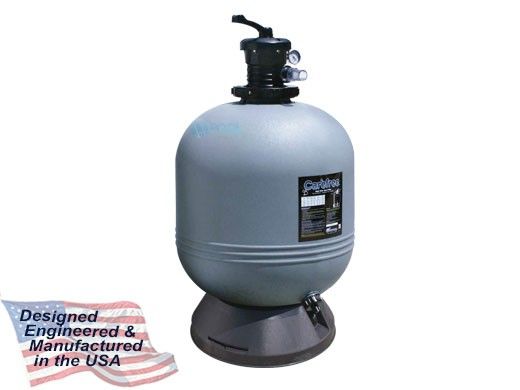

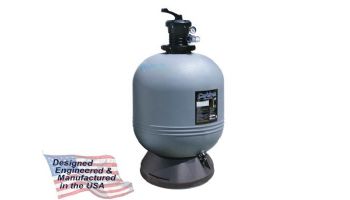

Waterway Carefree 22" Top Mount Sand Filter | 2.6 Sq. Ft. 55 GMP | FS02225

Waterway Carefree 22" Top Mount Sand Filter | 2.6 Sq. Ft. 55 GMP | FS02225 Waterway Carefree 22" Top Mount Sand Filter | 2.6 Sq. Ft. 55 GMP | FS02225 Waterway Carefree 22" Top Mount Sand Filter | 2.6 Sq. Ft. 55 GMP | FS02225
This item has been discontinued.

Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Large Filter with Extra Sand-Holding Capacity
  • High Flow Internal Diffuser for Even Water Distribution
  • "Start/Service" Dial on Stainless Steel Pressure Gauge
  • 1-1/2" Drain Port Provides Easy Removal of Sand
  • 7-Position, Thread-On, Top Mount, 1-1/2" FPT Multi-Port Valve
  • Mounting base Included
RELATED ITEMS
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
RELATED ITEMS
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

    Sale $315.00
    $285.00
  • Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B
    Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B

    $84.59
  • Waterway ClearWater/Carefree Modular Filter Base | 672-7211B
    Waterway ClearWater/Carefree Modular Filter Base | 672-7211B

    $45.59
OVERVIEW
Carefree Top-Mount Sand Filters are designed for extra sand holding capacity. Made of corrosion-proof polymeric thermoplastic.

The Carefree Sand Filter offers the ideal combination of energy efficiency and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.

Carefree Sand Filters are designed and equipped to offer the ideal combination of trouble-free operation and crystal clear, sparkling water.

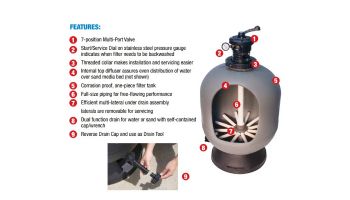

Features
  • Large sand filter bodies for extra-long filtering cycles and heavy duty capacity
  • Fine-spray internal diffuser for even water distribution
  • 7-position, thread-on, top mount, 1-1/2" FPT Multi-Port Valve
  • 1-1/2" drain port provides easy removal of sand.
  • "Start/Service" Dial on stainless steel pressure gauge
  • Designed for fast, easy operation and maximum efficiency
  • 7- function Top-Mount 1-1/2" FPT Multi-Port Valve with Split-Nut Lock Union (WVS003)
  • Start/Service Dial on stainless steel pressure gauge indicates when filter needs to be backwashed
  • Threaded collar makes installation and servicing easier
  • Internal top diffuser assures even distribution of water over sand media bed (not shown)
  • Corrosion proof, one-piece filter tank
  • Full-size piping for free-flowing performance
  • Efficient multi-lateral under drain assembly laterals are removable for servicing
  • Dual function drain for water or sand with self-contained cap/wrench
  • Reverse Drain Cap and use as Drain Tool
Specifications:
  • Filter Type: High-rate Sand - No. 20 silica
  • Filter Tank: Molded polymeric
  • Under Drain: 360° self-cleaning slotted laterals threaded for ease of maintenance
  • Control Valve: 7-Position, top-mount, multi-port with lever-action handle
  • Valve Fastening: Split-nut thread design

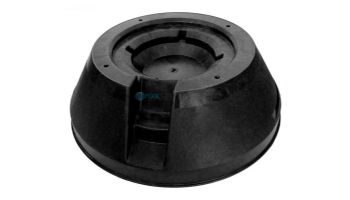

  • Mounting Base: Molded thermoplastic
Pool Turnover
Multi-Port Valve Style Filtration Area Flow Rate 6 Hours 8 Hours 10 Hours Sand required
1 1/2" FPT Split-Nut 2.6 sq. ft. 55 GPM 19,800 26,400 33,000 250 lbs.



Brand: WATERWAY
SPECIFICATIONS
Tank Diameter
22"
Valve Position
Top
Square Foot
2.6
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions
Can it be used for saltwater pool?
A shopper on Jul 4, 2020
I have a waterway carefree 22 inch sand filter and im trying to find what hose adapter to use to connect from filter to pump?
Leslie B on Apr 4, 2020
REVIEWS
1.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
0
0
0
1
Rated 1 out of 5
Poor service from filter supplier
Filter looks good. Took 4 weeks to get it. Shipped without the 7 position valve. Been trying for 1.5 weeks to get that now. Response from filter supplier is very poor. Pool is now very green since can’t use filter
June 3, 2020
Purchased
1 year ago
RESOURCES
WARRANTY
Register your product online at waterwayplastics.com.
