Home Pool Swimming Pool & Spa Pumps Waterway Pool & Spa Pumps Waterway SVL56 High Flow 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | SVL56S-110
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

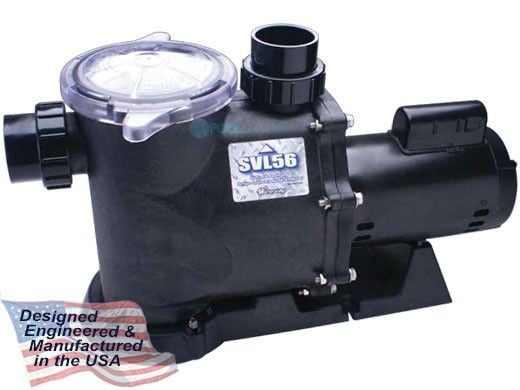

Waterway SVL56 High Flow 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | SVL56S-110

Waterway SVL56 High Flow 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | SVL56S-110 Waterway SVL56 High Flow 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | SVL56S-110 Waterway SVL56 High Flow 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | SVL56S-110 Waterway SVL56 High Flow 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | SVL56S-110
This item has been discontinued.

Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Extremely Quiet Operation
  • Large Trap Basket with Cam-Lock Lid
  • SVL56 Impeller Provides 24-Feet of Lift Above Water Level
  • True 56-Frame Motor for Cooler Running and Longer Life
  • 2" or 2-1/2" Intake and Discharge Port Choices
Q & A
The extraordinary quietness of the SVL56 moves us nearer to the goal of silent operation, and it provides by far the best vertical lift. A true 56-frame motor ensures long life and uninterrupted power.
The SVL56 inground pool pump is a quiet, easy to service, traditional pool pump with all the proven state-of-the-art features. This pump has been designed for pool, pool and spa combos, and as a booster pump for waterfalls or in-floor clearing systems. For ease of service, dependability, and selection of plumbing and motor styles, the SVL56 is your pump of choice.
The SVL56 inground pump, with its extraordinary quietness, moves nearer to the goal of silent operation. It provides the best vertical lift by far, with a true 56-frame motor to ensure long life and uninterrupted power. Attention to detail is evident in the design of this all-new pump. Made for easy serviceability and installation, the SVL56 accepts either 2" or 2-1/2" plumbing connection, and features dual bearings, resulting in cooler operating temperatures for years of trouble-free performance.
A Real Time Saver
The clear-view, one-piece lid design simplifies inspection of and access to the strainer. The SVL56 has one of the largest strainer baskets available for extra debris holding capacity.
Designed for Durability
The one-piece strainer pot and volute is made of high temperature thermoplastic to withstand extreme heat and corrosion. The one-piece design increases strength, reduces noise, and eliminates potential air leaks associated with a two-piece design.
The Choice is Yours
With the SVL56 pump, you have 2" female threads and 2-1/2" union threads. Included with each SVL56 pump are two 2-1/2" unions and two 2" unions. Plumbing choices are 2" x 2", 2-1/2" x 2-1/2", or some builders prefer 2" on discharge and 2-1/2" on intake. With the SVL56, you decide.
Vertical Lift
The SVL56 diffuser is one of the largest in the industry. Its unique design improves flow and reduces noise. The diffuser also aids the impeller in the superior priming and vertical water lift of the SVL56 pump.
Something to Talk About
The impeller design, combined with the diffuser, is the reason we have the best suction lift in the industry. The SVL56 is self-priming up to 24 feet. Most pumps are between 6-8 feet, which means they are working harder, and subject to more wear and tear on the pump. While other manufacturers brag about 10 feet of lift, the SVL56 pump provides 24 feet of lift above water level.
Safe and Efficient Motor
Besides offering energy saver or standard efficiency motors in all sizes, we use switchless, square-flange 56-frame motors, which have more mounting surface than a "C" face motor. The shaft is slotted for a screwdriver for easy maintenance on impellers. The metal-covered capacitor is on top of the motor where it belongs, eliminating the need for a breakable plastic bell cap on the back of the motor. A child cannot accidentally open the pump body because we don't depend on a twist-lock to seal the body. The square-flange motor bolts onto the seal plate which bolts onto the strainer pot volute.
  • Extremely quiet operation
  • Self-priming
  • Vertical lift of 24 ft.
  • Easy to service
  • True 56-frame motor for cooler running and longer life
  • 2-1/2" union threads x 2" FPT with unions (included)
  • Large trap basket with cam-lock lid
  • 60 Hz rating
  • Silicone carbide seals
  • One-piece, cam-lock, clear-view lid
  • One-piece strainer pot and volute
  • Extra large leaf basket
  • Large diffuser improves flow and reduces noise
  • SVL56 impeller provides 24 feet of lift above water level

1 HP
Single Speed
Pipe Size
