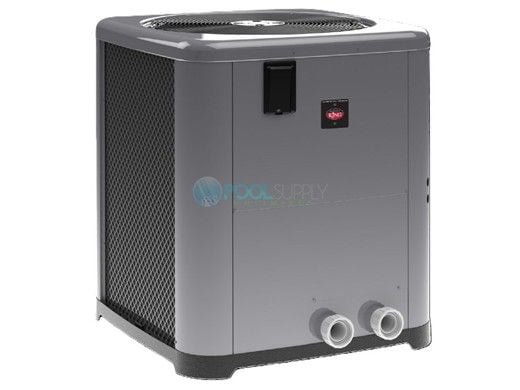

WeatherKing by Raypak Pool and Spa Heat Pump | 118,000 BTU Heat Only | Spiral Titanium Tube Heat Exchanger | Digital Controls | TWPH-6560EHT01

Name: WeatherKing by Raypak Pool and Spa Heat Pump | 118,000 BTU Heat Only | Spiral Titanium Tube Heat Exchanger | Digital Controls | TWPH-6560EHT01
Brand: Raypak
SKU: 199262
Availability: InStock

$3,398.00

WeatherKing by Raypak Pool and Spa Heat Pump | 118,000 BTU Heat Only | Spiral Titanium Tube Heat Exchanger | Digital Controls | TWPH-6560EHT01

Pool & Spa Heat Pump Model TWPH-6560

WeatherKing's pool heat pump features several innovations that improve dependability and efficiency.

Heat Exchanger

Spiral Titanium Tube Heat Exchanger

Our spiral titanium tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and Increases efficiency by performing a "scoop-and-lift" action.

Plumbing Connections

Off-set 2PVC union connections are included for ease of installation.

Evaporator Coil

Large Air Coils

Raised lanced-fin design maximizes heating at lower temperatures. From the proper fins per inch to advanced distribution circuiting, WeatherKing engineered coils are highly optimized to meet our specific design requirements.

Cabinet

Powder-Coated Steel Cabinet

Polyester powder-coated, non-corrosive cabinet is more durable than plastic heat pump cabinets.

Compressor

Scroll Compressor

Scroll compressors are quiet and efficient compared to piston type compressors. They provide higher efficiency, lower sound levels, superior durability and unsurpassed reliability. The unique design of a scroll compressor actually wears in over time, not out!

Sound Isolation Pads

Prevents sound transfer to equipment pad and elevates the base pan to improve water drainage.

Digital Controls

Pool/Spa Control

Your digital heat pump pool heater can be set to different target temperatures. Dial in just the right spa temperature and never have to adjust it again. The pool can be set to a lower, more energy saving temperature.

Remote Compatible

The digital heat pump pool heater can be easily controlled by most two-wire and three wire remote systems.

On Board Diagnostics

Tells the homeowner if there is a problem. Provides the service technician with detailed diagnostic information.

Model	TWPH-6560EHT01
Model Type	Heat Only
Max. Capacity (BTUH)	118,000
C.O.P	6.0
Rated Flow Capacity (GPM	49.5
Indoor/Outdoor	Outdoor
Residential/ Commercial	Residential
Heat Exchanger Material	Titanium
Refrigerant Type	R410A
Heating Capacity (kW)	34.5
Rated Outlet Water Temp	104F
Fan Type	1-speed, 1-Ph/60Hz/240V motor, 4 blade fan
Min. Water Supply Flow (GPM)	30
Max. Water Supply Flow (GPM)	60

Brand: Raypak

REVIEWS

Q&A

PARTS

WeatherKing by Raypak Pool and Spa Heat Pump | 118,000 BTU Heat Only | Spiral Titanium Tube Heat Exchanger | Digital Controls | TWPH-6560EHT01

$3,398.00

Quantity

Free Shipping

Parts Available

Platinum Preferred Manufacturer

Product description

Pool & Spa Heat Pump Model TWPH-6560

WeatherKing's pool heat pump features several innovations that improve dependability and efficiency.

Heat Exchanger

Spiral Titanium Tube Heat Exchanger

Plumbing Connections

Off-set 2PVC union connections are included for ease of installation.

Evaporator Coil

Large Air Coils

Cabinet

Powder-Coated Steel Cabinet

Polyester powder-coated, non-corrosive cabinet is more durable than plastic heat pump cabinets.

Compressor

Scroll Compressor

Sound Isolation Pads

Prevents sound transfer to equipment pad and elevates the base pan to improve water drainage.

Digital Controls

Pool/Spa Control

Remote Compatible

The digital heat pump pool heater can be easily controlled by most two-wire and three wire remote systems.

On Board Diagnostics

Tells the homeowner if there is a problem. Provides the service technician with detailed diagnostic information.

Model	TWPH-6560EHT01
Model Type	Heat Only
Max. Capacity (BTUH)	118,000
C.O.P	6.0
Rated Flow Capacity (GPM	49.5
Indoor/Outdoor	Outdoor
Residential/ Commercial	Residential
Heat Exchanger Material	Titanium
Refrigerant Type	R410A
Heating Capacity (kW)	34.5
Rated Outlet Water Temp	104F
Fan Type	1-speed, 1-Ph/60Hz/240V motor, 4 blade fan
Min. Water Supply Flow (GPM)	30
Max. Water Supply Flow (GPM)	60

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
