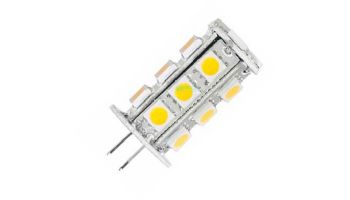

ProLED JC G4 Bi-Pin Series - LED Lamps
Specifications:
- 20 times the life and 88% more efficient than a 20W Halogen JC (1)
- 10-24V range eliminates voltage drop calculation
- Energy efficient
- RoHS compliant
- Omnidirectional distribution for smooth, even light
- High power LED option replaces a variety of halogen lamps
- 82 CRI for quality and consistent color rendering
|
Watt
|
Base |
Product
Number |
Product
Code |
Description |
Volts |
Color
Temperature |
CRI |
Lumens |
Useful
Life* |
MOL |
Equivalent
Wattage |
|
2.4 |
G4 |
80690 |
JC20/2WW/LED |
Omnidirectional |
10-24 |
3000k |
82 |
250 |
30,000 |
1.81" |
20 |
|
4.5 |
GY6.35 |
80830 |
JC35/4WW/LED |
Omnidirectional |
10-18 |
3000k |
82 |
450 |
30,000 |
1.65" |
35 |
* |
5.5 |
GY6.35 |
81997 |
JC50/5WW/LED |
Omnidirectional |
10-18 |
3000k |
82 |
550 |
30,000 |
1.71" |
50 |
*New item!
Useful Life is defined as the point in time at which the lamp will maintain at least 70% of its initial lumens. The lamp will continue to burn past this point, but at decreased light levels.
May not be compatible with all electronic transformers.

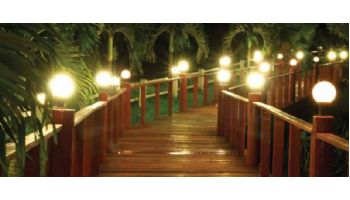

Not for use in enclosed fixtures. Suitable for use in sealed metal landscape fixtures. standard JC lamps require protection from elements.

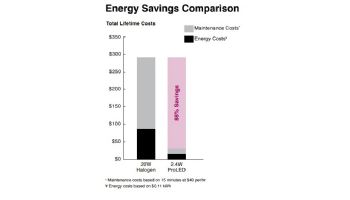

(1) Energy savings based on $0.11 kWh over the life of the ProLED lamp.
