Gecko In YE-5 In K-450-3OP Keypad & Cables Control Bundle | BDLYE5K450 0610-300003

Name: Gecko In YE-5 In K-450-3OP Keypad & Cables Control Bundle | BDLYE5K450 0610-300003
Brand: GECKO
SKU: 151929
Availability: InStock

$664.57

In.ye is the Perfect Solution to Bring Your Spa to the Next Level

in.ye control systems are designed to fit in perfectly and to be easily installed, powered and connected to pumps and accessories of spas of all sizes and configurations. Like all other platforms of Gecko's Y series, in.ye is compatible to a wide selection of keypads and auto-detects the selected keypad model.

in.ye control systems deliver optimal performance and total control giving spa owners the immediate satisfaction of getting a lot more than what they expected from their spas.

in.ye control systems open up to the addition of wireless control from mobile devices, water sanitization, audio streaming and more to increase the quality of the spa experience.

in.ye-5 supports 5 configurable outputs, a 4kW heater and a standard 12V light. Ideal for entry level to mid-range spas with pump 1 with 1 or 2 speeds, pump 2 with 1 or 2 speed, blower or circ. pump or ozonator.

Features:

Built in Heater Probes
Programmable via Keypad
Self Diagnostic and Solid State Water Flow Detection
WiFi Ready- In.Touch 2 (Sold Separately AI #3-90-0161 / MFG #0608-521020)

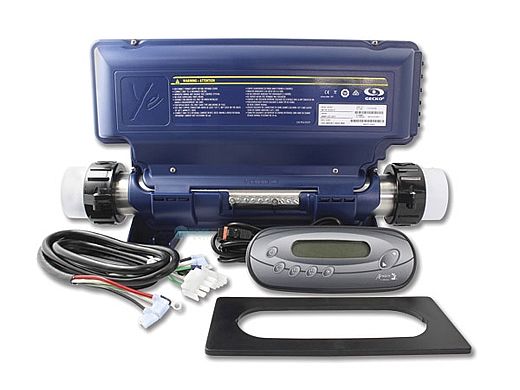

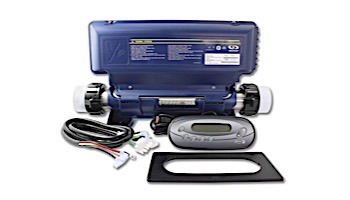

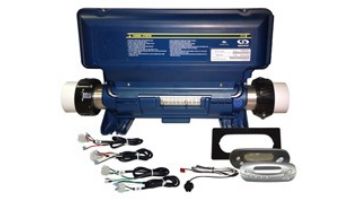

Bundle Includes:

AI #3-72-7034 / MFG #0610-221046-355
Control: IN.YE-5

AI #3-00-7248 / MFG #BDLK4503OP
Topside Bundle with Overlay: In.K450

AI #5-30-7025 / MFG #95100519 (x2)
Dual Speed Amp Cords

AI #5-30-7026 / MFG #95100517 (x2)
Single Speed Amp Cords

AI #5-30-6003 / MFG #9920-400489
Light Socket with 8' Cable, MTA-156 3-PIN

AI #3-05-7245 / MFG #9917-102123
Adapter Plate

Operates:

Convertible 120/240V
Heater: 1.0/4.0KW
Pump 1: 1 or 2 Speed 120/240V
Pump 2: 1 or 2 Speed 120/240V
Blower/Pump3: 1 Speed 120/240V
Circ: 120/240V (see note)
Light: 12V
Ozone: 120/240V (see note)

Note:

If using both Circ and Ozone, must be in same voltage and will need AMP Splitter Harness

(Sold Separately) AI #5-60-6071 / MFG #9920-401369

Replacement Option For:

MFG #BDLYE5K450
BL-70
AI #34-5007 BL-70 Main Circuit Board
2017-2018 Allied Catalog Page # 49, 465

Brand: GECKO

REVIEWS

Q&A

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

Browse 1 question Browse 1 question and 1 answer

Will this system replace the Balboa 2000LE m7 in all functions? My spa has 3 pumps, one is 2 speed, the ozonator had a transformer that plugs into a cover plate on the outside of the spa. Can I change that setup and make it an internal component with this system? No blower. (YE-5 ln K-450-30P)

Sam H on Sep 23, 2016

BEST ANSWER: Hi i am not a spa mechanic or an electrician just a handy guy that can work with pvc and some electrical. I had a balboa system with 2 pumps one single and a 2 speed pump which i did replace with ye-5 no blower or ozone. I did have to modify the plumping to fit the heater and was able to get everything working following the diagram provided on there web site. the controller does have a 3rd pump button but i think its for a blower not a regular pump. I would look at the configuration sheet to see if it meets your needs and also give them a call they will let you know exactly which kit you will need.

Reply
Inaccurate
young l on Sep 23, 2016
Purchased on Oct 21, 2015
