The MultiWave is designed as a "plug and play" system! Install the water sensor and watch the MultiWave thermostat come alive to maintain your pool and/or spa water temperatures. Install the air sensor and watch the MultiWave freeze protection system come alive to protect your investment. Connect your equipment to the intelligent RS485 communication port and watch the MultiWave recognize and control your equipment with ease.
No more paying for costly software upgrades! Purchase the Intermatic MultiWave transceiver USB stick for your computer; and you can upgrade both the MultiWave handheld and controller software with ease. Locate the MultiWave upgrade file on our website for the latest software for your system. Download and wirelessly install the upgrade software to your handheld and controller with the USB stick. We are adding new manufacturers and expanding our control capabilities every day. If we don't recognize your equipment today, we will in the near future.

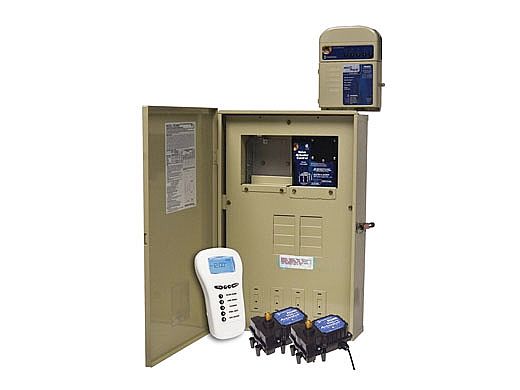

Combine the PE653 MultiWave controller with the PE953 MultiWave Hand Held Transceiver and prepare to automate your Pool/Spa and even your Home with the most technologically advanced wireless control system in the market today!
Standard Control Features
- Internal 24-hour digital clock
- Memory Back-Up
- Wireless Handheld Controller
- Backlit LCD readout
- Water Proof Hand Held
- Full Variable Speed Control
- Control Five Pool/Spa Functions
- Three ON/OFF Events Per Equipment
- 120VAC or 208/240VAC Input and Control
- Programmable Heater Cool
Optional Control Accessories
- Optional Freeze Protection with probe 178PA28A
- Optional Thermostat Control with Probe PA122
- Optional Actuator Control with Actuator Mechanism P4243ME
Wireless Hand-Held Transceiver (PE950)
The main function of the Wireless Hand-Held Transceiver is to transmit user commands to the Panel-Mounted Transceiver (PE650) and display the status of the equipment, pool and spa water temperature, pool and spa thermostat set point, heating status and overall communication status. The device can control up to five loads, typically:
- The three loads in the Three-Circuit Clock
- The two relays in the Valve/Pump Switch, usually water temperature controls for pool/spa
- The actuators that switch between pool and spa
The unit floats if thrown in the pool or spa, is water-submersible, shock resistant and requires three (3) AA batteries.
Expected battery life is approximately one year in typical use.
The Wireless Hand-Held Transceiver (PE950) can only communicate with the Panel-Mounted Transceiver (PE650) and Transceiver Repeater Module (HA04C) and is compatible with no other hardware. In addition, when the components of a specific system are linked together into a network, communication with another neighboring system cannot occur. Up to five PE950 units can be used in a single installation.
Three-Button Wired Remote Control (133PE1484A)
The Three-Button Wired Remote Control (133PE1484A) plugs into either the Three-Circuit Clock (P1353ME) or Valve/Pump Switch (P4243ME) and is normally installed as a spa-side remote. Most often the remote controls the filter pump, jets and lights, plus includes indicator lights on the face of the button. When installed as part of a system, it replaces the wireless method of controlling the three circuits within the mechanism. The Three-Button Wired Remote Control can also be installed where a third mechanism is needed in the enclosure, since the Wireless Hand-Held Transceiver (PE950) can only control two mechanisms.
