Home EC50C93S PERFLEX SYS DE 25SQFT 1.5HP W/HOSES Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

EC50C93S PERFLEX SYS DE 25SQFT 1.5HP W/HOSES Parts

Back to Product

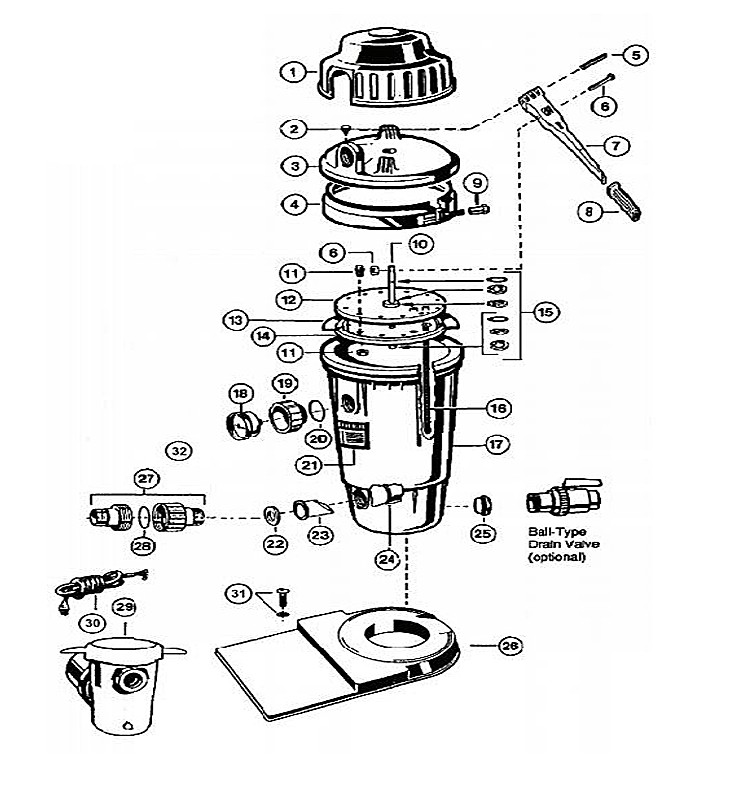

EC50C93S PERFLEX SYS DE 25SQFT 1.5HP W/HOSES Parts Schematic
1
Hayward Bump Mechanism Cover EC50AC | ECX5000D
Hayward Bump Mechanism Cover EC50AC | ECX5000D
Quantity:
$56.87

2
Hayward Directional Vent Valve with O-Ring | ECX1322A
Hayward Directional Vent Valve with O-Ring | ECX1322A
Quantity:
$10.22

3
Hayward Filter Head with Vent Valve | ECX5000BP
Hayward Filter Head with Vent Valve | ECX5000BP
Quantity:
$151.21

4
Hayward Clamp Assembly with Springs EC50AC | ECX5000C
Hayward Clamp Assembly with Springs EC50AC | ECX5000C
Quantity:
$165.32

5
Hayward Pivot Pin Perflex De Filter | ECX100Z9
Hayward Pivot Pin Perflex De Filter | ECX100Z9
Quantity:
$7.98

6
Hayward Bump Handle Screw Kit EC50 | ECX4236A
Hayward Bump Handle Screw Kit EC50 | ECX4236A
Quantity:
$9.76

7
Hayward Noryl Bump Handle Assembly | ECX1040
Hayward Noryl Bump Handle Assembly | ECX1040
Quantity:
$39.79

8
Hayward Bump Handle Grip | Noryl | ECX1037B
Hayward Bump Handle Grip | Noryl | ECX1037B
Quantity:
$13.89

9
Hayward Sleeve Nut 5/16"-18 | Nickel Plate | ECX360JN
Hayward Sleeve Nut 5/16"-18 | Nickel Plate | ECX360JN
Quantity:
$21.69

10
Hayward Bump Shaft 0.5" EC40AC/EC50AC | ECX5000F
Hayward Bump Shaft 0.5" EC40AC/EC50AC | ECX5000F
Quantity:
$47.47

11
Hayward Tube Sheet Bolt Set for Perflex DE Filters | SPX1500NYA
Hayward Tube Sheet Bolt Set for Perflex DE Filters | SPX1500NYA
Quantity:
$7.87

12
Hayward Top Tube Sheet | ECX1004A
Hayward Top Tube Sheet | ECX1004A
A Direct Replacement is available for this item.
This item has been discontinued.

13
Hayward Diaphragm Gasket for EC50AC/EC40AC | ECX5000G
Hayward Diaphragm Gasket for EC50AC/EC40AC | ECX5000G
Quantity:
$60.60

14
Hayward Tube Sheet for Bottom | ECX1004
Hayward Tube Sheet for Bottom | ECX1004
This item has been discontinued.

15
Hayward Shaft Kit for Perflex DE Filter | ECX1014A
Hayward Shaft Kit for Perflex DE Filter | ECX1014A
Quantity:
$18.39

16
Hayward Flex-Tube Assembly | ECX1032PAK10
Hayward Flex-Tube Assembly | ECX1032PAK10
Quantity:
$66.75

17
Hayward Filter Body with Flow Diffuser | ECX5000AP
Hayward Filter Body with Flow Diffuser | ECX5000AP
This item has been discontinued.

18
Hayward Back Mount Pressure Gauge | ECX27091
Hayward Back Mount Pressure Gauge | ECX27091
Quantity:
$29.58

19
Hayward Gauge Inspection Port Adapter | ECX12866
Hayward Gauge Inspection Port Adapter | ECX12866
Quantity:
$23.82

20
Hayward O-Ring for Gauge Adapter | ECX1287
Hayward O-Ring for Gauge Adapter | ECX1287
Quantity:
$9.15

23
Hayward Check Valve | ECX4077B1
Hayward Check Valve | ECX4077B1
Quantity:
$22.39

24
Hayward Flow Diffuser with Check Valve | ECX1256
Hayward Flow Diffuser with Check Valve | ECX1256
Quantity:
$40.94

25
Hayward 1.5" Drain Plug With O-Ring | SP1022C
Hayward 1.5" Drain Plug With O-Ring | SP1022C
Quantity:
$5.86

27
SP1480 USE HAY-25-1580 UNION 1-1/2" MIP SELF-ALIGN
SP1480 USE HAY-25-1580 UNION 1-1/2" MIP SELF-ALIGN
This item has been discontinued.

30
Hayward Cord 6' #14/3 AWG | SPX1250WA
Hayward Cord 6' #14/3 AWG | SPX1250WA
Quantity:
$32.90

31
Hayward Pump Mounting Screw with washer | ECX1108A
Hayward Pump Mounting Screw with washer | ECX1108A
Quantity:
$8.78

N/S
Hayward Trimline Ball Valve 1.5" Male Thread | SP0723
Hayward Trimline Ball Valve 1.5" Male Thread | SP0723
Quantity:
$34.77
