Home Hayward Super II Single Speed Pool Pump | 1HP Max Rated 115-230V | SP3007X10AZ Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Hayward Super II Single Speed Pool Pump | 1HP Max Rated 115-230V | SP3007X10AZ Parts

Back to Product

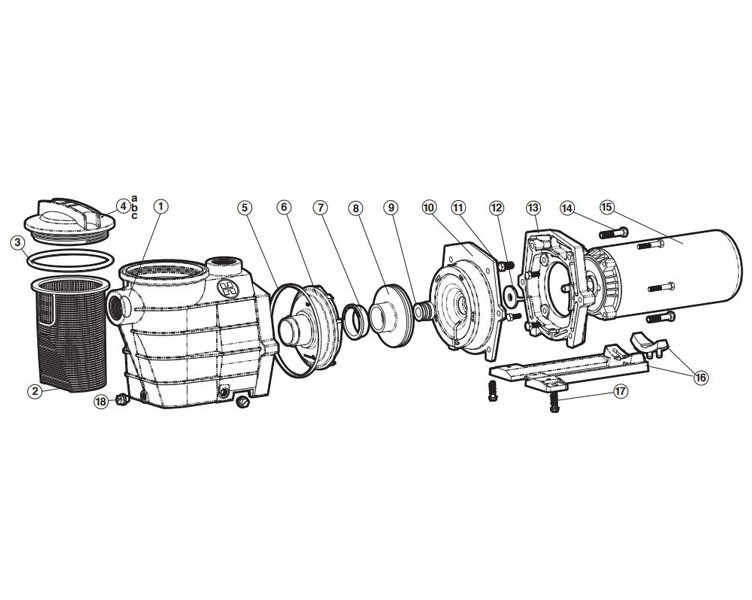

Hayward Super II Single Speed Pool Pump | 1HP Max Rated 115-230V | SP3007X10AZ Parts Schematic
1
Hayward Pump Housing and Strainer 1.5" | SPX3000AA
Hayward Pump Housing and Strainer 1.5" | SPX3000AA
Quantity:
$290.33

1
Hayward Strainer Housing | SPX3100AAZ
Hayward Strainer Housing | SPX3100AAZ
Quantity:
$290.33

1
Hayward Pump Housing/Strainer 2" x 2" | SPX3020AA
Hayward Pump Housing/Strainer 2" x 2" | SPX3020AA
Quantity:
$298.65

1
Hayward Super II 2" Threaded Style Strainer Housing with Drain Plugs | SPX3120AAZ
Hayward Super II 2" Threaded Style Strainer Housing with Drain Plugs | SPX3120AAZ
Quantity:
$290.19

2
Hayward Strainer Basket | SPX3000M
Hayward Strainer Basket | SPX3000M
Quantity:
$24.36

3
Hayward Strainer Cover O-Ring | SPX3000S
Hayward Strainer Cover O-Ring | SPX3000S
Quantity:
$19.91

4a
Hayward Clear Strainer Cover | SPX3000D
Hayward Clear Strainer Cover | SPX3000D
Quantity:
$63.62

4b
Hayward Strainer Cover Thread-in Style | SPX3100D
Hayward Strainer Cover Thread-in Style | SPX3100D
Quantity:
$63.02

4c
Hayward Strainer Cover Super II Biguan | SPX3100DB
Hayward Strainer Cover Super II Biguan | SPX3100DB
Quantity:
$63.62

5
Hayward Housing Gasket Kit for Super II Pump | SPX3000T
Hayward Housing Gasket Kit for Super II Pump | SPX3000T
Quantity:
$15.47

6
Hayward Super II Diffuser | 0.5 - 1.5HP | SPX2600B
Hayward Super II Diffuser | 0.5 - 1.5HP | SPX2600B
Quantity:
$39.77

6
Hayward Diffuser | 0.5-1.5HP Full Rate 0.75-2HP Max Rate | SPX3000BN
Hayward Diffuser | 0.5-1.5HP Full Rate 0.75-2HP Max Rate | SPX3000BN
Quantity:
$41.36

7
Hayward Super II Impeller Ring | 0.75HP - 3HP | SPX3005R
Hayward Super II Impeller Ring | 0.75HP - 3HP | SPX3005R
Quantity:
$11.66

8
Hayward Super Pump Impeller | 0.75HP FR 1HP MR | SPX2607C
Hayward Super Pump Impeller | 0.75HP FR 1HP MR | SPX2607C
Quantity:
$40.48

8
Hayward Impeller .75HP FR/1HP MR | SPX3007C
Hayward Impeller .75HP FR/1HP MR | SPX3007C
Quantity:
$42.41

9
Hayward Shaft Seal Assembly | SPX1600Z2
Hayward Shaft Seal Assembly | SPX1600Z2
Quantity:
$29.42

10
Hayward Seal Plate | SPX3020E
Hayward Seal Plate | SPX3020E
Quantity:
$52.41

11
Hayward Super II Motor Cap Screw | 4 Pack | SPX0125Z44
Hayward Super II Motor Cap Screw | 4 Pack | SPX0125Z44
Quantity:
$14.45

12
Hayward Slinger for Motor Shaft | SPX0125F
Hayward Slinger for Motor Shaft | SPX0125F
Quantity:
$7.90

13
Hayward Motor Mounting Plate | SPX3000F
Hayward Motor Mounting Plate | SPX3000F
Quantity:
$51.84

14
Hayward Housing Cap Screw | SPX1600Z4
Hayward Housing Cap Screw | SPX1600Z4
Quantity:
$10.84

16
Hayward Mounting Bracket with Adapter | SPX3000GA
Hayward Mounting Bracket with Adapter | SPX3000GA
Quantity:
$46.22

17
Hayward Mounting Foot Cap Screw | Set of 2 | SPX1600Z52
Hayward Mounting Foot Cap Screw | Set of 2 | SPX1600Z52
Quantity:
$10.40

18
Hayward .25" Drain Plug for Super/Super II | (1991 Prior) | SPX1600V
Hayward .25" Drain Plug for Super/Super II | (1991 Prior) | SPX1600V
Quantity:
$5.67

18
Hayward Drain Plug with O-Ring | SPX4000FG
Hayward Drain Plug with O-Ring | SPX4000FG
Quantity:
$9.55

Motor
Hayward Threaded Shaft Motor | 115/230V 1HP | SPX1607Z1M
Hayward Threaded Shaft Motor | 115/230V 1HP | SPX1607Z1M
Quantity:
$313.73

N/A
Hayward Pump Strainer Tool 6-1/2" Lid | SP3100T
Hayward Pump Strainer Tool 6-1/2" Lid | SP3100T
Quantity:
$29.79

N/A
Hayward Super Pump Diffuser Gasket | SPX1600R
Hayward Super Pump Diffuser Gasket | SPX1600R
Quantity:
$7.93

N/A
Hayward Super II Pump H-Kit Quick Pump Repair | SPXHKIT2
Hayward Super II Pump H-Kit Quick Pump Repair | SPXHKIT2
Quantity:
$35.72

N/A
Hayward Cap Screw Washer | 3/8" 6 Pack | SPX3000Z26
Hayward Cap Screw Washer | 3/8" 6 Pack | SPX3000Z26
Quantity:
$9.92
