Hayward Super II Single Speed Pool Pump | 3HP 3.45THP Full Rated 230-460V Three Phase | SP303063AZ Parts

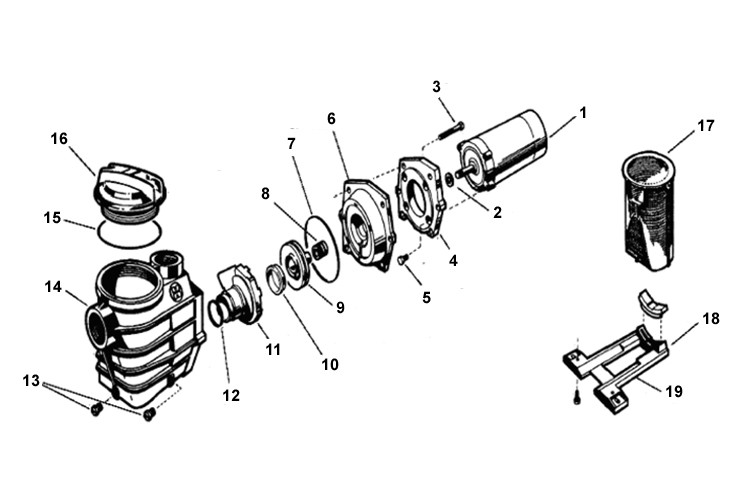

Hayward Super II Single Speed Pool Pump | 3HP 3.45THP Full Rated 230-460V Three Phase | SP303063AZ Parts Schematic
1
Hayward 3HP Threaded Shaft 3 Phase Motor | 230/460 | SPX0160Z1D
Hayward 3HP Threaded Shaft 3 Phase Motor | 230/460 | SPX0160Z1D
Quantity:
$752.03

2
Hayward Slinger for Motor Shaft | SPX0125F
Hayward Slinger for Motor Shaft | SPX0125F
Quantity:
$7.90

3
Hayward Housing Cap Screw | SPX1600Z4
Hayward Housing Cap Screw | SPX1600Z4
Quantity:
$10.84

4
Hayward Motor Mounting Plate | SPX3000F
Hayward Motor Mounting Plate | SPX3000F
Quantity:
$51.84

5
Hayward Super II Motor Cap Screw | 4 Pack | SPX0125Z44
Hayward Super II Motor Cap Screw | 4 Pack | SPX0125Z44
Quantity:
$14.45

6
Hayward Seal Plate | SPX3020E
Hayward Seal Plate | SPX3020E
Quantity:
$52.41

7
Hayward Housing Gasket Kit for Super II Pump | SPX3000T
Hayward Housing Gasket Kit for Super II Pump | SPX3000T
Quantity:
$15.47

8
Hayward Shaft Seal Assembly | SPX1600Z2
Hayward Shaft Seal Assembly | SPX1600Z2
Quantity:
$29.42

9
Hayward Impeller 3HP for Super II Pumps | SPX3026C
Hayward Impeller 3HP for Super II Pumps | SPX3026C
Quantity:
$55.31

10
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Quantity:
$10.20

11
Hayward Diffuser | 1.5-3HP Full Rate | SPX3021B
Hayward Diffuser | 1.5-3HP Full Rate | SPX3021B
Quantity:
$43.49

12
Hayward Super Pump Diffuser Gasket | SPX1600R
Hayward Super Pump Diffuser Gasket | SPX1600R
Quantity:
$7.93

13
Hayward Drain Plug with Gasket | 1/4" | SPX1700FG
Hayward Drain Plug with Gasket | 1/4" | SPX1700FG
Quantity:
$9.82

14
Hayward Super II 2" Threaded Style Strainer Housing with Drain Plugs | SPX3120AAZ
Hayward Super II 2" Threaded Style Strainer Housing with Drain Plugs | SPX3120AAZ
Quantity:
$290.19

15
Hayward Strainer Cover O-Ring | SPX3000S
Hayward Strainer Cover O-Ring | SPX3000S
Quantity:
$19.91

16
Hayward Strainer Cover Thread-in Style | SPX3100D
Hayward Strainer Cover Thread-in Style | SPX3100D
Quantity:
$63.02

17
Hayward Strainer Basket | SPX3000M
Hayward Strainer Basket | SPX3000M
Quantity:
$24.36

18
Hayward Adapter 48 frame Motors | SPX3000Q
Hayward Adapter 48 frame Motors | SPX3000Q
Call us to order.

19
Hayward Mounting Bracket with Adapter | SPX3000GA
Hayward Mounting Bracket with Adapter | SPX3000GA
Quantity:
$46.22
