Home Hayward TriStar Energy Efficient Single Speed Pool Pump | 1HP Max Rate 115/230V | SP3207X10 Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

Hayward TriStar Energy Efficient Single Speed Pool Pump | 1HP Max Rate 115/230V | SP3207X10 Parts

Back to Product

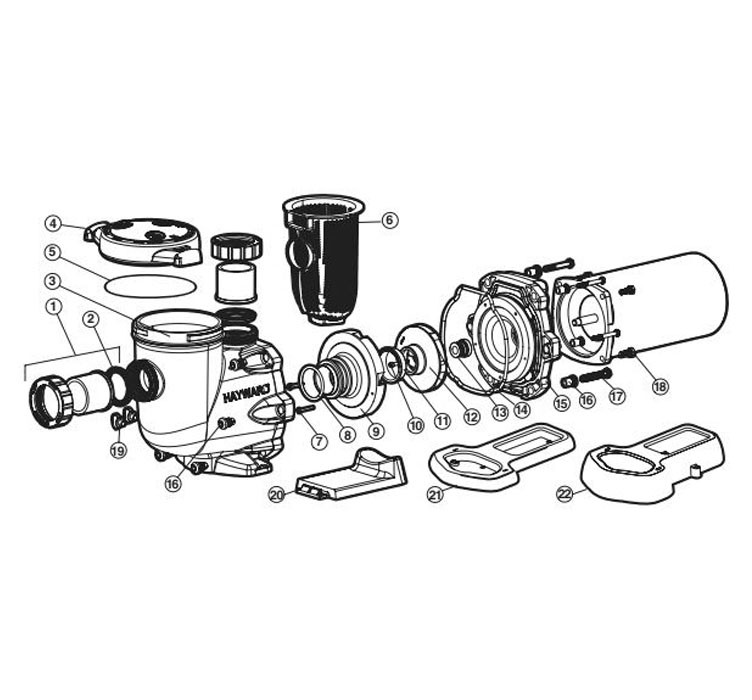

Hayward TriStar Energy Efficient Single Speed Pool Pump | 1HP Max Rate 115/230V | SP3207X10 Parts Schematic
Motor
Hayward Motor Square Flange | 1HP Max Rate | SPX3207Z1MR
Hayward Motor Square Flange | 1HP Max Rate | SPX3207Z1MR
Quantity:
$232.21

1
Hayward Union Connector Kit | SPX3200UNKIT
Hayward Union Connector Kit | SPX3200UNKIT
Quantity:
$43.13

2
Hayward Union Gasket | 50D EPDM | 2 Pack | SPX3200UG
Hayward Union Gasket | 50D EPDM | 2 Pack | SPX3200UG
Quantity:
$16.12

3
Hayward TriStar Pump Strainer Housing Assembly | SPX3200A
Hayward TriStar Pump Strainer Housing Assembly | SPX3200A
Quantity:
$232.93

4
Hayward TriStar Strainer Cover Kit | SPX3200DLS
Hayward TriStar Strainer Cover Kit | SPX3200DLS
Quantity:
$70.34

5
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Quantity:
$17.84

6
Hayward TriStar Strainer Basket | SPX3200M
Hayward TriStar Strainer Basket | SPX3200M
Quantity:
$21.73

7
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Quantity:
$13.99

8
Hayward Diffuser O-Ring | SPX4000Z1
Hayward Diffuser O-Ring | SPX4000Z1
Quantity:
$15.96

9
Hayward TriStar Diffuser | SPX3200B3
Hayward TriStar Diffuser | SPX3200B3
Quantity:
$38.55

10
Hayward TriStar Impeller Screw | SPX3200Z1
Hayward TriStar Impeller Screw | SPX3200Z1
Quantity:
$12.05

11
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Quantity:
$10.34

12
Hayward TriStar Impeller with Screw | 0.75HP Full Rate | SPX3207CM
Hayward TriStar Impeller with Screw | 0.75HP Full Rate | SPX3207CM
Quantity:
$33.37

13
Hayward OEM Shaft Seal Assembly | SPX3200SA
Hayward OEM Shaft Seal Assembly | SPX3200SA
Quantity:
$28.17

14
Hayward TriStar O-Ring-Housing | SPX3200T
Hayward TriStar O-Ring-Housing | SPX3200T
Quantity:
$13.77

15
Hayward TriStar Seal Plate | SPX3200E
Hayward TriStar Seal Plate | SPX3200E
Quantity:
$46.25

16
Hayward TriStar Pump Housing Insert and Seal Plate Spacer Kit | SPX3200Z211
Hayward TriStar Pump Housing Insert and Seal Plate Spacer Kit | SPX3200Z211
Quantity:
$27.41

17
Hayward TriStar Housing Bolt | SPX3200Z3
Hayward TriStar Housing Bolt | SPX3200Z3
Quantity:
$7.95

18
Hayward Tristar Pump Motor Bolt | SPX3200Z5
Hayward Tristar Pump Motor Bolt | SPX3200Z5
This item has been discontinued.

19
Hayward Drain Plug with Gasket | SPX4000FG
Hayward Drain Plug with Gasket | SPX4000FG
Quantity:
$7.80

20
Hayward TriStar Motor Support Bracket | SPX3200GA
Hayward TriStar Motor Support Bracket | SPX3200GA
Quantity:
$38.99

21
Hayward TriStar Riser Base | SPX3200WF
Hayward TriStar Riser Base | SPX3200WF
Quantity:
$37.61

22
Hayward TriStar Base Tall Riser | SPX3200SR
Hayward TriStar Base Tall Riser | SPX3200SR
Quantity:
$36.91

7-18
Hayward TriStar Power End | 1HP Max Rate | SPX3207X10Z1PE
Hayward TriStar Power End | 1HP Max Rate | SPX3207X10Z1PE
Quantity:
$320.23

N/A
Hayward Tristar Pump H-Kit Quick Pump Repair | SPXHKIT100
Hayward Tristar Pump H-Kit Quick Pump Repair | SPXHKIT100
Quantity:
$33.55
