Home Hayward TriStar High Performance Single Speed Pool Pump | 2HP Max Rate 115/230V | SP3215X20 Parts

Hayward TriStar High Performance Single Speed Pool Pump | 2HP Max Rate 115/230V | SP3215X20 Parts

Back to Product

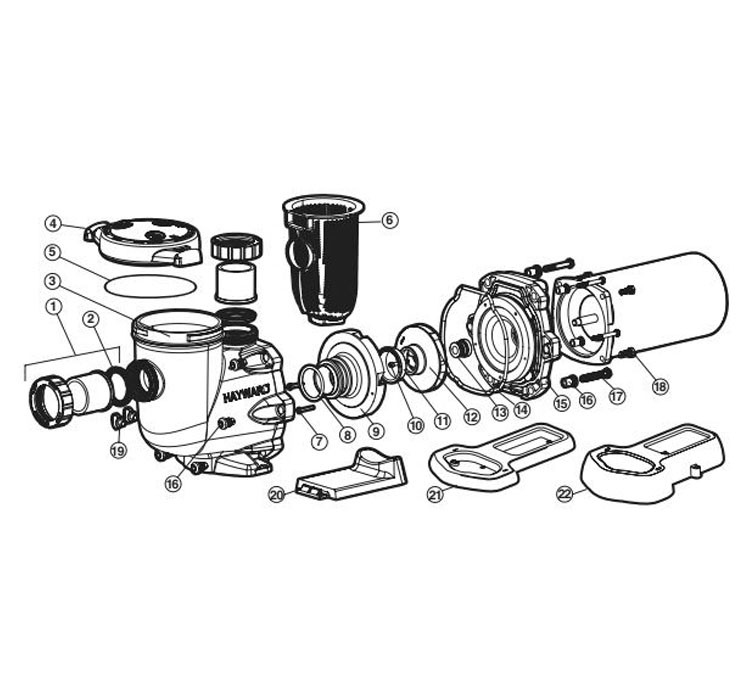

Hayward TriStar High Performance Single Speed Pool Pump | 2HP Max Rate 115/230V | SP3215X20 Parts Schematic
Motor
Hayward 2Hp MaxRate Motor Tristar Square Flange | SPX3215Z1MR
Hayward 2Hp MaxRate Motor Tristar Square Flange | SPX3215Z1MR
A Replacement is available for this item.
This item has been discontinued.

1
Hayward Union Connector Kit | SPX3200UNKIT
Hayward Union Connector Kit | SPX3200UNKIT
Quantity:
$55.56

2
Hayward Union Gasket | 50D Duro EPDM | 2-Pack | SPX3200UG
Hayward Union Gasket | 50D Duro EPDM | 2-Pack | SPX3200UG
Quantity:
$19.81

3
Hayward Pump Strainer Housing Assembly | 2" x 2.5" with Drain Plugs | SPX3200A
Hayward Pump Strainer Housing Assembly | 2" x 2.5" with Drain Plugs | SPX3200A
Quantity:
$303.64

4
Hayward Strainer Cover Kit | SPX3200DLS
Hayward Strainer Cover Kit | SPX3200DLS
Quantity:
$92.43

5
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Quantity:
$21.67

6
Hayward TriStar Strainer Basket | SPX3200M
Hayward TriStar Strainer Basket | SPX3200M
Quantity:
$27.40

7
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Quantity:
$18.74

8
Hayward Diffuser O-Ring | SPX4000Z1
Hayward Diffuser O-Ring | SPX4000Z1
Quantity:
$19.59

9
Hayward TriStar Diffuser | SPX3200B3
Hayward TriStar Diffuser | SPX3200B3
Quantity:
$47.25

10
Hayward TriStar Impeller Screw | SPX3200Z1
Hayward TriStar Impeller Screw | SPX3200Z1
Quantity:
$13.04

11
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Quantity:
$11.17

12
Hayward TriStar Impeller with Screw | 1.5HP | SPX3215C
Hayward TriStar Impeller with Screw | 1.5HP | SPX3215C
Quantity:
$51.44

13
Hayward Shaft Seal Assembly | SPX3200SA
Hayward Shaft Seal Assembly | SPX3200SA
Quantity:
$34.92

14
Hayward TriStar Housing O-Ring | SPX3200T
Hayward TriStar Housing O-Ring | SPX3200T
Quantity:
$18.42

15
Hayward TriStar Seal Plate | SPX3200E
Hayward TriStar Seal Plate | SPX3200E
Quantity:
$60.78

16
Hayward Housing Insert / Seal Plate Spacer Kit | SPX3200Z211
Hayward Housing Insert / Seal Plate Spacer Kit | SPX3200Z211
Quantity:
$32.69

17
Hayward TriStar Housing Bolt | SPX3200Z3
Hayward TriStar Housing Bolt | SPX3200Z3
Quantity:
$10.74

18
Hayward Tristar Pump Motor Bolt | SPX3200Z5
Hayward Tristar Pump Motor Bolt | SPX3200Z5
This item has been discontinued.

19
Hayward Drain Plug with O-Ring | SPX4000FG
Hayward Drain Plug with O-Ring | SPX4000FG
Quantity:
$10.46

20
Hayward TriStar Motor Support Bracket | SPX3200GA
Hayward TriStar Motor Support Bracket | SPX3200GA
Quantity:
$47.82

21
Hayward TriStar Riser Base | SPX3200WF
Hayward TriStar Riser Base | SPX3200WF
Quantity:
$46.11

22
Hayward TriStar Riser Base | SPX3200SR
Hayward TriStar Riser Base | SPX3200SR
Quantity:
$46.53

7-18
Hayward TriStar Power End | 2HP | SPX3215X20Z1PE
Hayward TriStar Power End | 2HP | SPX3215X20Z1PE
Quantity:
$531.17

N/A
Hayward Tristar Pump H-Kit Quick Pump Repair | SPXHKIT100
Hayward Tristar Pump H-Kit Quick Pump Repair | SPXHKIT100
Quantity:
$42.61
