Home Hayward TriStar High Performance Energy Efficient Pump | 208-230V 5HP FR | SP3250EE Parts

Hayward TriStar High Performance Energy Efficient Pump | 208-230V 5HP FR | SP3250EE Parts

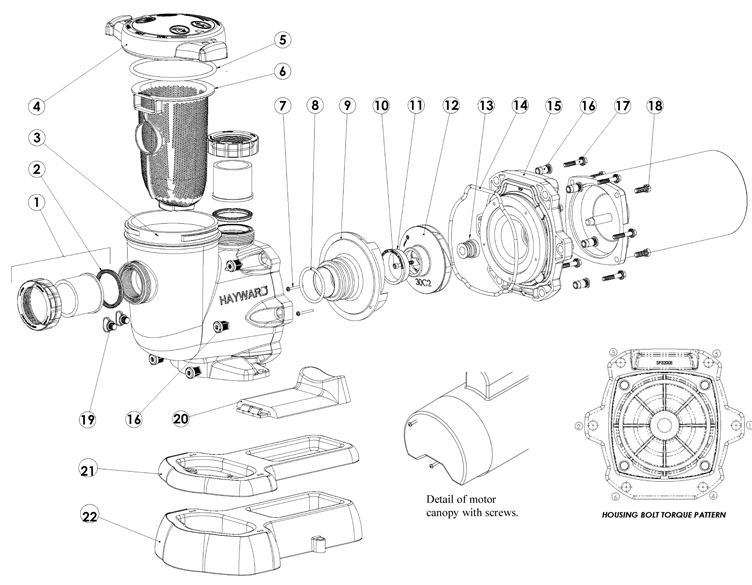

Hayward TriStar High Performance Energy Efficient Pump | 208-230V 5HP FR | SP3250EE Parts Schematic
motor
Replacement Square Flange Pool & Spa Motor | 3HP Energy Efficient | 56 Frame Full-Rated | 208-230V | B2844 | EB844
Replacement Square Flange Pool & Spa Motor | 3HP Energy Efficient | 56 Frame Full-Rated | 208-230V | B2844 | EB844
Quantity:
$509.79

4A
Hayward Strainer Cover Kit | SPX3200DLS
Hayward Strainer Cover Kit | SPX3200DLS
Quantity:
$98.51

1
Hayward Union Connector Kit | SPX3200UNKIT
Hayward Union Connector Kit | SPX3200UNKIT
Quantity:
$59.40

2
Hayward Union Gasket | 50D Duro EPDM | 2-Pack | SPX3200UG
Hayward Union Gasket | 50D Duro EPDM | 2-Pack | SPX3200UG
Quantity:
$21.09

3
Hayward Pump Strainer Housing Assembly | 2" x 2.5" with Drain Plugs | SPX3200A
Hayward Pump Strainer Housing Assembly | 2" x 2.5" with Drain Plugs | SPX3200A
Quantity:
$317.96

5
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Quantity:
$23.28

6
Hayward TriStar Strainer Basket | SPX3200M
Hayward TriStar Strainer Basket | SPX3200M
Quantity:
$29.43

7
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Quantity:
$18.44

8
Hayward Diffuser O-Ring | SPX4000Z1
Hayward Diffuser O-Ring | SPX4000Z1
Quantity:
$20.85

9
Hayward TriStar Diffuser | SPX3200B3
Hayward TriStar Diffuser | SPX3200B3
Quantity:
$50.54

10
Hayward TriStar Impeller Screw | SPX3200Z1
Hayward TriStar Impeller Screw | SPX3200Z1
Quantity:
$13.99

11
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Quantity:
$11.95

13
Hayward Shaft Seal Assembly | SPX3200SA
Hayward Shaft Seal Assembly | SPX3200SA
Quantity:
$35.65

14
Hayward TriStar Housing O-Ring | SPX3200T
Hayward TriStar Housing O-Ring | SPX3200T
Quantity:
$18.13

15
Hayward TriStar Seal Plate | SPX3200E
Hayward TriStar Seal Plate | SPX3200E
Quantity:
$65.49

17
Hayward TriStar Housing Bolt | SPX3200Z3
Hayward TriStar Housing Bolt | SPX3200Z3
Quantity:
$11.47

18
Hayward Tristar Pump Motor Bolt | SPX3200Z5
Hayward Tristar Pump Motor Bolt | SPX3200Z5
This item has been discontinued.

19
Hayward Drain Plug with O-Ring | SPX4000FG
Hayward Drain Plug with O-Ring | SPX4000FG
Quantity:
$11.17

20
Hayward TriStar Motor Support Bracket | SPX3200GA
Hayward TriStar Motor Support Bracket | SPX3200GA
Quantity:
$51.12

21
Hayward TriStar Riser Base | SPX3200WF
Hayward TriStar Riser Base | SPX3200WF
Quantity:
$49.67

22
Hayward TriStar Riser Base | SPX3200SR
Hayward TriStar Riser Base | SPX3200SR
Quantity:
$48.76
