Hayward Universal H-Series Low NOx Induced Draft Pool & Spa Heater | 200,000 BTU | Natural Gas | W3H200FDN Parts

Back to Product

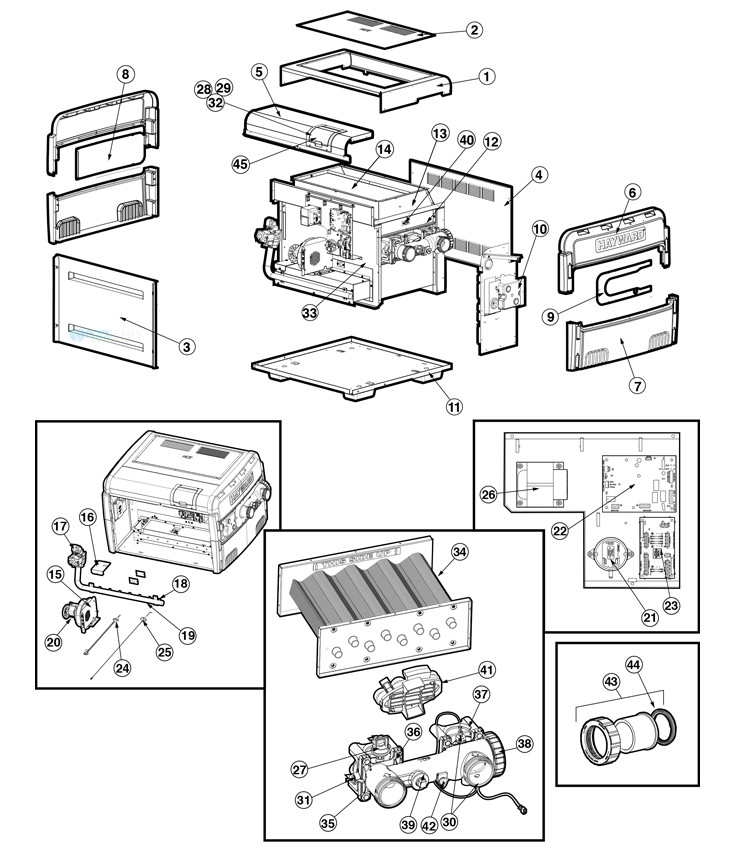

Hayward Universal H-Series Low NOx Induced Draft Pool & Spa Heater | 200,000 BTU | Natural Gas | W3H200FDN Parts Schematic
1
Hayward H-Series H200FD Jacket Top and Flue Cover | Tan | FDXLJKT1200
Hayward H-Series H200FD Jacket Top and Flue Cover | Tan | FDXLJKT1200
Quantity:
$146.58

2
Hayward Top/Flue Cover H200FD | FDXLTFC1200
Hayward Top/Flue Cover H200FD | FDXLTFC1200
Quantity:
$73.87

3
Hayward H-Series H200FD Front Access Door Assembly | Tan | FDXLFAD1201
Hayward H-Series H200FD Front Access Door Assembly | Tan | FDXLFAD1201
Quantity:
$139.03

5
Hayward H-Series H200FD Top and Front Panel | FDXLTFP1201
Hayward H-Series H200FD Top and Front Panel | FDXLTFP1201
Quantity:
$75.84

6
Hayward H-Series Upper End Cap | FDXLUEC1930
Hayward H-Series Upper End Cap | FDXLUEC1930
Quantity:
$79.85

7
Hayward H-Series Lower End Cap | FDXLLEC1930
Hayward H-Series Lower End Cap | FDXLLEC1930
Quantity:
$83.75

9
Hayward H-Series Right Trim Panel | FDXLRTP1930
Hayward H-Series Right Trim Panel | FDXLRTP1930
Quantity:
$73.49

10
Hayward H-Series Left Connection Box | FDXLLCB1930
Hayward H-Series Left Connection Box | FDXLLCB1930
Quantity:
$46.63

10
Hayward H-Series Right Connection Box | FDXLRCB1930
Hayward H-Series Right Connection Box | FDXLRCB1930
Quantity:
$43.59

11
Hayward H-Series Base Leg Replacement Kit | FDXLPBL1930
Hayward H-Series Base Leg Replacement Kit | FDXLPBL1930
Quantity:
$40.56

12
Hayward H-Series Flue Collector Side Panel with High Limit | FDXLFCS1931
Hayward H-Series Flue Collector Side Panel with High Limit | FDXLFCS1931
Quantity:
$42.39

13
Hayward H-Series H200FD Rainguard Assembly | FDXLRGK1201
Hayward H-Series H200FD Rainguard Assembly | FDXLRGK1201
Quantity:
$154.82

14
Hayward H-Series H200FD Heat Barrier Panel | FDXLHBP1200
Hayward H-Series H200FD Heat Barrier Panel | FDXLHBP1200
Quantity:
$82.63

16
Hayward H-Series Ignitor Access Cover Assembly Kit | FDXLIAC1930
Hayward H-Series Ignitor Access Cover Assembly Kit | FDXLIAC1930
Quantity:
$32.42

17
Hayward H-Series Natural Gas Valve | FDXLGSV0001
Hayward H-Series Natural Gas Valve | FDXLGSV0001
Quantity:
$202.91

18
Hayward H-Series Natural Gas Burner Orifice Kit | FDXLBON1930
Hayward H-Series Natural Gas Burner Orifice Kit | FDXLBON1930
Quantity:
$39.97

19
Hayward Conversion Kit | Propane to Natural Gas 200K BTU | Quick-Change H200FD | FDXLGCK1200PN
Hayward Conversion Kit | Propane to Natural Gas 200K BTU | Quick-Change H200FD | FDXLGCK1200PN
Quantity:
$146.71

20
Hayward H-Series Combustion Blower | FDXLBWR1930
Hayward H-Series Combustion Blower | FDXLBWR1930
Quantity:
$195.13

21
Hayward H-Series Blower Vacuum Switch | FDXLBVS1930
Hayward H-Series Blower Vacuum Switch | FDXLBVS1930
Quantity:
$34.48

22
Hayward Integrated Control Circuit Board | FD Models | FDXLICB1930
Hayward Integrated Control Circuit Board | FD Models | FDXLICB1930
Quantity:
$264.47

23
Hayward H-Series Field Wiring Panel | FDXLFWP1930
Hayward H-Series Field Wiring Panel | FDXLFWP1930
Quantity:
$55.81

24
Hayward Heater Ignitor Kit | FD Models | FDXLIGN1930
Hayward Heater Ignitor Kit | FD Models | FDXLIGN1930
Quantity:
$75.43

25
Hayward Flame Sensor for H-Series Low NOx Model Heaters | IDXLFLS1930
Hayward Flame Sensor for H-Series Low NOx Model Heaters | IDXLFLS1930
Quantity:
$58.47

26
Hayward H-Series Transformer 120/240V-24Vac | IDXL2TRF1930
Hayward H-Series Transformer 120/240V-24Vac | IDXL2TRF1930
Quantity:
$110.66

27
Hayward H-Series Water Pressure Switch | FDXLWPS1930
Hayward H-Series Water Pressure Switch | FDXLWPS1930
Quantity:
$35.82

28
Hayward Heater Display Board H-Series Low NOx Models | IDXL2DB1930
Hayward Heater Display Board H-Series Low NOx Models | IDXL2DB1930
Quantity:
$242.82

29
Hayward Bezel & Keypad Assembly Kit | FD Models | FDXLBKP1930
Hayward Bezel & Keypad Assembly Kit | FD Models | FDXLBKP1930
Quantity:
$73.47

29
Hayward Bezel and Keypad Assembly | Blue | FDXLBKP1932
Hayward Bezel and Keypad Assembly | Blue | FDXLBKP1932
Quantity:
$130.63

30
Hayward H-Series High Limit Kit | FDXLHLI1930
Hayward H-Series High Limit Kit | FDXLHLI1930
Quantity:
$50.24

31
Hayward H-Series Thermistor | FDXLTER1930
Hayward H-Series Thermistor | FDXLTER1930
Quantity:
$40.63

32
Hayward H-Series Bezel Top Gasket Kit | FDXLGSK1932
Hayward H-Series Bezel Top Gasket Kit | FDXLGSK1932
Quantity:
$31.44

33
Hayward H-Series Front/Air Box Gasket | FDXLGSK1934
Hayward H-Series Front/Air Box Gasket | FDXLGSK1934
Quantity:
$52.53

34
Hayward H-Series H200FD Heat Exchanger Assembly | FDXLHXA1200
Hayward H-Series H200FD Heat Exchanger Assembly | FDXLHXA1200
Quantity:
$753.63

35
Hayward H-Series Header Assembly | FDXLFHA1930
Hayward H-Series Header Assembly | FDXLFHA1930
Quantity:
$191.40

36
Hayward H-Series Header Hardware Kit | FDXLHDW1930
Hayward H-Series Header Hardware Kit | FDXLHDW1930
Quantity:
$41.69

37
Hayward H-Series Header Mounting Base Kit | FDXLHMB1930
Hayward H-Series Header Mounting Base Kit | FDXLHMB1930
Quantity:
$42.80

38
Hayward H-Series Bypass Cartridge Kit | FDXLBPK1930
Hayward H-Series Bypass Cartridge Kit | FDXLBPK1930
Quantity:
$39.79

39
Hayward H-Series 3/4" NPT Brass Drain Plug | CHXPLG1930
Hayward H-Series 3/4" NPT Brass Drain Plug | CHXPLG1930
This item has been discontinued.

40
Hayward Exhaust Gas Temperature Limit | FDXLEGL1930
Hayward Exhaust Gas Temperature Limit | FDXLEGL1930
Quantity:
$27.17

41
Hayward H-Series Return Manifold Replacement Kit | FDXLPRM1930
Hayward H-Series Return Manifold Replacement Kit | FDXLPRM1930
Quantity:
$51.65

42
Hayward Drain Plug with Gasket | SPX4000FG
Hayward Drain Plug with Gasket | SPX4000FG
Quantity:
$7.80

43
Hayward Union Connector Kit | SPX3200UNKIT
Hayward Union Connector Kit | SPX3200UNKIT
Quantity:
$43.13

44
Hayward Union Gasket | 50D EPDM | 2 Pack | SPX3200UG
Hayward Union Gasket | 50D EPDM | 2 Pack | SPX3200UG
Quantity:
$16.12

45
Hayward H-Series Keypad Cover Kit | FDXLKPC1930
Hayward H-Series Keypad Cover Kit | FDXLKPC1930
Quantity:
$21.61

45
Hayward Universal H-Series H200FD Control Panel & Bezel Kit | FDXLBCP1200
Hayward Universal H-Series H200FD Control Panel & Bezel Kit | FDXLBCP1200
Quantity:
$201.41
