Home Pool Pool & Spa Filters Jandy Pool & Spa Filters Jandy DEV Series DE Filter | 48 Sq Ft | Requires Backwash Valve | DEV48 Parts

Jandy DEV Series DE Filter | 48 Sq Ft | Requires Backwash Valve | DEV48 Parts

Back to Product

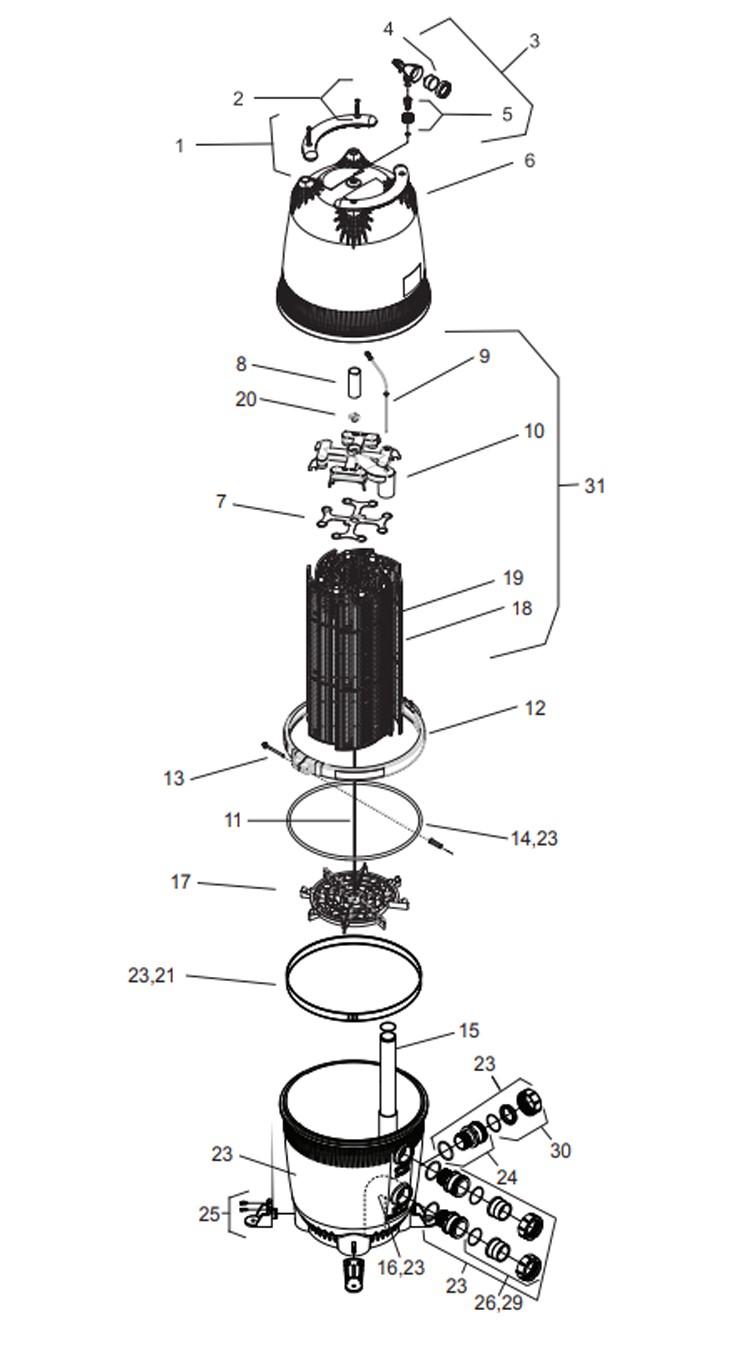

Jandy DEV Series DE Filter | 48 Sq Ft | Requires Backwash Valve | DEV48 Parts Schematic
1
Zodiac Jandy Handle Assembly with Hardware | 2-Set | R0357100
Zodiac Jandy Handle Assembly with Hardware | 2-Set | R0357100
Quantity:
$68.90

2
Zodiac Jandy Hardware Kit | 4-Set | R0359900
Zodiac Jandy Hardware Kit | 4-Set | R0359900
Quantity:
$57.21

3
Zodiac Jandy Pool Gauge - Air Release Assembly | R0357200
Zodiac Jandy Pool Gauge - Air Release Assembly | R0357200
Quantity:
$73.54

4
Pressure Gauge With O-Ring | R0359600
Pressure Gauge With O-Ring | R0359600
Quantity:
$40.96

5
Zodiac Jandy Tank Adapter with O-Ring | R0552000
Zodiac Jandy Tank Adapter with O-Ring | R0552000
Quantity:
$30.19

6
Zodiac Jandy Tank Top CL340/CL460/DEL48 | R0554700
Zodiac Jandy Tank Top CL340/CL460/DEL48 | R0554700
Quantity:
$425.35

7
Zodiac Top Spacer for DE Grids | R0359700
Zodiac Top Spacer for DE Grids | R0359700
Quantity:
$24.88

8
Zodiac Top Spacer Collar | R0405100
Zodiac Top Spacer Collar | R0405100
Quantity:
$32.52

9
Zodiac Jandy Breather Tube Assembly | R0358700
Zodiac Jandy Breather Tube Assembly | R0358700
Quantity:
$24.04

10
Zodiac Manifold Assembly Del Series | R0359000
Zodiac Manifold Assembly Del Series | R0359000
Quantity:
$97.62

11
Zodiac Tie Rod with Knob and Lock Nuts | R0554800
Zodiac Tie Rod with Knob and Lock Nuts | R0554800
Quantity:
$61.29

12
Zodiac Jandy Tank Clamp with Knob Assembly | R0357400
Zodiac Jandy Tank Clamp with Knob Assembly | R0357400
Quantity:
$280.71

13
Zodiac Jandy Clamp Ring Knob Assembly | R0357500
Zodiac Jandy Clamp Ring Knob Assembly | R0357500
Quantity:
$87.98

14
Zodiac Jandy Filter Tank O-Ring | R0357800
Zodiac Jandy Filter Tank O-Ring | R0357800
Quantity:
$56.91

15
Zodiac Jandy Outlet Tube / Elbow Assembly with O-Rings | R0555100
Zodiac Jandy Outlet Tube / Elbow Assembly with O-Rings | R0555100
Quantity:
$58.49

15A
Zodiac Jandy Outlet Tube O-Ring, Filter | R0792000
Zodiac Jandy Outlet Tube O-Ring, Filter | R0792000
Quantity:
$16.31

16
Zodiac Jandy Inlet Elbow with O-Ring | R0358400
Zodiac Jandy Inlet Elbow with O-Ring | R0358400
Quantity:
$60.21

17
Zodiac DE Grid Support | R0359500
Zodiac DE Grid Support | R0359500
Quantity:
$73.18

18
Full Size DE Grid 48 Sq Ft | 24" Universal | FG-1004 PFG2448 FC-9340
Full Size DE Grid 48 Sq Ft | 24" Universal | FG-1004 PFG2448 FC-9340
Quantity:
$28.89

18
Zodiac Full D.E. Grid Element for DEV48 | R0555000
Zodiac Full D.E. Grid Element for DEV48 | R0555000
Quantity:
$83.10

19
Partial Size DE Grid 48 Sq Ft | 24" Universal | PG-1904 PHG2448 FC-9440
Partial Size DE Grid 48 Sq Ft | 24" Universal | PG-1904 PHG2448 FC-9440
Quantity:
$33.63

19
Jandy DE Grid Short Span for DEV48 | R0554900
Jandy DE Grid Short Span for DEV48 | R0554900
Quantity:
$78.45

N/S
Complete Grid Set for 48 Sq Ft Filters | 24" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS2448 FC-9540 DGS-1124
Complete Grid Set for 48 Sq Ft Filters | 24" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS2448 FC-9540 DGS-1124
Quantity:
$99.00

N/S
Jandy Complete Set of DEV48 Filter Grids | R0442700
Jandy Complete Set of DEV48 Filter Grids | R0442700
Quantity:
$485.98

20
Zodiac Tie Rod Knob for Del Series | R0359400
Zodiac Tie Rod Knob for Del Series | R0359400
Quantity:
$21.69

21
Zodiac Jandy Large Tank Retaining Ring | R0405200
Zodiac Jandy Large Tank Retaining Ring | R0405200
Quantity:
$88.67

23
Zodiac Jandy Tank Bottom Assembly | R0466500
Zodiac Jandy Tank Bottom Assembly | R0466500
Quantity:
$571.82

24
Zodiac Jandy Bulkhead Assembly with O-Ring | R0465600
Zodiac Jandy Bulkhead Assembly with O-Ring | R0465600
Quantity:
$72.32

25
Zodiac Jandy Filter Anchor Brackets | 4-Set | R0465500
Zodiac Jandy Filter Anchor Brackets | 4-Set | R0465500
Quantity:
$98.64

26
Zodiac Jandy Tailpiece Cap & Union Nut Set | 3-Set | R0461800
Zodiac Jandy Tailpiece Cap & Union Nut Set | 3-Set | R0461800
Quantity:
$95.76

29
Zodiac Jandy Universal Half Union Kit | R0522900
Zodiac Jandy Universal Half Union Kit | R0522900
Quantity:
$33.83

30
Zodiac Jandy Drain Cap Assembly Kit | R0523000
Zodiac Jandy Drain Cap Assembly Kit | R0523000
Quantity:
$30.39

31
Jandy Complete Grid Assembly DEV/DEL 48 | R0501300
Jandy Complete Grid Assembly DEV/DEL 48 | R0501300
Quantity:
$365.83

N/A
Zodiac Jandy O-Ring Replacement Kit | R0358000
Zodiac Jandy O-Ring Replacement Kit | R0358000
Quantity:
$30.88
