Home Pool Swimming Pool & Spa Pumps Jandy Pool & Spa Pumps Jandy FloPro Medium Head Pump | .75HP Up-Rated | 115V/230V | FHPM.75 Parts

Jandy FloPro Medium Head Pump | .75HP Up-Rated | 115V/230V | FHPM.75 Parts

Back to Product

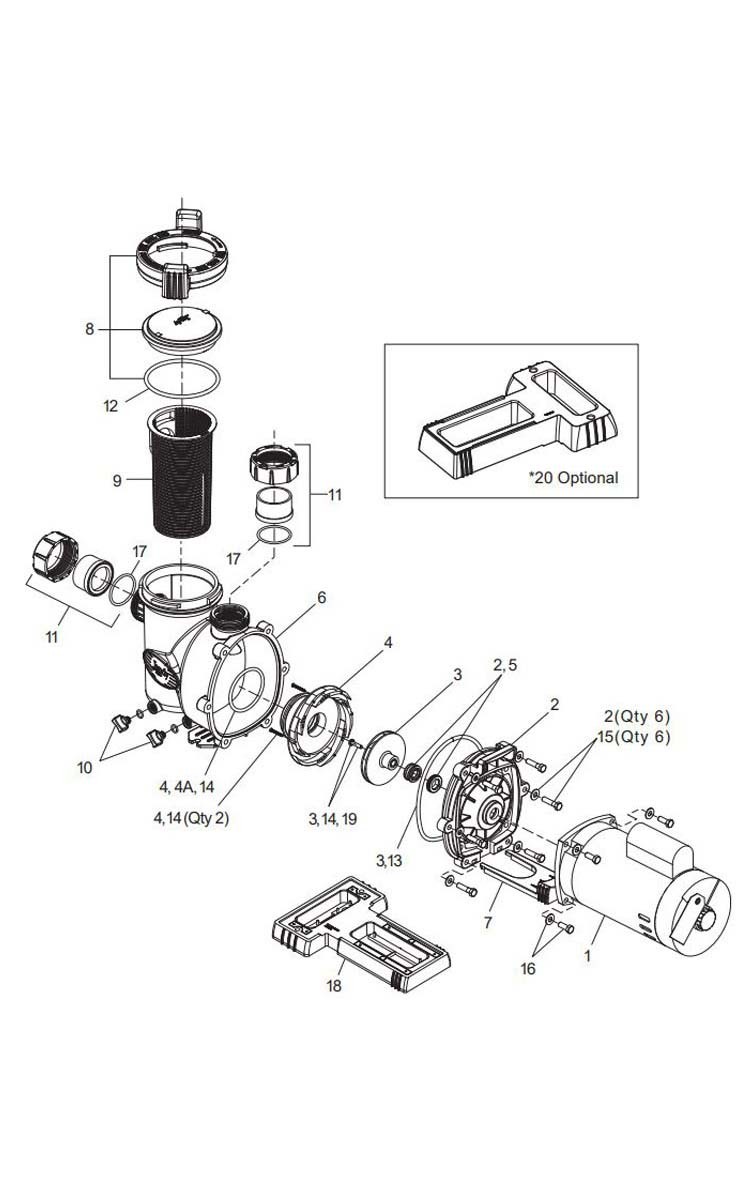

Jandy FloPro Medium Head Pump | .75HP Up-Rated | 115V/230V | FHPM.75 Parts Schematic
1
Jandy Square Flange Motor | .75HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479310
Jandy Square Flange Motor | .75HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479310
Quantity:
$376.73

1
Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 0.5HP Full Rated 0.75HP Up Rated | R0479310 | EB846 | EB852 | B2846 | B2852 | ASB846
Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 0.5HP Full Rated 0.75HP Up Rated | R0479310 | EB846 | EB852 | B2846 | B2852 | ASB846
Quantity:
$200.40

2
Jandy FloPro FHPM Series Backplate Kit | R0479500
Jandy FloPro FHPM Series Backplate Kit | R0479500
Quantity:
$95.27

3
Jandy .75HP Impeller FHPM Kit with Screw & O-Ring | R0479601
Jandy .75HP Impeller FHPM Kit with Screw & O-Ring | R0479601
Quantity:
$54.26

4
Jandy .75-1HP FHPM Diffuser Kit | R0479702
Jandy .75-1HP FHPM Diffuser Kit | R0479702
Quantity:
$51.18

4A
Jandy SHP/FHP Diffuser O-Ring | R0622000
Jandy SHP/FHP Diffuser O-Ring | R0622000
This item has been discontinued.

5
Jandy Mechanical Shaft Seal | R0479400
Jandy Mechanical Shaft Seal | R0479400
Quantity:
$31.84

6
Jandy FHPM Pump Body | R0479800
Jandy FHPM Pump Body | R0479800
Quantity:
$214.21

7
Zodiac Motor Mounting Foot Replacement for Zodiac VS FloPro Series Pump | R0479900
Zodiac Motor Mounting Foot Replacement for Zodiac VS FloPro Series Pump | R0479900
Quantity:
$30.82

8
Jandy Lid with Locking Ring Assembly | R0480000
Jandy Lid with Locking Ring Assembly | R0480000
Quantity:
$77.98

9
Jandy Pump Strainer Basket FHPM Models | R0480100
Jandy Pump Strainer Basket FHPM Models | R0480100
Quantity:
$28.07

10
Jandy Drain Plug Kit | R0446000
Jandy Drain Plug Kit | R0446000
Quantity:
$18.11

11
Jandy Tailpiece & Union Nut Kit | R0327301
Jandy Tailpiece & Union Nut Kit | R0327301
Quantity:
$46.03

12
Jandy FHP Strainer Cover O-Ring | R0480200
Jandy FHP Strainer Cover O-Ring | R0480200
Quantity:
$17.88

13
Jandy FHP Backplate O-Ring | R0480300
Jandy FHP Backplate O-Ring | R0480300
Quantity:
$16.24

14
Jandy FHP Diffuser/Impeller Hardware Kit | R0480400
Jandy FHP Diffuser/Impeller Hardware Kit | R0480400
Quantity:
$36.42

15
Jandy Pro Series Backplate Hardware FHP VS-FHP | R0480500
Jandy Pro Series Backplate Hardware FHP VS-FHP | R0480500
Quantity:
$48.44

16
Jandy Motor Hardware Kit | R0446700
Jandy Motor Hardware Kit | R0446700
Quantity:
$38.44

17
Jandy Tailpiece O-ring | 2-Pack | R0337600
Jandy Tailpiece O-ring | 2-Pack | R0337600
Quantity:
$10.79

18
Jandy Base Spacer FHP VS-FHP Small | R0486700
Jandy Base Spacer FHP VS-FHP Small | R0486700
Quantity:
$43.46

19
Jandy SHPF/SHPM/PHPF/PHPM Impeller Screw with O-Ring | R0515400
Jandy SHPF/SHPM/PHPF/PHPM Impeller Screw with O-Ring | R0515400
Quantity:
$14.65

20
Jandy Base Spacer FHP VS-FHP | Large | R0546400
Jandy Base Spacer FHP VS-FHP | Large | R0546400
Quantity:
$38.56
