Home Pentair SMBW4036 Fiberglass D.E. Filter | 35 Square Feet with Built-In Backwash Valve | 011554 Parts

Pentair SMBW4036 Fiberglass D.E. Filter | 35 Square Feet with Built-In Backwash Valve | 011554 Parts

Back to Product

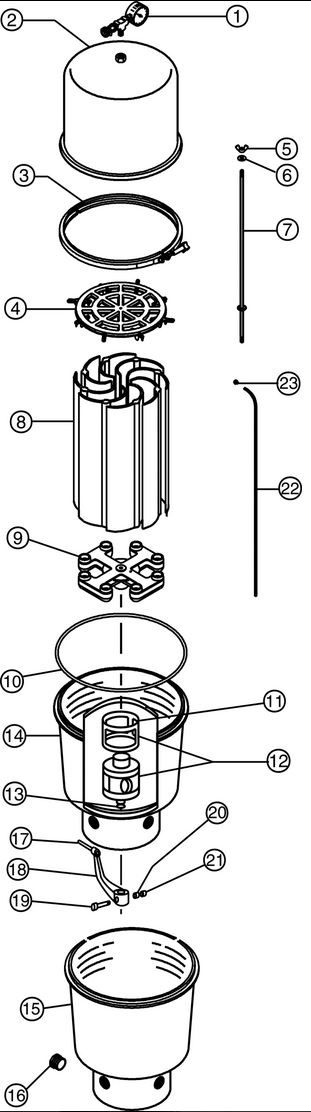

Pentair SMBW4036 Fiberglass D.E. Filter | 35 Square Feet with Built-In Backwash Valve | 011554 Parts Schematic
1
Pentair P30575 Tee 1/4" CFM/CFW Filters | Brass | 071982
Pentair P30575 Tee 1/4" CFM/CFW Filters | Brass | 071982
Quantity:
$18.04

1
Pentair P23128 Nipple 1/4" CFM Filter | Plastic | 071390
Pentair P23128 Nipple 1/4" CFM Filter | Plastic | 071390
Quantity:
$10.96

1
Pentair Valve Air Release 1/4" NPT | 075207
Pentair Valve Air Release 1/4" NPT | 075207
A Replacement is available for this item.
This item has been discontinued.

1
Pentair Manual Air Relief Assembly | Black | 273550
Pentair Manual Air Relief Assembly | Black | 273550
Quantity:
$99.40

1
Pentair Bulkhead Nut 2" | 154412
Pentair Bulkhead Nut 2" | 154412
Quantity:
$14.94

1
Pentair High Flow Air Relief Assembly | Twist Type | Includes Pressure Gauge | 98209800
Pentair High Flow Air Relief Assembly | Twist Type | Includes Pressure Gauge | 98209800
Quantity:
$38.17

1
Pentair OEM Pressure Gauge with Indicator | 190059 | 190059Z
Pentair OEM Pressure Gauge with Indicator | 190059 | 190059Z
Quantity:
$50.77

2
PENTAIR 197135 WHITE TANK LID CFM180 & SM/SMBW4036
PENTAIR 197135 WHITE TANK LID CFM180 & SM/SMBW4036
This item has been discontinued.

3
Pentair Purex Stainless Steel Filter Clamp T-Bolt 1/4"-20x3-1/2" P02810 | 070428Z
Pentair Purex Stainless Steel Filter Clamp T-Bolt 1/4"-20x3-1/2" P02810 | 070428Z
Quantity:
$17.66

3
Pentair Plastic Knob Older WhisperFlo Pump CFM-CFW-SMBW Filters Before 11-98 | 071136Z
Pentair Plastic Knob Older WhisperFlo Pump CFM-CFW-SMBW Filters Before 11-98 | 071136Z
Quantity:
$29.64

3
Pentair Clamp Ring Assy 4000 Series | 197020
Pentair Clamp Ring Assy 4000 Series | 197020
Quantity:
$293.07

4
Purex Pentair Val-Pak Top Holding Wheel for 2000 and 4000 Series Filters 071019 P12850 | V20-318
Purex Pentair Val-Pak Top Holding Wheel for 2000 and 4000 Series Filters 071019 P12850 | V20-318
Quantity:
$34.93

5
Pentair P23700 Wing Nut 1/4"-20 | Stainless Steel | 071404Z
Pentair P23700 Wing Nut 1/4"-20 | Stainless Steel | 071404Z
Quantity:
$19.57

6
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Quantity:
$5.02

7
Pentair Center Rod Staked BW2036/4036 | 72869
Pentair Center Rod Staked BW2036/4036 | 72869
Quantity:
$41.33

8
Pentair Purex SM and SMBW Full Size DE Grid | 18" 36 Sq Ft | 8 Required | 074923
Pentair Purex SM and SMBW Full Size DE Grid | 18" 36 Sq Ft | 8 Required | 074923
Quantity:
$38.06

8
Purex Replacement for 36 Sq Ft Filters | 19-3/8" Tall Grids for Bottom Manifold Filters | 074923 FG-9230 PXG1836 FC-9230
Purex Replacement for 36 Sq Ft Filters | 19-3/8" Tall Grids for Bottom Manifold Filters | 074923 FG-9230 PXG1836 FC-9230
Quantity:
$19.75

9
Pentair Bottom Manifold 8-Hold 2000 & 4000 Series Filters | S18600 073270Z
Pentair Bottom Manifold 8-Hold 2000 & 4000 Series Filters | S18600 073270Z
Quantity:
$32.63

10
Tank O-Ring for Purex Pentair CF & SMBW 4000 Series Filter 071439 | O-333-9
Tank O-Ring for Purex Pentair CF & SMBW 4000 Series Filter 071439 | O-333-9
Quantity:
$15.12

10
Pentair Purex OEM Tank O-Ring for CF and SMBW 4000 Series Filter | 071439
Pentair Purex OEM Tank O-Ring for CF and SMBW 4000 Series Filter | 071439
Quantity:
$69.73

11
Pentair Seal for Backwash Rotor Valve Tapered P28056 | 071720
Pentair Seal for Backwash Rotor Valve Tapered P28056 | 071720
Quantity:
$26.48

12
Pentair Rotor with Tapered Seal | Noryl | S19356 073370
Pentair Rotor with Tapered Seal | Noryl | S19356 073370
Quantity:
$137.17

13
Pentair HiFlow Multiport Valve Replacement Parts | Buna-N Rotor Shaft O-Ring | 2-Pack | JV18
Pentair HiFlow Multiport Valve Replacement Parts | Buna-N Rotor Shaft O-Ring | 2-Pack | JV18
Quantity:
$3.97

14
Pentair Tank Bottom for SMBW Series Filters | Includes Backwash Valve Rotor | 197130
Pentair Tank Bottom for SMBW Series Filters | Includes Backwash Valve Rotor | 197130
Quantity:
$511.22

15
Pentair Bottom Tank SM4000 & CFM Filters | 197126
Pentair Bottom Tank SM4000 & CFM Filters | 197126
Quantity:
$456.83

18
Pentair Handle Extension | Brass | 070971
Pentair Handle Extension | Brass | 070971
Quantity:
$142.46

19
Pentair Stainless Steel Handle Stud Bolt 1/4"-20x1-3/4" P12176 | 070979
Pentair Stainless Steel Handle Stud Bolt 1/4"-20x1-3/4" P12176 | 070979
Quantity:
$4.07

20
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Quantity:
$1.21

21
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.62

23
Pentair Old Style Air Relief Screen Cap | 154578
Pentair Old Style Air Relief Screen Cap | 154578
Quantity:
$20.34
