Home Pentair SMBW4060 Fiberglass D.E. Filter | 58 Square Feet with Built-In Backwash Valve | 147411 Parts

Pentair SMBW4060 Fiberglass D.E. Filter | 58 Square Feet with Built-In Backwash Valve | 147411 Parts

Back to Product

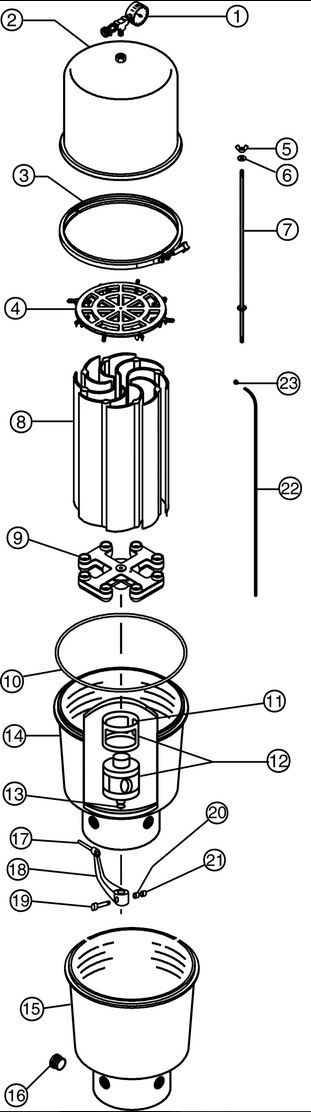

Pentair SMBW4060 Fiberglass D.E. Filter | 58 Square Feet with Built-In Backwash Valve | 147411 Parts Schematic
1
Pentair P30575 Tee 1/4" CFM/CFW Filters | Brass | 071982
Pentair P30575 Tee 1/4" CFM/CFW Filters | Brass | 071982
Quantity:
$17.44

1
Pentair P23128 Nipple 1/4" CFM Filter | Plastic | 071390
Pentair P23128 Nipple 1/4" CFM Filter | Plastic | 071390
Quantity:
$10.54

1
Pentair Manual Air Relief Assembly | Black | 273550
Pentair Manual Air Relief Assembly | Black | 273550
Quantity:
$95.93

1
Pentair Bulkhead Nut 2" | 154412
Pentair Bulkhead Nut 2" | 154412
Quantity:
$14.41

1
Pentair High Flow Air Relief Assembly | Twist Type | Includes Pressure Gauge | 98209800
Pentair High Flow Air Relief Assembly | Twist Type | Includes Pressure Gauge | 98209800
Quantity:
$37.49

1
Pentair OEM Pressure Gauge with Indicator | 190059 | 190059Z
Pentair OEM Pressure Gauge with Indicator | 190059 | 190059Z
Quantity:
$48.99

1
Pentair Filter Valve & Gauge Assembly | 075320
Pentair Filter Valve & Gauge Assembly | 075320
Quantity:
$90.05

2
Pentair Replacement Tank Lid for SMBW4060 | 197137
Pentair Replacement Tank Lid for SMBW4060 | 197137
Quantity:
$600.26

3
Pentair Purex Stainless Steel Filter Clamp T-Bolt 1/4"-20x3-1/2" P02810 | 070428Z
Pentair Purex Stainless Steel Filter Clamp T-Bolt 1/4"-20x3-1/2" P02810 | 070428Z
Quantity:
$17.02

3
Pentair Clamp Ring Assy 4000 Series | 197020
Pentair Clamp Ring Assy 4000 Series | 197020
Quantity:
$286.61

3
Pentair Plastic Knob Older WhisperFlo Pump CFM-CFW-SMBW Filters Before 11-98 | 071136Z
Pentair Plastic Knob Older WhisperFlo Pump CFM-CFW-SMBW Filters Before 11-98 | 071136Z
Quantity:
$28.62

4
Purex Pentair Val-Pak Top Holding Wheel for 2000 and 4000 Series Filters 071019 P12850 | V20-318
Purex Pentair Val-Pak Top Holding Wheel for 2000 and 4000 Series Filters 071019 P12850 | V20-318
Quantity:
$34.93

5
Pentair P23700 Wing Nut 1/4"-20 | Stainless Steel | 071404Z
Pentair P23700 Wing Nut 1/4"-20 | Stainless Steel | 071404Z
Quantity:
$18.88

6
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Quantity:
$4.82

7
Pentair Center Staked Rod 39" | White | 072867
Pentair Center Staked Rod 39" | White | 072867
Quantity:
$43.55

8
Pentair Purex SM and SMBW Full Size DE Grid | 30" 60 Sq Ft | 8 Required | 074925
Pentair Purex SM and SMBW Full Size DE Grid | 30" 60 Sq Ft | 8 Required | 074925
Quantity:
$50.30

8
Purex Replacement for 60 Sq Ft Filters | 31-5/16" Tall Grids for Bottom Manifold Filters | 074925 FG-1260 PXG3060 FC-9250
Purex Replacement for 60 Sq Ft Filters | 31-5/16" Tall Grids for Bottom Manifold Filters | 074925 FG-1260 PXG3060 FC-9250
Quantity:
$29.12

9
Pentair Bottom Manifold 8-Hold 2000 & 4000 Series Filters | S18600 073270Z
Pentair Bottom Manifold 8-Hold 2000 & 4000 Series Filters | S18600 073270Z
Quantity:
$33.28

10
Pentair Purex OEM Tank O-Ring for CF and SMBW 4000 Series Filter | 071439
Pentair Purex OEM Tank O-Ring for CF and SMBW 4000 Series Filter | 071439
Quantity:
$67.29

10
Tank O-Ring for Purex Pentair CF & SMBW 4000 Series Filter 071439 | O-333-9
Tank O-Ring for Purex Pentair CF & SMBW 4000 Series Filter 071439 | O-333-9
Quantity:
$15.12

11
Pentair Seal for Backwash Rotor Valve Tapered P28056 | 071720
Pentair Seal for Backwash Rotor Valve Tapered P28056 | 071720
Quantity:
$26.34

12
Pentair Rotor with Tapered Seal | Noryl | S19356 073370
Pentair Rotor with Tapered Seal | Noryl | S19356 073370
Quantity:
$136.69

13
Pentair HiFlow Multiport Valve Replacement Parts | Buna-N Rotor Shaft O-Ring | 2-Pack | JV18
Pentair HiFlow Multiport Valve Replacement Parts | Buna-N Rotor Shaft O-Ring | 2-Pack | JV18
Quantity:
$4.32

14
Pentair Tank Bottom for SMBW Series Filters | Includes Backwash Valve Rotor | 197130
Pentair Tank Bottom for SMBW Series Filters | Includes Backwash Valve Rotor | 197130
Quantity:
$494.96

15
Pentair Bottom Tank SM4000 & CFM Filters | 197126
Pentair Bottom Tank SM4000 & CFM Filters | 197126
Quantity:
$456.83

18
Pentair Handle Extension | Brass | 070971
Pentair Handle Extension | Brass | 070971
Quantity:
$136.86

19
Pentair Stainless Steel Handle Stud Bolt 1/4"-20x1-3/4" P12176 | 070979
Pentair Stainless Steel Handle Stud Bolt 1/4"-20x1-3/4" P12176 | 070979
Quantity:
$4.07

20
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Quantity:
$1.21

21
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.41

22
Pentair Vent Tube 46" | 075279
Pentair Vent Tube 46" | 075279
Quantity:
$17.90

23
Pentair Old Style Air Relief Screen Cap | 154578
Pentair Old Style Air Relief Screen Cap | 154578
Quantity:
$18.51
