Home Pentair Challenger High Pressure Standard Efficiency Pool Pump | 230V 2HP Full Rated | 345218 Parts

Pentair Challenger High Pressure Standard Efficiency Pool Pump | 230V 2HP Full Rated | 345218 Parts

Back to Product

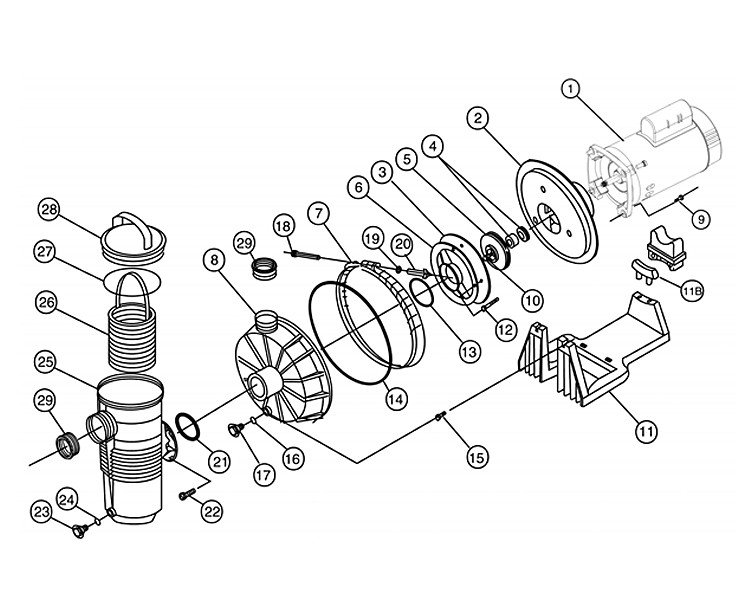

Pentair Challenger High Pressure Standard Efficiency Pool Pump | 230V 2HP Full Rated | 345218 Parts Schematic
1
Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 230V 2HP Full Rated 2.5HP Up Rated | R0479314 | EB748 | EB840 | B2748 | B2840 | ASB748
Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 230V 2HP Full Rated 2.5HP Up Rated | R0479314 | EB748 | EB840 | B2748 | B2840 | ASB748
Quantity:
$392.42

1
Pentair Challenger Power End | 230V 1.5HP | 355669
Pentair Challenger Power End | 230V 1.5HP | 355669
Quantity:
$1,028.01

2
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Quantity:
$96.65

3
Pentair Plate Mounting | 2HP Full Rate 2.5HP Up Rate | 355095
Pentair Plate Mounting | 2HP Full Rate 2.5HP Up Rate | 355095
Quantity:
$31.46

4
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$33.11

5
Pentair PacFab Challenger Impeller | 2HP Full Rate 2.5HP Up Rate | 355093
Pentair PacFab Challenger Impeller | 2HP Full Rate 2.5HP Up Rate | 355093
Quantity:
$56.22

6
Pentair Challenger Diffuser | 2HP Full Rated | 355094
Pentair Challenger Diffuser | 2HP Full Rated | 355094
Quantity:
$44.16

7
Pentair Band Clamp Assembly Complete | 355320
Pentair Band Clamp Assembly Complete | 355320
Quantity:
$83.33

8
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Quantity:
$140.08

8
Pentair Challenger Front Housing | Almond | 355469
Pentair Challenger Front Housing | Almond | 355469
Quantity:
$139.00

9
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.82

10
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.21

11
Pentair Challenger Pump Base | 355305
Pentair Challenger Pump Base | 355305
Quantity:
$49.05

12
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Quantity:
$4.20

13
Pentair Waterfall/Challenger Pump Diffuser O-Ring | 355331 | 355331Z
Pentair Waterfall/Challenger Pump Diffuser O-Ring | 355331 | 355331Z
Quantity:
$6.72

14
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Quantity:
$22.22

16
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

17
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$18.64

18
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Quantity:
$15.81

19
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Quantity:
$4.88

20
Pentair Band Clamp Assembly Knob | 174882
Pentair Band Clamp Assembly Knob | 174882
Quantity:
$37.93

21
Pentair Strainer Pot Flange O-Ring | 355330
Pentair Strainer Pot Flange O-Ring | 355330
Quantity:
$4.80

22
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Quantity:
$5.84

23
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$18.64

24
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

25
Pentair Challenger Strainer Pot | 355300
Pentair Challenger Strainer Pot | 355300
This item is currently out of stock.

26
Pentair Challenger Strainer Basket | Stainless Steel | 355441
Pentair Challenger Strainer Basket | Stainless Steel | 355441
Quantity:
$169.58

27
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.58

28
Pentair Strainer Pot Lid | Chemical Resistant | 354112
Pentair Strainer Pot Lid | Chemical Resistant | 354112
Quantity:
$62.87

28
Pentair Challenger Strainer Cover | Clear | 355301
Pentair Challenger Strainer Cover | Clear | 355301
Quantity:
$62.87

29
Pentair Bushing Reducer | 2 Pack | 552377
Pentair Bushing Reducer | 2 Pack | 552377
Quantity:
$19.14

N/S
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Quantity:
$31.77

N/S
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Quantity:
$104.24

N/S
Pentair Challenger Front Housing Assembly | Threaded Suction | Black | 355302
Pentair Challenger Front Housing Assembly | Threaded Suction | Black | 355302
Quantity:
$181.56

N/S
Pentair Pot Assembly with Basket | Stainless Steel Basket | Black | 357391
Pentair Pot Assembly with Basket | Stainless Steel Basket | Black | 357391
Quantity:
$561.11
