Home Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 230V 2HP Full Rated 2.5HP Up Rated | R0479314 | EB748 | EB840 | B2748 | B2840 | ASB748
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

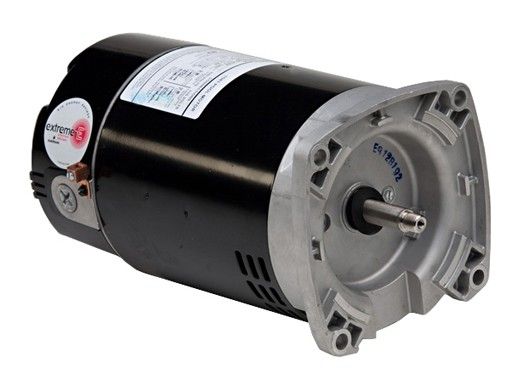

Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 230V 2HP Full Rated 2.5HP Up Rated | R0479314 | EB748 | EB840 | B2748 | B2840 | ASB748

Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 230V 2HP Full Rated 2.5HP Up Rated | R0479314 | EB748 | EB840 | B2748 | B2840 | ASB748
$322.52

Quantity:
Shipping Flat Rate Shipping $29.95
Platinum Preferred Manufacturer
  • Switchless Design
  • 6.5" Frame Diameter
  • Open Drip Proof
  • Double Sealed Ball Bearings

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair Challenger High Pressure Energy Efficient Pool Pump | 208/230V 2HP Full Rated | 345208
Pentair Challenger High Pressure Energy Efficient Pool Pump | 208/230V 2HP Full Rated | 345208
Replacement Parts

Sta-Rite SuperMax 2HP Standard Efficiency Pool Pump 115-230V | PHK2RA6G-104L
Sta-Rite SuperMax 2HP
Standard Efficiency Pool Pump 115/230V | PHK2RA6G-104L
Replacement Parts

Hayward Max-Flo II Uprated Pool Pump | 2HP 115V 230V | SP2715X20
Hayward Max-Flo II Uprated Pump - 2HP 115V/230V | SP2715X20
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Double Sealed Ball Bearing
  • Continuous Duty
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 13.74
  • Weight: 33
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 230
Frequency 60 Hz
Amps 11.5
Service Factor
THP 2.60
RPM 3450
Shaft Type Threaded
Rotation CW Lead End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
2 HP
Speed
1 Speed
Voltage
230 V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions
Where is the shaft seal for this unit?
Bryan D on Oct 5, 2021
Will this work to replace: u.s. motors, Model K63CXEAR-5222, 1081 pool motor, 2 HP, 56Y frame, RPM 3450, 230/115?
Bryan D on Oct 5, 2021
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Best deal
It's a direct replacement for a square flange 2hp.You won't have any problems installing it.This is the best deal I could find online. Thanks.
June 3, 2017
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
