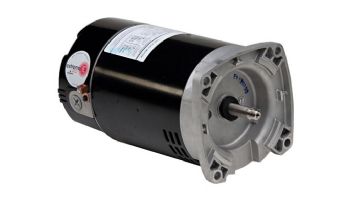

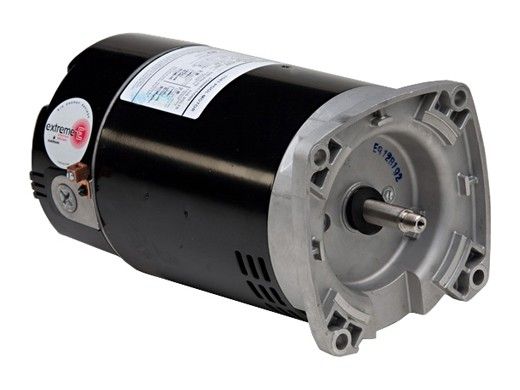

Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 1HP Full Rated 1.5HP Up Rated | R0479312 | EB848 | EB854 | B2848 | B2854 | ASB848

Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 1HP Full Rated 1.5HP Up Rated | R0479312 | EB848 | EB854 | B2848 | B2854 | ASB848
$198.02

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Switchless Design
  • 6.5" Frame Diameter
  • Open Drip Proof
  • Double Sealed Ball Bearings

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair Challenger High Pressure Energy Efficient Pool Pump | 115/230V 1HP Full Rated | 345205
Pentair Challenger High Pressure Energy Efficient Pool Pump | 115/230V 1HP Full Rated | 345205
Replacement Parts

Pentair Challenger High Pressure Standard Efficiency Pool Pump | 115/230V 1HP Full Rated | 345204
Pentair Challenger High Pressure Standard Efficiency Pool Pump | 115/230V 1HP Full Rated | 345204
Replacement Parts

Sta-Rite SuperMax 1HP Standard Efficiency Pool Pump 115-230V | PHK2RA6E-102L
Sta-Rite SuperMax 1HP
Standard Efficiency Pool Pump 115/230V | PHK2RA6E-102L
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Double Sealed Ball Bearing
  • Continuous Duty
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 12.74
  • Weight: 26
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 7.7/15.4
Service Factor
THP 1.65
RPM 3450
Shaft Type Threaded
Rotation CW Lead End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
1 HP
Speed
1 Speed
Voltage
115/230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
I have a 1hp 1.25 SFHP is this the same motor?
A shopper on Feb 15, 2017
BEST ANSWER: No its only a 1 hp motor talk to the representative they can tell you what motor will work
REVIEWS
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
0
0
Rated 5 out of 5
Efficient
This is the direct replacement for our pump and we received it in no time! Thank you for being this efficient.
January 2, 2014
Rated 5 out of 5
Swimming again!
Very good replacement motor for my pool pump.It was easy to install and is functioning.Thanks for a great product and price<br>
July 5, 2015
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
