Jandy MaxHP Uprated Pump | 1.5HP 115V/230V | MHPM1.5 Parts

Back to Product

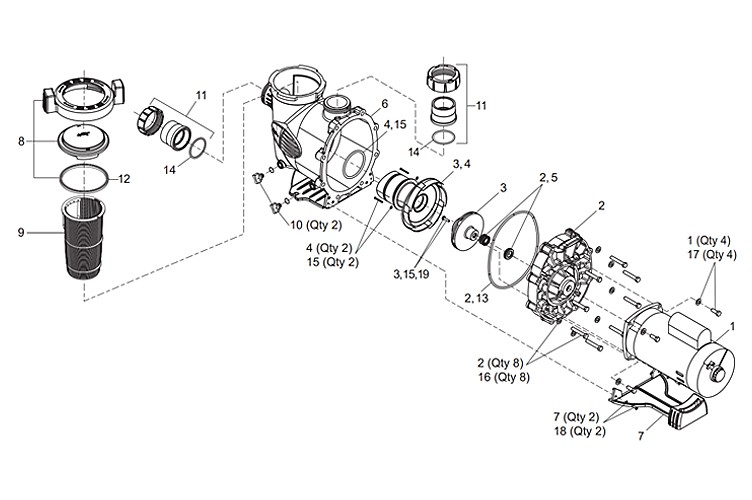

Jandy MaxHP Uprated Pump | 1.5HP 115V/230V | MHPM1.5 Parts Schematic
1
Jandy Square Flange Motor | 1.5HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479312
Jandy Square Flange Motor | 1.5HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479312
Quantity:
$450.79

1
Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 1HP Full Rated 1.5HP Up Rated | R0479312 | EB848 | EB854 | B2848 | B2854 | ASB848
Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 1HP Full Rated 1.5HP Up Rated | R0479312 | EB848 | EB854 | B2848 | B2854 | ASB848
Quantity:
$242.47

2
Jandy Backplate Kit | R0445200
Jandy Backplate Kit | R0445200
Quantity:
$155.52

3
Zodiac 1.5HP Impeller and Diffuser Kit | R0449503
Zodiac 1.5HP Impeller and Diffuser Kit | R0449503
This item has been discontinued.

4
Jandy .5HP-3HP FR SHP/ PHP Diffuser with Hardware | R0445400
Jandy .5HP-3HP FR SHP/ PHP Diffuser with Hardware | R0445400
Quantity:
$62.79

5
Jandy Mechanical Shaft Seal | R0479400
Jandy Mechanical Shaft Seal | R0479400
Quantity:
$32.20

6
Jandy MHPM Pump Body | R0448701
Jandy MHPM Pump Body | R0448701
Quantity:
$278.94

7
Jandy Motor Mounting Foot Assembly | R0445700
Jandy Motor Mounting Foot Assembly | R0445700
Quantity:
$51.72

8
Zodiac Jandy Strainer Cover Kit | R0448800
Zodiac Jandy Strainer Cover Kit | R0448800
Quantity:
$67.70

9
Jandy Filter Basket | R0448900
Jandy Filter Basket | R0448900
Quantity:
$27.37

10
Jandy Drain Plug Kit | R0446000
Jandy Drain Plug Kit | R0446000
Quantity:
$17.35

11
Zodiac Tail Piece Kit | R0449000
Zodiac Tail Piece Kit | R0449000
Quantity:
$45.24

12
Jandy Lid Seal with O-Ring | R0449100
Jandy Lid Seal with O-Ring | R0449100
Quantity:
$23.86

13
Jandy Backplate O-Ring | R0446300
Jandy Backplate O-Ring | R0446300
Quantity:
$18.35

14
Jandy Tail Piece O-Ring | 2-Pack | R0449200
Jandy Tail Piece O-Ring | 2-Pack | R0449200
Quantity:
$11.38

15
Jandy Diffuser & Impeller Hardware Kit | R0446500
Jandy Diffuser & Impeller Hardware Kit | R0446500
Quantity:
$33.45

16
Jandy Backplate Hardware Kit | R0446600
Jandy Backplate Hardware Kit | R0446600
Quantity:
$66.00

17
Jandy Motor Hardware Kit | R0446700
Jandy Motor Hardware Kit | R0446700
Quantity:
$37.41

18
Jandy Motor Foot Mounting Hardware | Set of 2 | R0446800
Jandy Motor Foot Mounting Hardware | Set of 2 | R0446800
Quantity:
$19.88
