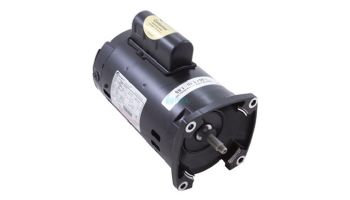

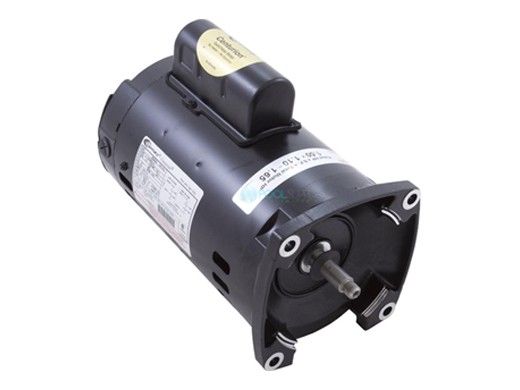

Home Jandy Square Flange Motor | 1.5HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479312

Jandy Square Flange Motor | 1.5HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479312

This item is no longer available.
Jandy Square Flange Motor | 1.5HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479312
Single Speed 1.5HP Motor & Hardware

For use with: Jandy® Pro Series PlusHP PHPM1.5, FloPro™ FHPM1.5, Water Feature Series WFTR120 1.5 HP & MaxHP Series MHPM 1.5 HP Pump

Specifications:
Type Standard Efficient
Rating Up-Rated
Speed Single
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60Hz
Amps 16/8
HP 1.5
Service Factor 1.10
THP 1.65
RPM 3450
Shaft Type Threaded
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.
